5. IR Control

The IR receivers and emitters can be connected to the system to allow for IR control of
remote devices. The bidirectional IR feature provides the two-way control either for the
source or display device(s). Use the following sample connection diagrams to connect
for IR remote control.

5.1 Controlling the Display Device by IR IN

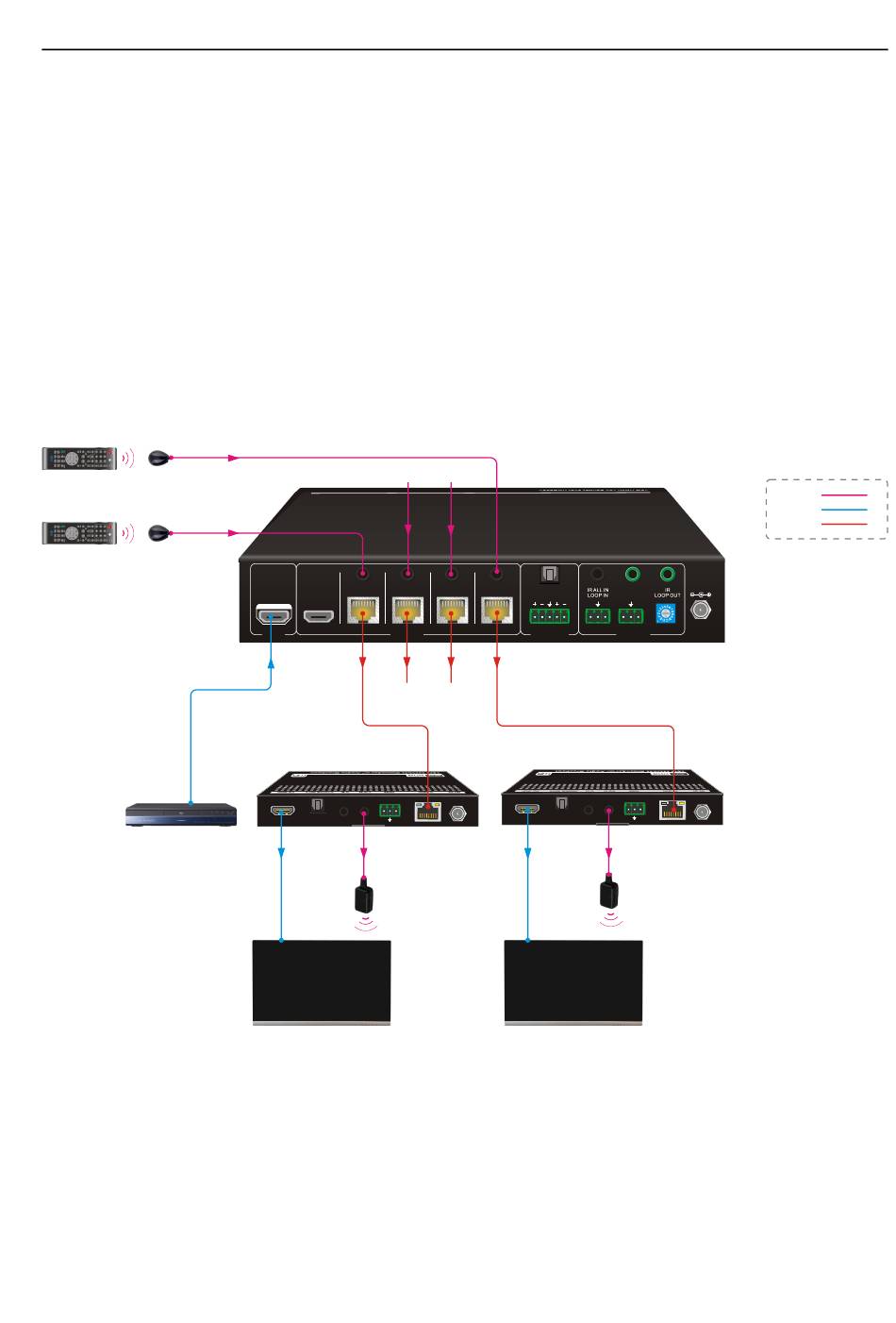

The four IR IN ports of the splitter can receive IR signals from remotes to send to
control displays. Connect four IR receiver to IR IN ports of the splitter, and then
connect four IR emitters to IR OUT ports on HDBaseT receivers.
IR Receiver
T -1 Remote
V
T -4 Remote
IR Receiver
V
DVD
1x4 HDBaseT Splitter Kit
IR IN
IR IN
HDBT 1
HDBT 2
HDMI
HDMI
INPUT
OUTPUTS
1080P 70M
4K 40M
HDCP
Tx
Rx
Receiver
IR
Emitter
4K TV-1
IR IN
IR IN
SPDIF
Tx
Rx
HDBT 3
HDBT 4
L
R
RS232 IN
AUDIO OUT
1080P 70M
4K 40M
LINK
IR
Emitter
4K TV-4
11
IR OUT
Tx
Rx
RS232 OUT
ID PRESET
DC 24V
CONTROL
HDCP
LINK
Tx
Rx
Receiver
IR:
IR:
HDMI:
HDMI:
HDBT:
HDBT:
