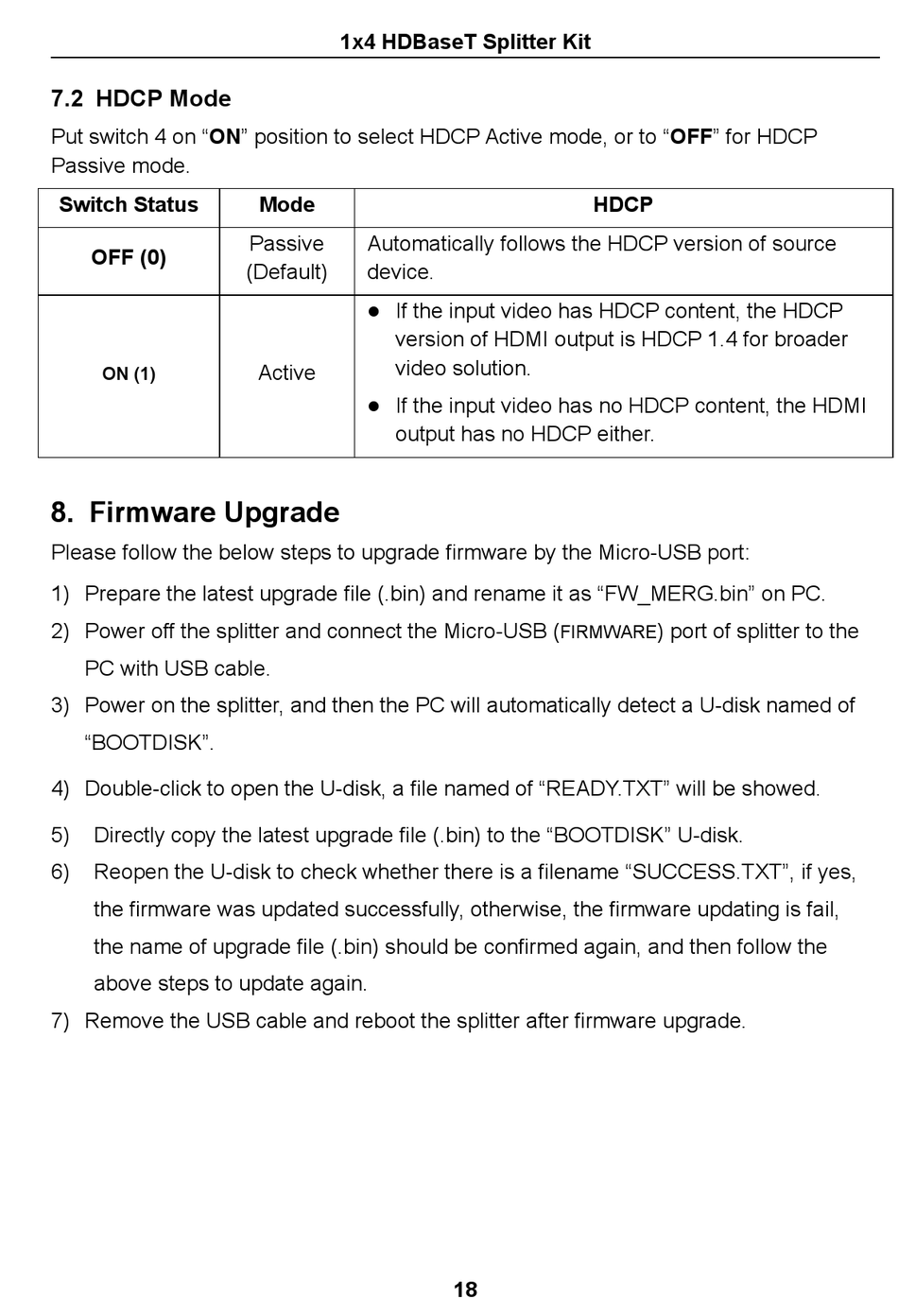

7.2 HDCP Mode

Put switch 4 on "ON" position to select HDCP Active mode, or to "OFF" for HDCP
Passive mode.
Switch Status
OFF (0)
ON (1)

8. Firmware Upgrade

Please follow the below steps to upgrade firmware by the Micro-USB port:
1) Prepare the latest upgrade file (.bin) and rename it as "FW_MERG.bin" on PC.
2) Power off the splitter and connect the Micro-USB (
PC with USB cable.
3) Power on the splitter, and then the PC will automatically detect a U-disk named of
"BOOTDISK".
4) Double-click to open the U-disk, a file named of "READY.TXT" will be showed.
5) Directly copy the latest upgrade file (.bin) to the "BOOTDISK" U-disk.
6) Reopen the U-disk to check whether there is a filename "SUCCESS.TXT", if yes,
the firmware was updated successfully, otherwise, the firmware updating is fail,
the name of upgrade file (.bin) should be confirmed again, and then follow the
above steps to update again.
7) Remove the USB cable and reboot the splitter after firmware upgrade.
1x4 HDBaseT Splitter Kit
Mode
Passive Automatically follows the HDCP version of source
(Default) device.
If the input video has HDCP content, the HDCP

version of HDMI output is HDCP 1.4 for broader
video solution.
Active
If the input video has no HDCP content, the HDMI

output has no HDCP either.
HDCP
FIRMWARE
18
) port of splitter to the
