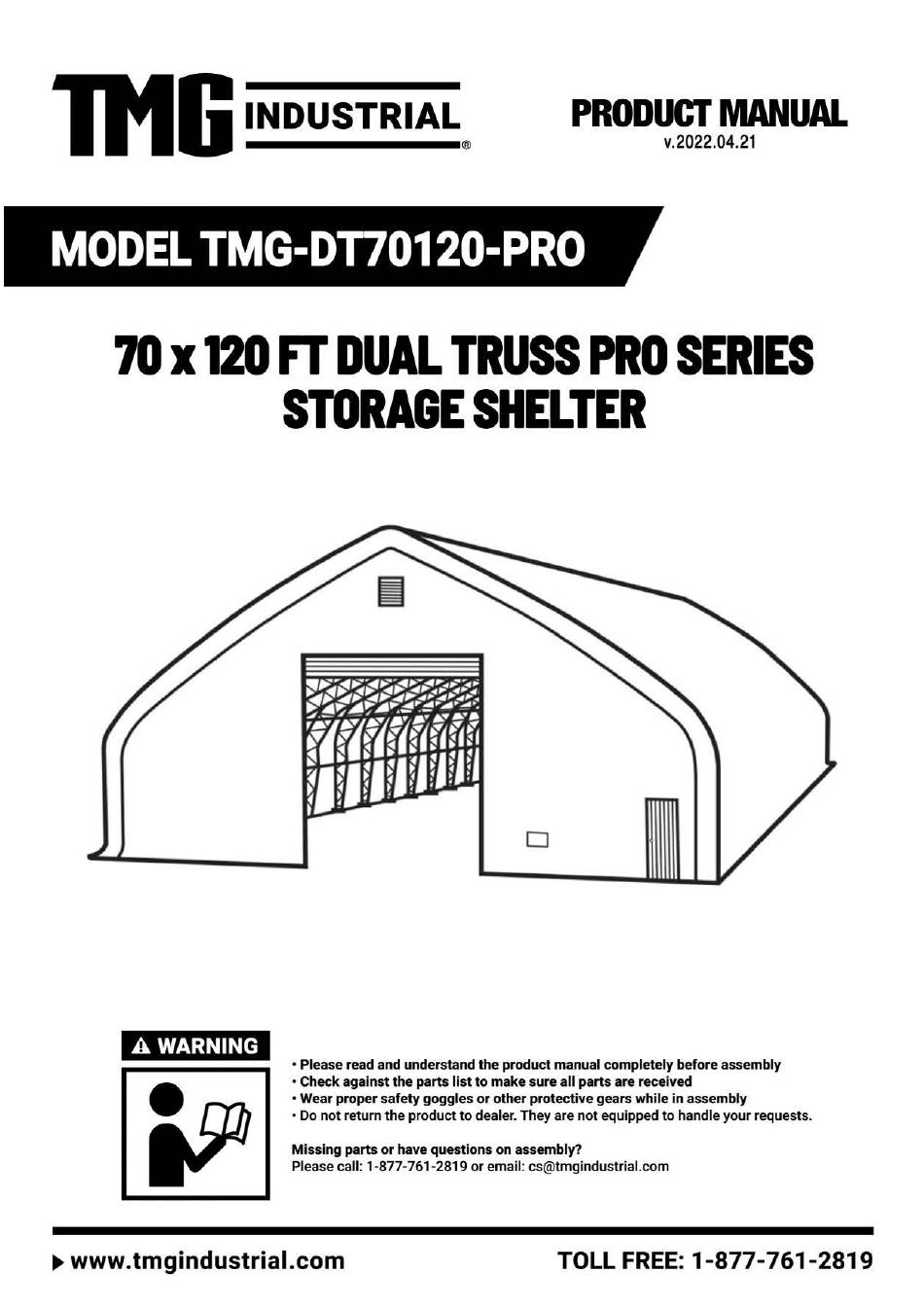

- Page 1 ► W W W . T M G I N D U S T R I A L . C O M P 0 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 2 Main Specifications : Assembly size : W21.3 x L36 x H8.5 (m) / 70ft x 118ft x 28ft Outside width : 21.3 m / 70ft, inside width : 20.3 m / 67ft, length : 36 m / 118 ft ...
- Page 3 Frame structure diagram ► W W W . T M G I N D U S T R I A L . C O M P 2 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 4 TMG-DT70120-PRO Part List Parts Graphical Description Length Code Peak arch tube Ax14 L3193mm (for middle trusses) Peak arch tube (for front and rear L3193mm trusses) Cx20 Upper and down rafter Dx20 tube(for middle L3104mm Ex16 trusses) Kx12 Upper rafter tube...
- Page 5 Roof purlin L2040mm (horizontal tube) Diagonal bracing tube L2540mm Support tube L2820mm Support tube L2820mm Baseplate for front and W280xL480mm rear truss left corners Baseplate for front and W280xL480mm rear truss right corners Baseplates W280xL430mm Left column baseplate W200xL410mm Right column W200xL410mm baseplate Baseplates...
- Page 6 Top cover tension tube L700mm (for both bottom sides) Front and rear vertical door rail L1300mm (left side upper part) Front and rear vertical door rail L1300mm (right side upper part) Column baseplate W200xL410mm Front and rear vertical door rail L2800mm (left side middle part) Front and rear vertical...
- Page 7 L2854mm Door cross beam (right) Door center vertical supporting rod for L2564mm cross beam Upper cross tubes L2702mm (left and right) Door hand winch L2244mm crossing tube Side door left tube L2200mm Side door right tube L2200mm Side door upper tube L920mm Side door W925xL2005mm...
- Page 8 Tie down straps W38xL1000mm (for #7) Cable connection plate L91mm Roll up door hand winch Wire rope for front and L25m rear door hand winch Front and rear vertical door rail connection L240mm plate Front and rear vertical door rail end plate L215mm (floatable to keep door rail straight)
- Page 9 Braided rope L180m Top cover A W18.3xL31.2m Top cover B W19xL31.2m Front and rear truss W8.9xL21.3m cover panel Front and rear roll up W5.4xL5.5m door cover panel Front and rear fabric L150mm tarp secure pin φ25mmxL4m Plastic hose Connector φ25mm (for connection #36) Scratch resistant tape L10m...
- Page 10 Step 1 : Baseplate positioning and installation. Installation diagram of expansion bolt. PART PART ► W W W . T M G I N D U S T R I A L . C O M P 9 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 11 Step 2 : Installation of front and rear 2 group trusses. PART PART 40x2 ► W W W . TMG IN DU S TRIAL .C O M P 1 0 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 12 1x17 2x17 4x17 40x17 2x17 2x17 ► W W W . TMG IN DU S TRIAL .C O M P 1 1 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 13 PART ► W W W . TMG IN DU S TRIAL .C O M P 1 2 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 14 Step 5 : Put up the front truss (It is suggested to use crane for hoisting). PART ► W W W . TMG IN DU S TRIAL .C O M P 1 3 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 15 Step 6 : Put up the 2nd truss, and connect all purlins (#5) between 1st and 2nd. PART ► W W W . TMG IN DU S TRIAL .C O M P 1 4 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 16 Step 7 : Repeat above step to put up all other trusses, and connect all purlins. PART ► W W W . TMG IN DU S TRIAL .C O M P 1 5 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 17 Installation of diagonal Purlins (The front and rear mounting methods are the same). PART ► W W W . TMG IN DU S TRIAL .C O M P 1 6 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 18 Step 9 : Tension cable installation, All cables are diagonally installed on each. PART ► W W W . TMG IN DU S TRIAL .C O M P 1 7 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 19 Step 10 : Door column installation (The front and rear mounting methods are the same). PART PART PART ► W W W . TMG IN DU S TR IAL .C O M P 1 8 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 20 Door support pipe installation (The front and rear mounting methods are the same). PART PART PART ► W W W . TMG IN DU S TR IAL .C O M P 1 9 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 21 Door support pipe installation (The front and rear mounting methods are the same). PART PART PART ► W W W . TMG IN DU S TRIAL .C O M P 2 0 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 22 Step 11-3 : Side door installation (The front and rear mounting methods are the same). PART PART PART ► W W W . TMG IN DU S TRIAL .C O M P 2 1 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 23 Step 12 : Install the waterproof plug (The front and rear mounting methods are the same). PART ► W W W . TMG IN DU S TRIAL .C O M P 2 2 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 24 PART ► W W W . TMG IN DU S TRIAL .C O M P 2 3 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 25 Step 14 : Install the door covering cloth (The front and rear mounting methods are the same). PART ► W W W . TMG IN DU S TRIAL .C O M P 2 4 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 26 Step 15 : Install the front door metal strip (The front and rear mounting methods are the same). PART ► W W W . TMG IN DU S TRIAL .C O M P 2 5 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 27 1. Door curtain installation (The front and rear mounting methods are the same). PART ► W W W . TMG IN DU S TRIAL .C O M P 2 6 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 28 2. Door curtain installation (The front and rear mounting methods are the same). PART ► W W W . TMG IN DU S TRIAL .C O M P 2 7 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 29 3. Door curtain installation (The front and rear mounting methods are the same). PART ► W W W . TMG IN DU S TRIAL .C O M P 2 8 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 30 1. Install the top cover A ( #32 ). PART ► W W W . TMG IN DU S TRIAL .C O M P 2 9 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 31 2. Install the top cover A ( #32 ). PART PART ► W W W . TMG IN DU S TRIAL .C O M P 3 0 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 32 3. Install the top cover A ( #32 ). PART ► W W W . TMG IN DU S TRIAL .C O M P 3 1 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 33 4. Install the top cover A ( #32 ). PART ► W W W . TMG IN DU S TRIAL .C O M P 3 2 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 34 1. Install the top cover B ( #33 ). PART ► W W W . TMG IN DU S TR IAL .C O M P 3 3 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 35 2. Install the top cover B ( #33 ). PART ► W W W . TMG IN DU S TRIAL .C O M P 3 4 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 36 3. Install the top cover B ( #33 ). PART ► W W W . TMG IN DU S TRIAL .C O M P 3 5 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 37 4. Install the top cover B ( #33 ). PART ► W W W . TMG IN DU S TRIAL .C O M P 3 6 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 38 5. Install the top cover B ( #33 ). PART ► W W W . TMG IN DU S TRIAL .C O M P 3 7 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 39 Step 19 : Tension both sides of the top cloth with the tension device. PART ► W W W . TMG IN DU S TRIAL .C O M P 3 8 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
- Page 40 Step 20 : Tie the rope. PART ► W W W . TMG IN DU S TRIAL .C O M P 3 9 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
-
Page 41: After The Installation
Otherwise the push from the sides toward inside will make the building collapsed at some point. ► W W W . TMG IN DU S TRIAL .C O M P 4 0 / 4 0 To ll F ree :1 -8 7 7 -7 6 1 -2 8 1 9...
