Page 2: Main Specifications

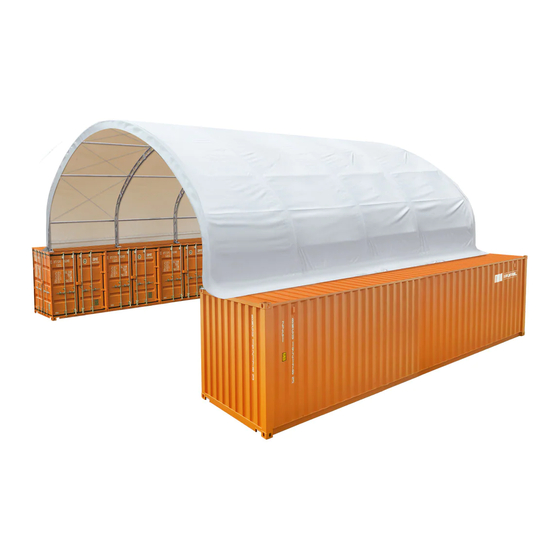

MAIN SPECIFICATIONS : Overall assembled size : W12 x L12 x H4.5(m) / W40 x L39.37 x H15 (ft) Width : 12 m / 39.37ft Length : 12 m / 39.37ft Ridge peak height : 4.5 m / 15ft + container height 2.591m/8.5 ft ... - Page 3 TMG-DT4041CF PART LIST PARTS PICTURE DESCRIPTION LENGTH CODE Peak arch tube L2509mm (for 3 middle trusses ) Peak arch tube L2509mm (for front and rear truss) Upper rafter tube L1996mm (middle truss) Upper rafter tube L1996mm (front and rear truss)
- Page 4 Baseplate for bottom tension bar W80xL200mm Top cover tension tube φ32x1993mm (for both bottom sides) φ32x500mm Ridge steel tension cables φ8x3500mm (front and rear trusses) Side vertical tube φ58xL2620mm Lower vertical tube φ58xL2640mm Middle vertical tube φ58xL2034mm Upper vertical tube φ58xL1616mm Upper vertical tube φ58xL2146mm...
- Page 5 Ratchets Tie down straps W38xL800mm (for #23 and front and rear arches) Tube clamps φ58mm Self tapping screw M5x25mm Hex bolt and nuts M12x30mm Hex bolt and nuts M10x50mm Self locking bolt and nuts M10x80mm Hex bolt and nuts M8x90mm Tension tube end water plug φ32mm Plastic hose...
- Page 6 STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SI. PARTS PARTS PART PART CODE CODE 5/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 7 STEP 2 : INSTALLATION OF FRONT AND REAR TRUSSES. PARTS PARTS PART PART CODE CODE 24x2 6/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 8 STEP 3 : STALLATION (3) MIDDLE TRUSSES. PARTS PARTS PART PART CODE CODE 24x3 7/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 9 STEP 4 : WRAP (#18) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC AND THE INTERFACE. PARTS PART CODE 8/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 10 STEP 5 : PUT UP ALL TRUSSES. PARTS PARTS PART PART CODE CODE 9/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 11 STEP 6 : TENSION CABLE INSTALLATION . ALL CABLES ARE DIAGONALLY INSTALLED ON EACH SIDE OF THE INTERVAL. PARTS PARTS PART PART CODE CODE 10/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 12 STEP 7 : FRONT TRUSSES TO COMPLETE. PARTS PARTS PART PART CODE CODE 11/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 13 STEP 8 : REAR TRUSSES TO COMPLETE. PARTS PARTS PART PART CODE CODE 12/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 14 STEP 9 : INSTALL TOP SUPPORT TUBE. PARTS PARTS PART PART CODE CODE 13/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 15 STEP 10 : INSTALL FRONT COVER PANELS. PARTS PARTS PART PART CODE CODE 14/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 16 STEP 11 : INSTALL REAR COVER PANEL. PARTS PARTS PART PART CODE CODE 15/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 17 STEP 12 : INSTALL ROOF COVER. NOTE : THE COVER MUST BE INSTALLED ON A WINDLESS DAY. DO NOT ATTEMPT TO INSTALL THE COVER DURING WINDY CONDITIONS. PARTS PART CODE 16/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 18 STEP 12 : TENSION THE COVER ON THE FRAME FROM SIDE TO SIDE. PARTS PARTS PART PART CODE CODE 17/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
-
Page 19: After The Installation
AFTER THE INSTALLATION Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
