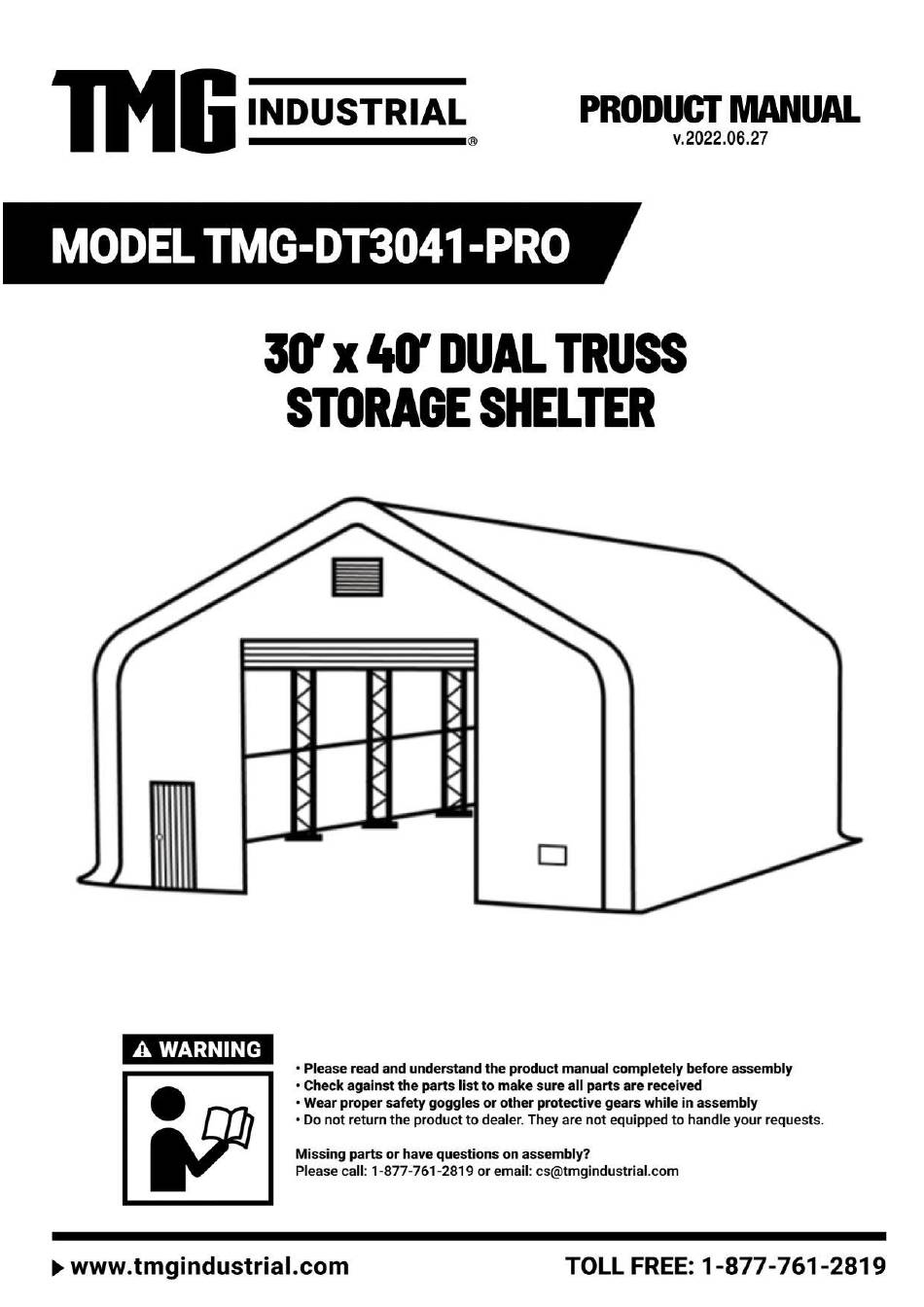

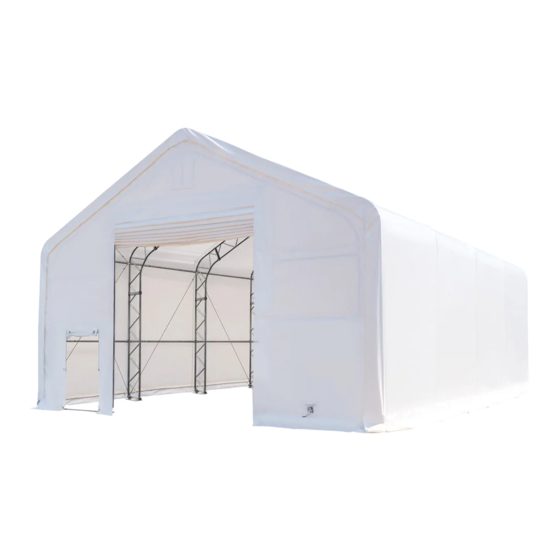

- Page 1 ▶ W W W . T M G I N D U S T R I A L . C O M P 0 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 2 Main Specifications : Assembly size : W9.15 x L12 x H6 (m) / 30 x 39.37 x 19.68 (ft) Ridge height : 6m / 19.68 ft Peak clearance : 5.4m / 17.7 ft Front door : 4.27 x 3.96 (m) / 14 x 13 (ft) ...
- Page 3 Frame structure diagram. ▶ W W W . T M G I N D U S T R I A L . C O M P 2 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 4 TMG-DT3041-PRO Part List Parts Graphical Description Length Code Peak arch tube 2570mm (for 4 middle trusses ) Peak arch tube (for front and rear 2570mm truss) Upper rafter tube 2921mm (for middle trusses) Upper rafter tube (for front and rear...
- Page 5 Rear door right W150xL200mm column baseplate Rear door middle W150xL200mm column baseplate Left baseplate of W150xL200mm front door frame Right baseplate of W150xL200mm front door frame Baseplates for middle W260xL480mm truss Ratchets (3T) φ16x150mm Expansion bolts Ceiling cross bar 2083mm (front truss) Ceiling cross bar 2233mm...
- Page 6 Lower vertical tubes 2580mm for rear trusses Left and right upper vertical tubes for rear 1990mm trusses Middle upper vertical 2874mm tubes for rear trusses Front vertical door rail 2625mm (left side lower part) Front vertical door rail 2625mm (right side lower part) Door frame horizontal tube 1982mm...
- Page 7 Top cover tension 500mm tube Front roll up door dropping tubes 2195mm (to connect #16) Front roll up door dropping tubes 2192mm (to connect #15) Sidewall frame steel φ6x4050mm tension cables Ridge steel tension cables φ6x2800mm (front and rear trusses) Middle truss crossing φ6x3990mm steel tension cables...
- Page 8 Front vertical door rail end plate 220mm (floatable to keep door rail straight) Tension tube end (φ32) water plug (φ48) Tube clamps Tapping screw #12x25mm Self locking bolt M10x70mm and nuts Strengthened bolt M12x30mm and nuts Hex bolt and nuts M10x50mm Hex bolt and nuts M10x70mm...
- Page 9 Step 1 : Baseplate positioning and installation. Installation diagram of expansion bolt. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 8 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 10 Step 2 : Assemble all trusses. Front truss. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 9 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 11 Rear truss. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 0 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 12 Middle trusses. (4 trusses) Part Part 24x4 ▶ W W W . T M G I N D U S T R I A L . C O M P 1 1 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 13 Lay down all (6) trusses on the ground when the assembly is all completed and before moving to next step, and then wrap (#38) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
- Page 14 Step 3 : Put up the front truss. (It is suggested to use crane for hoisting) Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 3 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 15 Step 4 : Put up the rest trusses. Refer to step 3 to put up the rest trusses, connect all purlins (#5) with bolt (#28) and secure all bolts firmly on each span before going to next truss . Part Part ▶...
- Page 16 Repeat above step to put up all other trusses (from 3rd to 6th truss), and connect all purlins. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 5 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 17 Tension cable installation . All cables are diagonally installed on each side of the interval. Part Part Step 5 : Front and rear trusses to complete. ▶ W W W . T M G I N D U S T R I A L . C O M P 1 6 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 18 Front truss Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 7 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 19 Rear truss Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 8 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 20 Step 6 : Install front and rear cover panels. Front cover panel Lift up (#34) cover panel, starting from the center point of the frame (highest ridge point) use ropes (#32) through the grommets to tie the panel to the truss firmly.
- Page 21 Rear cover panel Lift up (#34A) cover panel, starting from the center point of the frame (highest ridge point) use ropes (#32) through the grommets to tie the panel to the truss firmly. All grommets need to be tied to the frame as shown. Part Part ▶...
- Page 22 Install the front door pressing plate. Trim the side door tarp. Part ▶ W W W . T M G I N D U S T R I A L . C O M P 2 1 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 23 Step 7 : Install mechanical roll up doors. Door curtain installation. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 2 2 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 24 Front door installation, please look at the door from inside. The hand winch (#23) comes with a shorter cable, we call it cable (#B). Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 2 3 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 25 Step 8 : Install roof cover. NOTE: The cover must be installed on a windless day. DO NOT attempt to install the cover during windy conditions. Part ▶ W W W . T M G I N D U S T R I A L . C O M P 2 4 / 2 6 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
- Page 26 After the cover is installed on the roof, insert the plastic pipe (#37) slowly into the grooves on two ends of the cover (not two sides), and then insert tension tubes (#14,#14A) in the groove on both sides of the cover bottom, Add the water plug (#25) on the 1st tube (#14) to protect the fabric while the tube is going through and add the water plug on the last tube also to keep water away.
- Page 27 After the Installation Walk around and inspect the building periodically to make sure all components are still firmly secured and the whole building is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position. Check the base plates, adjust the ropes and tie downs if required and clean the cover regularly.
