TMG PRO Series Product Manual

TMG PRO Series Product Manual

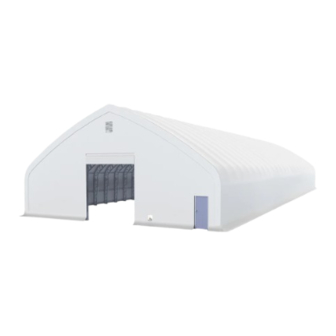

70x100 ft dual truss storage shelter
Hide thumbs Also See for PRO Series:

Advertisement

Quick Links

▶ W W W . T M G I N D U S T R I A L . C O M
P 0 / 4 0
T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TMG PRO Series

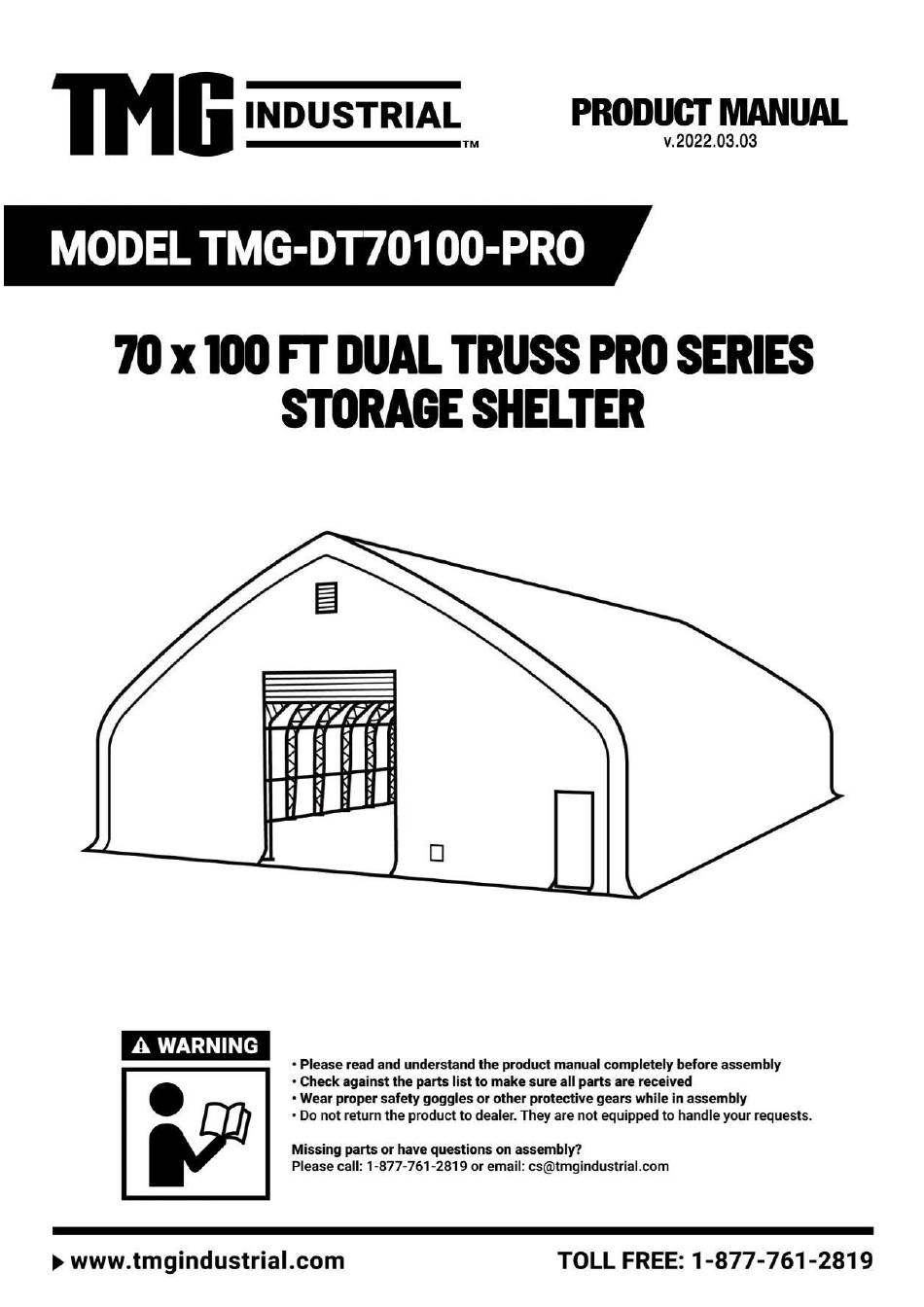

  • Page 1 ▶ W W W . T M G I N D U S T R I A L . C O M P 0 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 2: Main Specifications

    Main Specifications:  Assembly size : W21.3 x L30 x H8.5 (m) / 70ft x 100ft x 28ft  Outside width : 21.3 m / 70ft, inside width : 20.3 m / 67ft, length : 30 m / 99 ft ...
  • Page 3 Frame structure diagram. ▶ W W W . T M G I N D U S T R I A L . C O M P 2 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 4 TMG-DT70100-PRO Part List Parts Graphical Description Length Code Peak arch tube L3193mm (for middle trusses) Peak arch tube (for front and rear L3193mm trusses) Upper and down rafter Cx20 tube(for middle L3104mm Dx20 trusses) Ex16 Upper rafter tube (for front and rear...
  • Page 5 Diagonal bracing tube L2540mm Support tube L2820mm Support tube L2820mm Baseplate for front and W280xL480mm rear truss left corners Baseplate for front and W280xL480mm rear truss right corners Baseplates W280xL430mm Left column baseplate W200xL410mm Right column W200xL410mm baseplate Baseplates W280xL430mm Ratchets Clip Left baseplate of door...
  • Page 6 Top cover tension tube L570mm (for both bottom sides) Front and rear vertical door rail L1300mm (left side upper part) Front and rear vertical door rail L1300mm (right side upper part) Column baseplate W200xL410mm Front and rear vertical door rail L2800mm (left side middle part) Front and rear vertical...
  • Page 7 L2854mm Door cross beam (right) Door center vertical supporting rod for L2564mm cross beam Upper cross tubes L2702mm (left and right) Door hand winch L2244mm crossing tube Side door left tube L2200mm Side door right tube L2200mm Side door upper tube L920mm Side door W925xL2005mm...
  • Page 8 Tie down straps W38xL1000mm (for #7) Cable connection plate L91mm Roll up door hand winch Wire rope for front and L25m rear door hand winch Front and rear vertical door rail connection L240mm plate Front and rear vertical door rail end plate L215mm (floatable to keep door rail straight)
  • Page 9 Braided rope L180m Top cover A W14.3xL31.2m Top cover B W17xL31.2m Front and rear truss W8.9xL21.3m cover panel Front and rear roll up W5.4xL5.5m door cover panel Front and rear fabric L150mm tarp secure pin φ25mmxL4m Plastic hose Connector φ25mm (for connection #36) Scratch resistant tape L10m...
  • Page 10 Step 1 : Baseplate positioning and installation.  Installation diagram of expansion bolt. PART PART ▶ W W W . T M G I N D U S T R I A L . C O M P 9 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 11 Step 2 : Installation of front and rear 2 group trusses. PART PART 40x2 ▶ W W W . T M G I N D U S T R I A L . C O M P 1 0 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 12 Step 3 : Installation of middle 14 group truss. PART PART 1x14 2x14 4x14 40x14 2x14 2x14 ▶ W W W . T M G I N D U S T R I A L . C O M P 1 1 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 13 Step 4 : wrap (#37) around the sharp points of the joint to avoid friction between the fabric and the interface. PART ▶ W W W . T M G I N D U S T R I A L . C O M P 1 2 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 14 Step 5 : Put up the front truss (It is suggested to use crane for hoisting). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 1 3 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 15 Step 6 : Put up the 2nd truss, and connect all purlins (#5) between 1st and 2nd. PART ▶ W W W . T M G I N D U S T R I A L . C O M P 1 4 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 16 Step 7 : Repeat above step to put up all other trusses, and connect all purlins. PART ▶ W W W . T M G I N D U S T R I A L . C O M P 1 5 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 17 Step 8 : Installation of diagonal Purlins (The front and rear mounting methods are the same). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 1 6 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 18 Step 9 : Tension cable installation, All cables are diagonally installed on each. PART ▶ W W W . T M G I N D U S T R I A L . C O M P 1 7 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 19 Step 10 : Door column installation (The front and rear mounting methods are the same). PART PART PART ▶ W W W . T M G I N D U S T R I A L . C O M P 1 8 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 20 Step 11-1 : Door support pipe installation (The front and rear mounting methods are the same). PART PART PART ▶ W W W . T M G I N D U S T R I A L . C O M P 1 9 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 21 Step 11-2 : Door support pipe installation (The front and rear mounting methods are the same). PART PART PART ▶ W W W . T M G I N D U S T R I A L . C O M P 2 0 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 22 Step 11-3 : Side door installation (The front and rear mounting methods are the same). PART PART PART ▶ W W W . T M G I N D U S T R I A L . C O M P 2 1 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 23 Step 12 : Install the waterproof plug (The front and rear mounting methods are the same). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 2 2 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 24 Step 13 : Install vertical diagonal support pipe (#5B, #5C) (The front and rear mounting methods are the same). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 2 3 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 25 Step 14 : Install the door covering cloth (The front and rear mounting methods are the same). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 2 4 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 26 Step 15 : Install the front door metal strip (The front and rear mounting methods are the same). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 2 5 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 27 Step 16 : 1. Door curtain installation (The front and rear mounting methods are the same). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 2 6 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 28 Step 16 : 2. Door curtain installation (The front and rear mounting methods are the same). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 2 7 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 29 Step 16 : 3. Door curtain installation (The front and rear mounting methods are the same). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 2 8 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 30 Step 17 : 1. Install the top cover A ( #32 ). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 2 9 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 31 Step 17 : 2. Install the top cover A ( #32 ). PART PART ▶ W W W . T M G I N D U S T R I A L . C O M P 3 0 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 32 Step 17 : 3. Install the top cover A ( #32 ). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 3 1 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 33 Step 17 : 4. Install the top cover A ( #32 ). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 3 2 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 34 Step 18 : 1. Install the top cover B ( #33 ). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 3 3 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 35 Step 18 : 2. Install the top cover B ( #33 ). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 3 4 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 36 Step 18 : 3. Install the top cover B ( #33 ). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 3 5 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 37 Step 18 : 4. Install the top cover B ( #33 ). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 3 6 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 38 Step 18 : 5. Install the top cover B ( #33 ). PART ▶ W W W . T M G I N D U S T R I A L . C O M P 3 7 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 39 Step 19 : Tension both sides of the top cloth with the tension device. PART ▶ W W W . T M G I N D U S T R I A L . C O M P 3 8 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 40 Step 20 : Tie the rope. PART ▶ W W W . T M G I N D U S T R I A L . C O M P 3 9 / 4 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 41: After The Installation

    After the Installation Walk around and inspect the building periodically to make sure all components are still firmly secured and the whole building is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.

This manual is also suitable for:

Tmg-dt70100-pro
