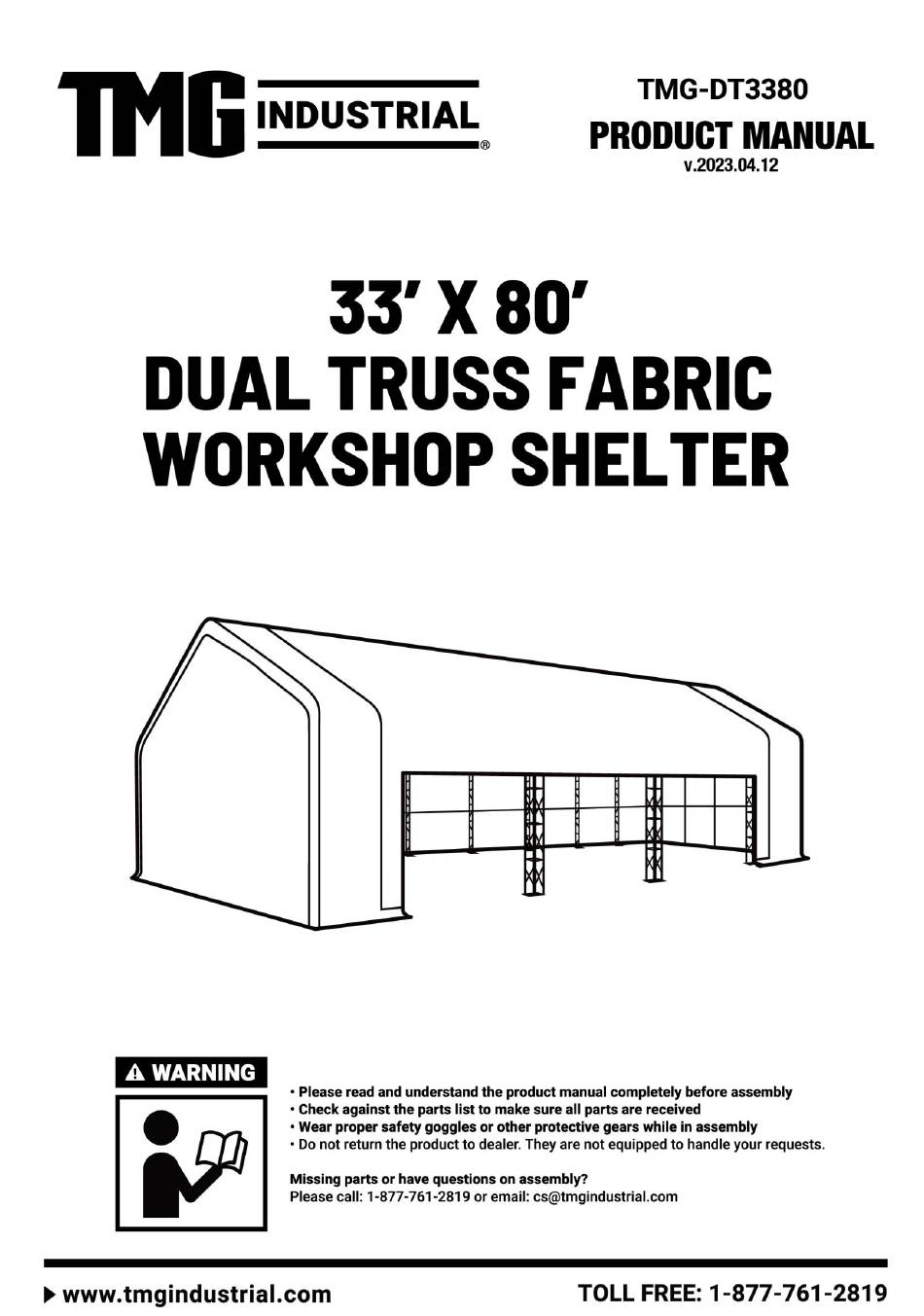

- Page 1 www.tmgindustrial.com 0/19 Toll Free:1-877-761-2819...
-
Page 2: Main Specifications

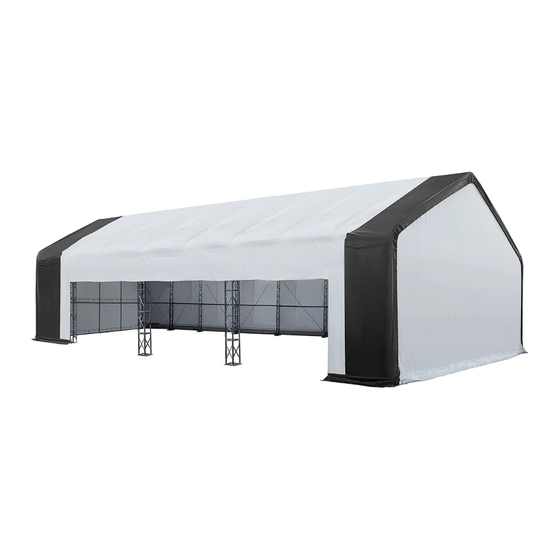

MAIN SPECIFICATIONS : Assembly size : W10 x L24 x H6 (m) / 32.8 x 78.7 x 19.7 (ft) Ridge height : 6m / 19.7ft Peak clearance : 5.4m / 17.7 ft Door : 5.7x 2.68 (m) / 18.7 x 8.8 (ft) ... - Page 3 damage and worn. It will help to extend the cover life span. Check the parts list below to make sure all parts are received prior to assembly. FRAME STRUCTURE DIAGRAM. www.tmgindustrial.com 2/19 Toll Free:1-877-761-2819...
- Page 4 TMG-DT3380 PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH CODE Peak arch tube 2570mm (for 7 middle trusses ) Peak arch tube 2570mm (for front and rear truss) Upper rafter tube 3390mm (for middle trusses) Upper rafter tube 3390mm (for front and rear truss)
- Page 5 Baseplate for front and rear W260xL520mm truss right corners Baseplate W150xL200mm Baseplates for middle truss W260xL480mm Ratchets (3T) Expansion bolts φ16xL150mm Middle upper vertical tubes φ48xL2555mm Lower vertical tubes φ48xL2896mm Left and right upper φ48xL1588mm vertical tubes Middle horizontal tube φ48xL2288mm Horizontal tube φ48xL2253mm...
- Page 6 Ridge steel tension cables φ6xL3130mm (front and rear trusses) Middle truss crossing steel φ6xL3990mm tension cables Tie down straps W38xL800mm (for #7A) Cable connection plate 91mm Tension tube end water plug (φ32) Tube clamps (φ48) Scratch resistant tape Self locking bolt M10x70mm and nuts Strengthened bolt...
- Page 7 STEP 1 : BASEPLATE POSIT INSTALLATION. Installation diagram of expansion bolt. PART PART STEP 2 : INSTALLING THE DOOR FRAME. www.tmgindustrial.com 6/19 Toll Free:1-877-761-2819...
- Page 8 Install the door frame according to the base plate datum in step 1. PART PART STEP 3 : ASSEMBLE ALL TRUSSES. www.tmgindustrial.com 7/19 Toll Free:1-877-761-2819...
- Page 9 Front and rear trusses. PART PART 24x2 Middle trusses. (7 trusses) www.tmgindustrial.com 8/19 Toll Free:1-877-761-2819...
- Page 10 PART PART 20x7 Lay down all (9) trusses on the ground when the assembly is all completed and before moving to next step, and then wrap (#22) around the sharp points of the joint to avoid friction between the fabric and the interface, www.tmgindustrial.com 9/19 Toll Free:1-877-761-2819...
- Page 11 resulting in fabric damage. PART STEP 4 : PUT UP THE FRONT TRUSS. (IT IS SUGGESTED TO USE CRANE FOR HOISTING) www.tmgindustrial.com 10/19 Toll Free:1-877-761-2819...
- Page 12 PART STEP 5 : PUT UP THE REST TRUSSES www.tmgindustrial.com 11/19 Toll Free:1-877-761-2819...
- Page 13 Refer to step 4 to put up the rest trusses, connect all purlins (#5) with bolt (#28) and secure all bolts firmly on each span before going to next truss . PART PART Repeat above step to put up all other trusses (from 3rd to 9th truss), and connect all purlins. www.tmgindustrial.com 12/19 Toll Free:1-877-761-2819...
- Page 14 PART PART Tension cable installation . All cables are diagonally installed on each side of the interval. www.tmgindustrial.com 13/19 Toll Free:1-877-761-2819...
- Page 15 PART PART STEP 6 : FRONT AND REAR TRUSSES TO COMPLETE. www.tmgindustrial.com 14/19 Toll Free:1-877-761-2819...
- Page 16 PART PART 21x2 STEP 7 : INSTALL FRONT AND REAR COVER PANELS. www.tmgindustrial.com 15/19 Toll Free:1-877-761-2819...
- Page 17 Lift up (#30) cover panel, starting from the center point of the frame (highest ridge point) use ropes (#28) through the grommets to tie the panel to the truss firmly. All grommets need to be tied to the frame as shown. PART ROPE SHEAR SIZE 19000mm...
- Page 18 NOTE: The cover must be installed on a windless day. DO NOT attempt to install the cover during windy conditions. PART After the cover is installed on the roof, insert the plastic pipe (#31) slowly into the grooves on two ends of the www.tmgindustrial.com 17/19 Toll Free:1-877-761-2819...
-
Page 19: After The Installation
cover (not two sides), and then insert tension tubes (#13,#13A,#13B) in the groove on both sides of the cover bottom, Add the water plug (#20) on the 1st tube (#13) to protect the fabric while the tube is going through and add the water plug on the last tube also to keep water away. - Page 20 Walk around and inspect the building periodically to make sure all components are still firmly secured and the whole building is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
