Summary of Contents for TMG TMG-DT50FW8

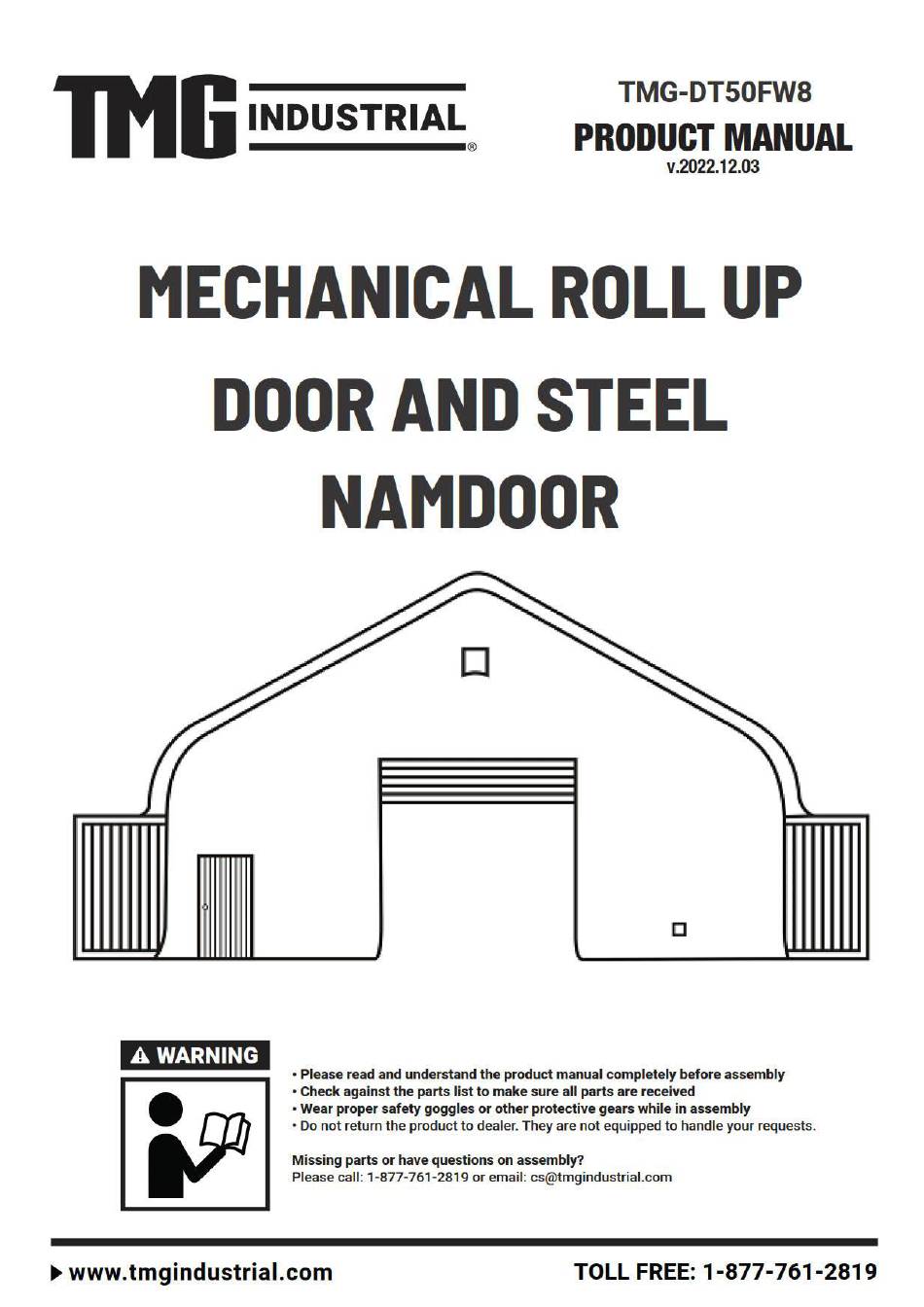

- Page 1 ► www.tmgindustrial.com 0/12 TOLL FREE: 1-877-761-2819...
-
Page 2: Main Specifications
MAIN SPECIFICATIONS : Overall assembled size : W15.24 x H7.8 (m) / W50x H25.6 (ft) Width : 15.24 m / 50ft Height : 7.8 m / 25.6ft Front door : 4.6x3.85 (m) / 15.1x12.6 (ft) PRIOR TO ASSEMBLY Please read the instructions carefully before installation. - Page 3 TMG-DT50FW8 PART LIST PICTURE DESCRIPTION LENGTH Baseplate W150xL200mm Baseplate W150xL200mm Baseplate of front door frame W150xL200mm Side vertical tube L2693mm Lower vertical tube L2307mm Lower vertical tube L2307mm Side vertical tube L2693mm Middle vertical tube L1990mm Side door left tube...
- Page 4 Front vertical door rail L1720mm (left side upper part) Front vertical door rail L1720mm (right side upper part) Front roll up door dropping tubes (to L2356mm connect #12B) Front roll up door dropping tubes (to L2359mm connect #12A) Front door hand winch crossing tube L2362mm Bottom tension bar L2310mm...
- Page 5 Wire rope for front door hand winch Front fabric tarp secure pin L200m Expansion bolts φ 16x150mm Pressing plate L2000mm Pressing plate L1000mm Self locking bolt and nuts M8x70mm Hex bolt and nuts M10x80mm Hex bolt and nuts M10x50mm Hex bolt and nuts M10x100mm Tapping screw #12x25mm...
- Page 6 STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE. Place the containers making sure they are parallel and the correct width apart the diagonal X and Y must be equal. Baseplates must be bolted firmly with expansion bolts, It is concrete expansion bolt. Installation diagram of expansion bolt.
- Page 7 STEP 2 : FRONT TRUSS TO COMPLETE. ► www.tmgindustrial.com 6/12 TOLL FREE: 1-877-761-2819...
- Page 8 PART PART ► www.tmgindustrial.com 7/12 TOLL FREE: 1-877-761-2819...
- Page 9 STEP 3 : INSTALL FRONT COVER PANEL. Lift up (#22) cover panel, starting from the center point of the frame (highest ridge point) use ropes (#20) through the grommets to tie the panel to the truss firmly. All grommets need to be tied to the frame as shown. PART ROPE SHEAR SIZE ►...
- Page 10 Install the front door metal strip. PART PART ► www.tmgindustrial.com 9/12 TOLL FREE: 1-877-761-2819...
- Page 11 STEP 4 : INSTALL MECHANICAL ROLL UP DOORS. Door curtain installation. PART PART ► www.tmgindustrial.com 10/12 TOLL FREE: 1-877-761-2819...
- Page 12 Front door installation, please look at the door from inside. The hand winch (#23A) comes with a shorter cable, we call it cable (#B). PART ROPE SHEAR SIZE ► www.tmgindustrial.com 11/12 TOLL FREE: 1-877-761-2819...
-
Page 13: After The Installation
AFTER THE INSTALLATION Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
