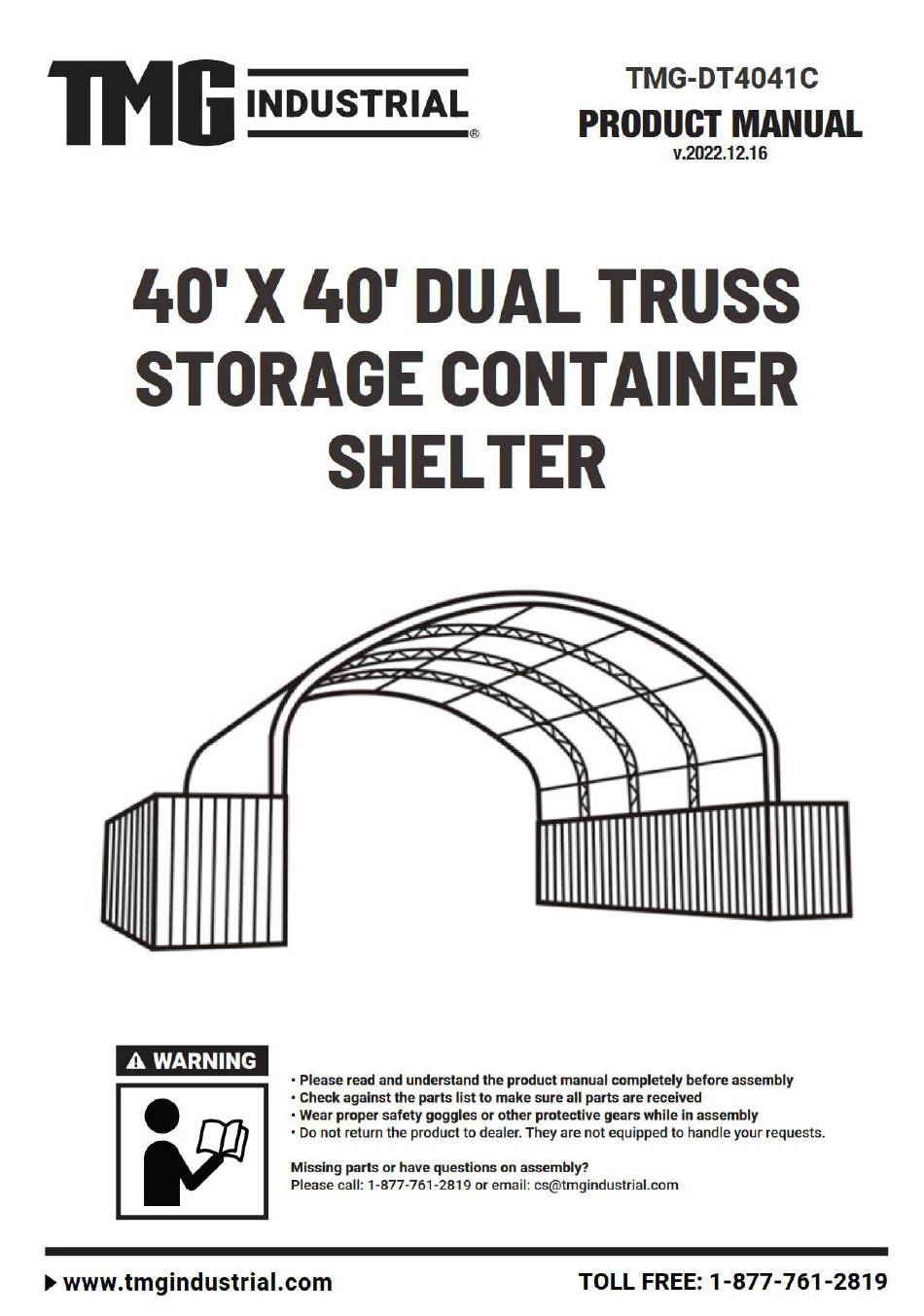

- Page 1 0/12 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
-
Page 2: Main Specifications
MAIN SPECIFICATIONS : Overall assembled size : W12 x L12 x H4.5 (m) / W40 x L39.37 x H15 (ft) Width : 12 m / 39.37ft Length : 12 m / 39.37ft Ridge peak height : 4.5 m / 15ft + container height Shoulder wall clearance height : 1.05m / 3.4ft ... - Page 3 TMG-DT4041C PART LIST PARTS PICTURE DESCRIPTION LENGTH CODE Peak arch tube L2509mm (for 3 middle trusses ) Peak arch tube L2509mm (for front and rear truss) Upper rafter tube L1996mm (middle truss) Upper rafter tube L1996mm (front and rear truss)
- Page 4 Cable connection plate W90xL90mm Ratchets Tie down straps W38xL800mm (for #10 and front and rear arches) Hex bolt and nuts M12x30mm Self locking bolt and nuts M10x80mm Tension tube end water plug φ32mm Plastic hose φ25x4000mm (in grooves at both ends of #17) Connector (for connection #15) φ25mm Roof fabric tarp cover...
- Page 5 STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SI. PARTS PART CODE 4/12 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 6 STEP 2 : INSTALLATION OF FRONT AND REAR TRUSSES. PARTS PARTS PART PART CODE CODE 24x2 5/12 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 7 STEP 3 : STALLATION (3) MIDDLE TRUSSES. PARTS PARTS PART PART CODE CODE 24x3 6/12 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 8 STEP 4 : WRAP (#18) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC AND THE INTERFACE. PARTS PART CODE 7/12 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 9 STEP 5 : PUT UP ALL TRUSSES. PARTS PARTS PART PART CODE CODE 8/12 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 10 STEP 6 : TENSION CABLE INSTALLATION. ALL CABLES ARE DIAGONALLY INSTALLED ON EACH SIDE OF THE INTERVAL. PARTS PARTS PART PART CODE CODE 9/12 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 11 STEP 7 : INSTALL ROOF COVER. PARTS PART CODE 10/12 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 12 STEP 8 : TENSION THE COVER ON THE FRAME FROM SIDE TO SIDE. PARTS PARTS PART PART CODE CODE 11/12 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
-
Page 13: After The Installation
AFTER THE INSTALLATION Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
