TMG -DT2030-PRO Product Manual

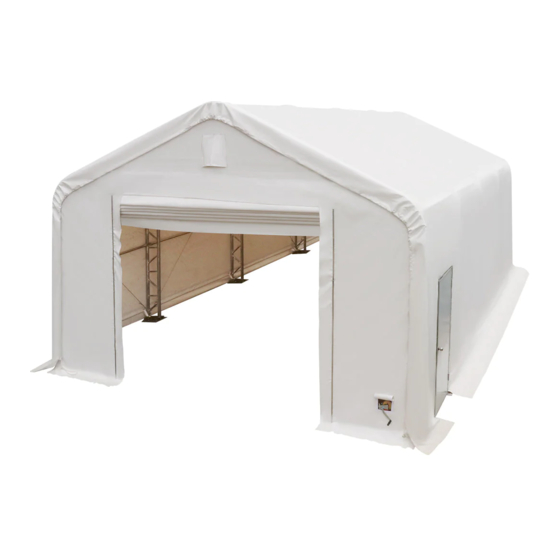

20ftx30ft dual truss storage shelter
Hide thumbs

Advertisement

Quick Links

Download this manual
▶ W W W . T M G I N D U S T R I A L . C O M
P 0 / 3 1
T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

Advertisement

loading

Related Manuals for TMG TMG-DT2030-PRO

Summary of Contents for TMG TMG-DT2030-PRO

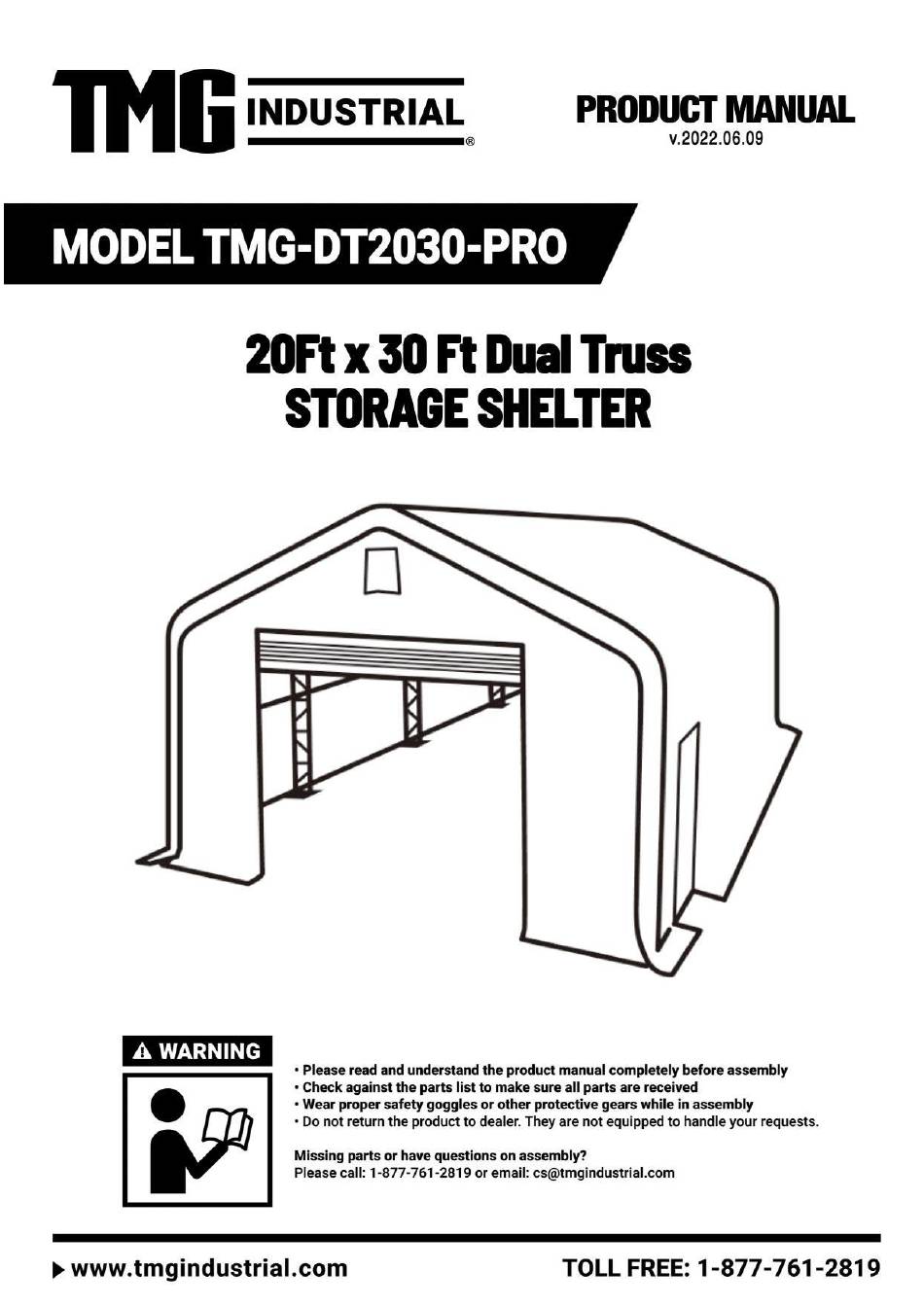

  • Page 1 ▶ W W W . T M G I N D U S T R I A L . C O M P 0 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...

  • Page 2: Main Specifications

    Main Specifications :  Assembly size : W6 x L9.6 x H4.5 (m) / 20 x 31 x 15 (ft)  Ridge height : 4.5m / 15 ft  Front and back door : 3.6 x 2.9 (m) / 12 x 10 (ft) ...
  • Page 3 Frame structure diagram. ▶ W W W . T M G I N D U S T R I A L . C O M P 2 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 4 TMG-DT2030-PRO Part List Parts Graphical Description Length (mm) Code Peak arch tube 1811 (for middle trusses) Peak arch tube 1811 (for front and rear truss) Upper rafter tube 1495 (for middle trusses) Upper rafter tube 1495 (for front and rear truss)
  • Page 5 Right baseplate of front L200xW150 door frame Baseplates for middle L280xW260 truss Ratchets φ16x150 Expansion bolts Ceiling cross bar 1748 (front and rear truss) Ceiling cross bar 1898 (front and rear truss) Front and rear vertical door rail 1465 (left side upper part) Front and rear vertical door rail 1465...
  • Page 6 Door hand winch crossing tube Top cover tension tube 1993 (for both bottom sides) Top cover tension tube 1970 (for both bottom sides) Top cover tension tube 2450 Roll up door dropping 1856 tubes (to connect #16) Roll up door dropping 1859 tubes (to connect #16) Sidewall frame steel...
  • Page 7 Front and rear vertical door rail connection L240xW134 plate Front and rear vertical door rail end plate (floatable to keep door rail straight) Tension tube end water (φ32) plug Tube clamps (φ48) Plastic hose (in grooves 4000 at both ends of #33) Connector (φ25) (for connection #27)
  • Page 8 Step 1 : Baseplate positioning and installation. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 7 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 9 Step 2 : Assemble all trusses.  Front truss. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 8 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 10  Second truss. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 9 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 11  Rear truss. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 0 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 12  The rest of the trusses. (2 trusses) Part Part 12x2 ▶ W W W . T M G I N D U S T R I A L . C O M P 1 1 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 13  Lay down all (5) trusses on the ground when the assembly is all completed and before moving to next step, and then wrap (#38) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
  • Page 14 Step 3 : Put up the front truss.  Put up the front truss: use a crane is the best and safest way, otherwise pull with ropes is another option, but you have to make sure it is safe, and you have enough manpower.
  • Page 15 Step 4 : Put up the rest trusses.  Refer to step 3 to put up the rest trusses, connect all purlins (#5) with bolt (#28) and secure all bolts firmly on each span before going to next truss . Part Part ▶...
  • Page 16  Repeat above step to put up all other trusses (from 3rd to 5th truss), and connect all purlins. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 5 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 17  Install the side door frame. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 6 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 18  Install the side door. Align the lock cylinder boss with the hole. Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 7 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 19  Tension cable installation . All cables are diagonally installed on each side of the interval. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 8 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 20 Step 5 : Front and rear trusses to complete. (2 trusses) Part Part 20x2 ▶ W W W . T M G I N D U S T R I A L . C O M P 1 9 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 21 Step 6 : Install front and rear cover panels.  Lift up (#34) cover panels, starting from the center point of the frame (highest ridge point) use ropes (#32) through the grommets to tie the panel to the truss firmly. All grommets need to be tied to the frame as shown.
  • Page 22  Install the front and rear door pressing plate. Part 24x2 ▶ W W W . T M G I N D U S T R I A L . C O M P 2 1 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 23 Step 7 : Install mechanical roll up doors.  Door curtain installation. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 2 2 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 24  Front and rear door installation, please look at the door from inside.  The hand winch (#23) comes with a shorter cable, we call it cable (#B). Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 2 3 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 25 Step 8 : Install roof cover.  NOTE: The cover must be installed on a windless day. DO NOT attempt to install the cover during windy conditions.  When you are ready to install the roof cover, unpack the cover and position it parallel to the building frame on one side.
  • Page 26  After the cover is installed on the roof, insert the plastic pipe (#27) slowly into the grooves on two ends of the cover (not two sides). Part ▶ W W W . T M G I N D U S T R I A L . C O M P 2 5 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 27  Then insert tension tubes (#14,#14A.#14B) in the groove on both sides of the cover bottom. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 2 6 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 28  Tension both ends of the cover with the tensioning device. Part ▶ W W W . T M G I N D U S T R I A L . C O M P 2 7 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 29  Tension both sides of the cover with the tension device. Part ▶ W W W . T M G I N D U S T R I A L . C O M P 2 8 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 30  Tie the rope. ▶ W W W . T M G I N D U S T R I A L . C O M P 2 9 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 31  Complete side door installation. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 3 0 / 3 1 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 32 After the Installation Walk around and inspect the building periodically to make sure all components are still firmly secured and the whole building is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position. Check the base plates, adjust the ropes and tie downs if required and clean the cover regularly.
