TMG PRO Series Product Manual

50x100 dual truss storage shelter
Hide thumbs Also See for PRO Series:

Advertisement

Quick Links

Download this manual
0/41
TOLL FREE:1-877-761-2819
►www.tmgindustrial.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TMG PRO Series

Summary of Contents for TMG PRO Series

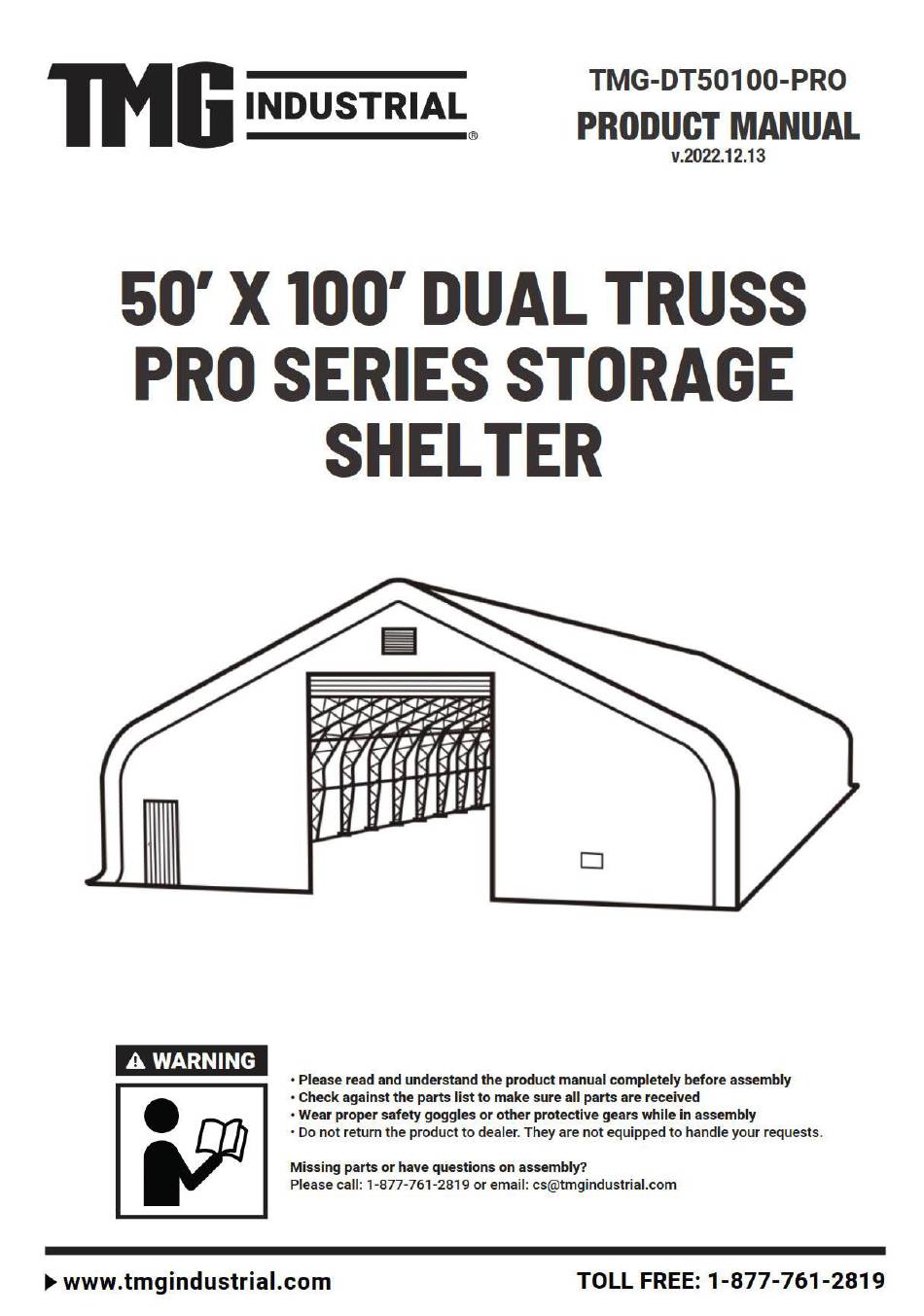

  • Page 1 0/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS : Assembly size : W15.24 x L31.2 x H7.0 (m) / 50 x 100 x 23 (ft)   Outside width : 15.24 m / 50ft, inside width : 14.4 m / 47.4 ft, length : 31.2 m / 100 ft Ridge peak height : 7.0 m / 23 ft ...
  • Page 3 FRAME STRUCTURE DIAGRAM. 2/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 4 TMG-DT50100-PRO PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH CODE Peak arch tube L2646mm (for front and rear truss) Peak arch tube L2646mm (for 6 middle trusses ) Upper rafter tube L2855mm (for front and rear truss) Upper rafter tube L2855mm (for middle truss)
  • Page 5 Base plate for front and rear W260xL320mm truss right corners Base plates for middle truss W260xL280mm Ratchets Base plates for middle truss W280xL570mm (group 8 truss) Clip Left base plate of front and W150xL350mm rear door frame Right base plate of front and W150xL350mm rear door frame Front and rear door left and...
  • Page 6 Front and rear vertical door rail end plate (floatable to W60xL218mm keep door rail straight) Front and rear vertical door rail W250xL2376mm (left side upper part) Front and rear vertical door rail W250xL2376mm (right side upper part) Front and rear vertical door rail W250xL2660mm (left side lower part)
  • Page 7 Front and rear fabric panel φ32xL750mm tension tubes Front and rear fabric panel φ32xL470mm tension tubes Front and rear roll up door dropping tubes φ32xL2346mm (to connect #16A) Front and rear roll up door dropping tubes φ32xL2342mm (to connect #16) Middle truss crossing steel φ6xL5900mm tension cables...
  • Page 8 Roof fabric tarp cover Front and rear truss fabric tarp panel Front and rear roll up door fabric tarp panel Plastic hose (in grooves at both ends of φ25xL4000m #24) Connector φ25 (for connection #26) Tension ropes φ32xL300m (tie to front and back doors) Self locking bolt and nuts M10x80mm Self locking bolt and nuts...
  • Page 9 STEP 1 : BASEPLATE POSITIONING AND INSTALLATION. PARTS PARTS PART PART CODE CODE 8/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 10 STEP 2 : INSTALLATION OF FRONT AND REAR 2 GROUP TRUSSES. PARTS PARTS PART PART CODE CODE 32x2 9/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 11 STEP 3 : INSTALLATION OF MIDDLE 12 GROUP TRUSS. PARTS PARTS PART PART CODE CODE 1x12 2x12 2x12 32x12 2x12 2x12 10/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 12 STEP 4 : WRAP (#23) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC AND THE INTERFACE. PARTS PART CODE 11/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 13 STEP 5 : PUT UP THE FRONT TRUSS (IT IS SUGGESTED TO USE CRANE FOR HOISTING). PARTS PART CODE 12/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 14 STEP 6 : PUT UP THE 2ND TRUSS, AND CONNECT ALL PURLINS (#5B) BETWEEN 1ST AND 2ND. PARTS PART CODE 13/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 15 STEP 7 : REPEAT ABOVE STEP TO PUT UP ALL OTHER TRUSSES, AND CONNECT ALL PURLINS. PARTS PART CODE 14/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 16 STEP 8 : INSTALLATION OF DIAGONAL PURLINS (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PARTS PART CODE 15/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 17 STEP 9 : TENSION CABLE INSTALLATION, ALL CABLES ARE DIAGONALLY INSTALLED ON EACH. PARTS PART CODE 16/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 18 STEP 10 : DOOR COLUMN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PARTS PARTS PARTS PART PART PART CODE CODE CODE 17/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 19 STEP 11 : DOOR SUPPORT PIPE INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PARTS PARTS PARTS PART PART PART CODE CODE CODE 18/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 20 STEP 11 : DOOR SUPPORT PIPE INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PARTS PARTS PARTS PART PART PART CODE CODE CODE 19/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 21 STEP 12 : INSTALLATION OF SIDE DOOR COLUMN (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PARTS PARTS PART PART CODE CODE 20/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 22 STEP 13 : INSTALL THE SIDE DOOR (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). Align the lock cylinder boss with the hole. PARTS PART CODE 21/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 23 STEP 14 : INSTALL THE WATERPROOF PLUG (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PARTS PART CODE 22/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 24 STEP 15 : INSTALL THE DOOR COVERING CLOTH (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PARTS PART CODE 23/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 25 STEP 16 : INSTALL THE SIDE DOOR METAL STRIP (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PARTS PART CODE 24/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 26 STEP 17 : CUT OPEN SIDE DOOR OPENINGS (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). 25/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 27 STEP 18 : INSTALL THE FRONT DOOR METAL STRIP (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PARTS PART CODE 26/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 28 STEP 19 : DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PARTS PART CODE 27/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 29 STEP 19 : DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PARTS PART CODE 28/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 30 STEP 19 : DOOR CURTAIN INSTALLATION (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME). PARTS PART CODE 29/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 31 STEP 20 : 1. INSTALL THE TOP CLOTH (#24A). PARTS PART CODE 30/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 32 STEP 20 : 2. INSTALL THE TOP CLOTH (#24A). PARTS PART CODE 31/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 33 STEP 20 : 3. INSTALL THE TOP CLOTH (#24A). PARTS PART CODE 32/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 34 STEP 20 : 4. INSTALL THE TOP CLOTH (#24A). PARTS PART CODE 33/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 35 STEP 21 : 1. INSTALL THE TOP CLOTH (#24). PARTS PART CODE 34/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 36 STEP 21 : 2. INSTALL THE TOP CLOTH (#24). PARTS PART CODE 35/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 37 STEP 21 : 3. INSTALL THE TOP CLOTH (#24). PARTS PART CODE 36/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 38 STEP 21 : 4. INSTALL THE TOP CLOTH (#24). PARTS PART CODE 37/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 39 Step 21 : 5. Install the top cloth (#24). PARTS PART CODE 38/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 40 Step 22 : Tension both sides of the top cloth with the tension device. PARTS PART CODE 39/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 41 STEP 23 : TIE THE ROPE. PARTS PART CODE 40/41 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...

  • Page 42: After The Installation

    AFTER THE INSTALLATION Walk around and inspect the building periodically to make sure all components are still firmly secured and the whole building is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.

This manual is also suitable for:

Tmg-dt50100-pro
