- Page 1 0/13 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
-
Page 2: Main Specifications

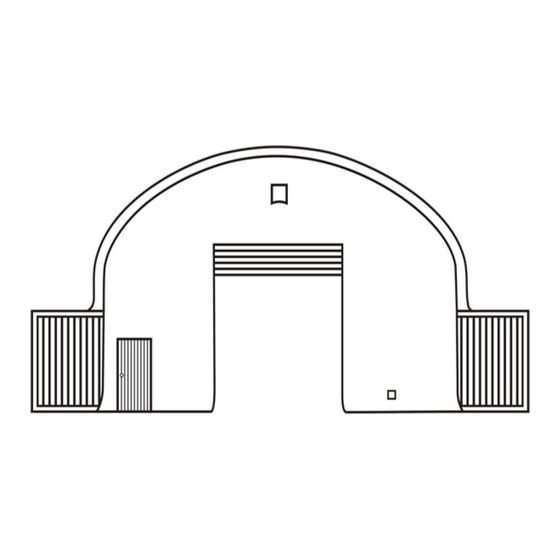

MAIN SPECIFICATIONS : Overall assembled size : W12 x H7.1 (m) / W39.37x H23.29 (ft) Width : 12m / 39.37ft Height : 7.1 m / 23.29ft Front door:4.6x4.2(m)/15.09x13.78(ft) PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is very important to follow your local safety regulations and industry standards during installation. - Page 3 TMG-DT40FW8 PART LIST PARTS PICTURE DESCRIPTION LENGTH CODE Baseplate W150xL200mm Baseplate W150xL200mm Baseplate of front door frame W150xL200mm Side vertical tube L2620mm Side door left tube L2027mm Side door right tube L2027mm Side door W925xL2005mm Side vertical tube L2620mm Lower vertical tube...
- Page 4 Upper vertical tube L2146mm Bottom tension bar L1590mm Front door hand winch crossing tube L1635mm Transverse tube L1781mm Side door upper tube L1642mm Middle transverse tube L1635mm Upper transverse tube L2500mm Upper transverse tube L2920mm Front roll up door dropping tubes (to L2356mm connect #18B) Front roll up door dropping tubes (to...
- Page 5 Front vertical door rail connection plate L240mm Front vertical door rail end plate (floatable L220mm to keep door rail straight) Tube clamps φ58 Tapping screw #12x25mm Pressing plate L2000mm Pressing plate L1000mm Hex bolt and nuts M10x50mm Hex bolt and nuts M8x90mm Hex bolt and nuts M10x70mm...
- Page 6 STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE. Place the containers making sure they are parallel and the correct width apart the diagonal X and Y must be equal. Baseplates must be bolted firmly with expansion bolts, It is concrete expansion bolt. Installation diagram of expansion bolt.
- Page 7 STEP 2 : FRONT TRUSS TO COMPLETE. 6/13 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 8 PARTS PARTS PART PART CODE CODE 7/13 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 9 STEP 3 : INSTALL THE TOP SUPPORT TUBE. PARTS PARTS PART PART CODE CODE 8/13 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 10 STEP 4 : INSTALL FRONT COVER PANEL. Lift up (#34) cover panel, starting from the center point of the frame (highest ridge point) use ropes (#33) through the grommets to tie the panel to the truss firmly. All grommets need to be tied to the frame as shown. PARTS PART ROPE SHEAR SIZE...
- Page 11 Install the front door metal strip. PARTS PARTS PART PART CODE CODE 10/13 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 12 STEP 5 : INSTALL MECHANICAL ROLL UP DOORS. Door curtain installation. PARTS PARTS PART PART CODE CODE 11/13 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 13 Front door installation, please look at the door from inside. The hand winch (#23D) comes with a shorter cable, we call it cable (#B). PARTS PART ROPE SHEAR SIZE CODE 12/13 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
-
Page 14: After The Installation
AFTER THE INSTALLATION Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position. - Page 15 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 16 MAIN SPECIFICATIONS : Overall assembled size : W12 x H7.1 (m) / W39.37x H23.29 (ft) Width : 12 m / 39.37ft Height : 7.1 m / 23.29ft PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is very important to follow your local safety regulations and industry standards during installation.
- Page 17 TMG-DT40BW8 PART LIST PARTS PICTURE DESCRIPTION LENGTH CODE Baseplate W150xL200mm Baseplate of front door frame W150xL200mm Baseplate for bottom tension bar W80xL200mm Side vertical tube L2620mm Lower vertical tube L2640mm Middle vertical tube L2034mm Upper vertical tube L1616mm Upper vertical tube...
- Page 18 Tube clamps φ58 Tapping screw #12x25mm Hex bolt and nuts M10x50mm Hex bolt and nuts M8x90mm Tube end water plug φ 32 Braided rope 100m Rear truss fabric cover panel W12.1xL7.3m TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 19 STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE. Place the containers making sure they are parallel and the correct width apart the diagonal X and Y must be equal. Baseplates must be bolted firmly with expansion bolts, It is concrete expansion bolt. ...
- Page 20 STEP 2 : REAR TRUSS TO COMPLETE. PARTS PARTS PART PART CODE CODE TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 21 STEP 3 : INSTALL THE TOP SUPPORT TUBE. PARTS PARTS PART PART CODE CODE TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
- Page 22 STEP 4 : INSTALL REAR COVER PANEL. Lift up (#35) cover panel, starting from the center point of the frame (highest ridge point) use ropes (#33) through the grommets to tie the panel to the truss firmly. All grommets need to be tied to the frame as shown. PARTS PART ROPE SHEAR SIZE...
- Page 23 AFTER THE INSTALLATION Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
