TMG Pro Series Product Manual

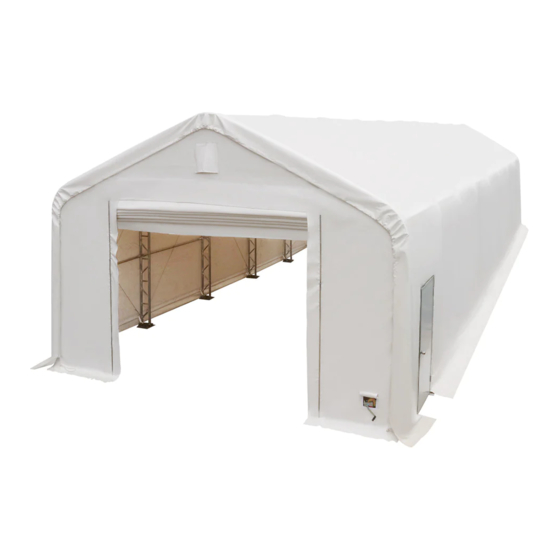

20'x63' dual truss storage shelter
Hide thumbs Also See for Pro Series:

Advertisement

Quick Links

Download this manual
▶ W W W . T M G I N D U S T R I A L . C O M
P 0 / 3 0
T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pro Series and is the answer not in the manual?

Questions and answers

Related Manuals for TMG Pro Series

Summary of Contents for TMG Pro Series

  • Page 1 ▶ W W W . T M G I N D U S T R I A L . C O M P 0 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...

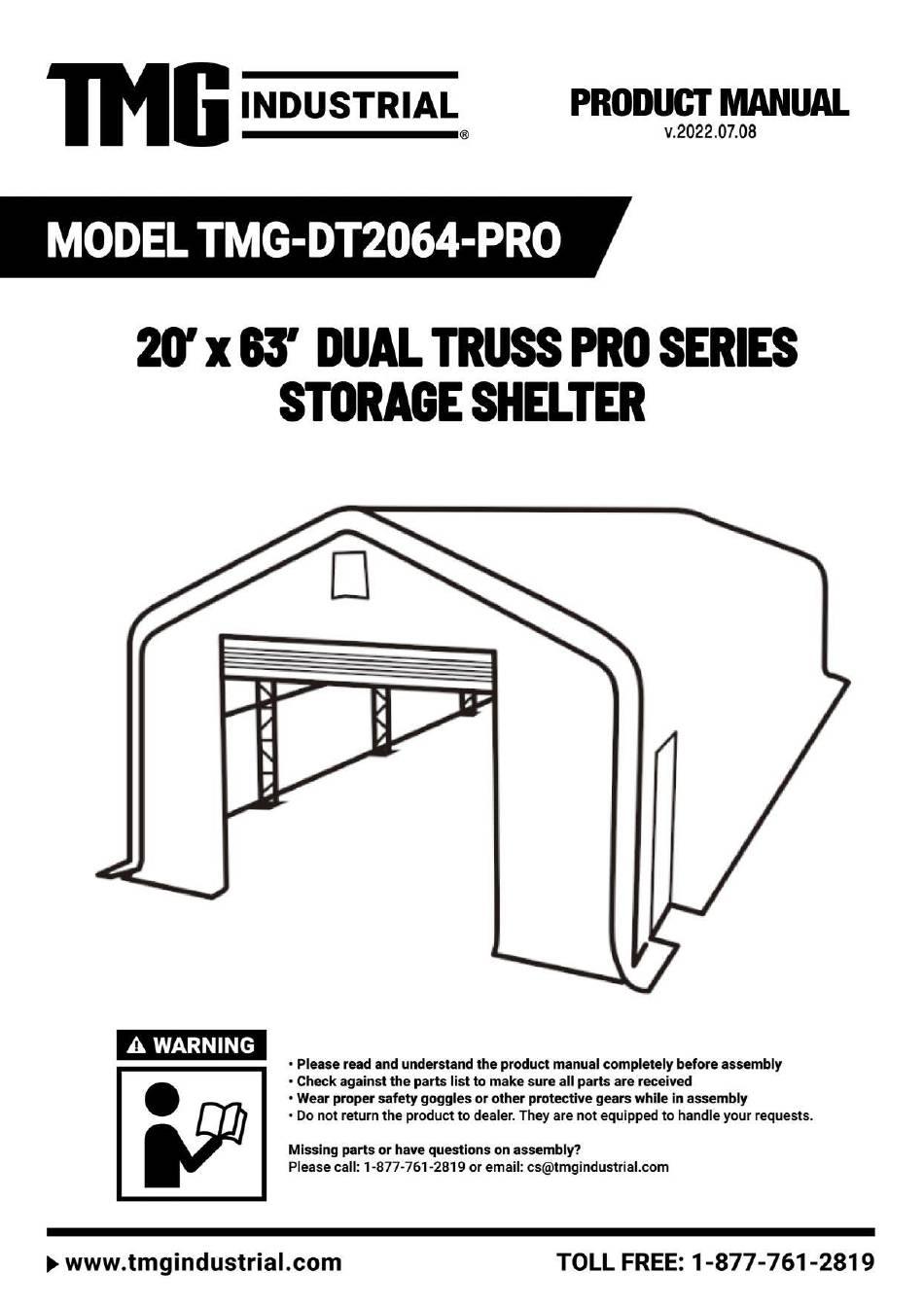

  • Page 2 Main Specifications :  Assembly size : W6 x L19.2 x H4.5 (m) / 19.7 x 63 x 14.8 (ft)  Ridge height : 4.5m / 14.8 ft  Front and back door : 3.6 x 2.9 (m) / 11.8 x 9.5 (ft) ...
  • Page 3 Frame structure diagram. ▶ W W W . T M G I N D U S T R I A L . C O M P 2 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 4 TMG-DT2064-PRO Part List Parts Graphical Description Length Code Peak arch tube L2020mm (for middle trusses ) Peak arch tube L2020mm (for front and rear truss) Upper rafter tube L1495mm (for middle trusses) Upper rafter tube L1495mm (for front and rear truss)
  • Page 5 Left baseplate of front L200xW150mm door frame Right baseplate of front L200xW150mm door frame Baseplates for middle L280xW260mm truss Ratchets L155mm φ16x150mm Expansion bolts Ceiling cross bar L1748mm (front and rear truss) Ceiling cross bar L1898mm (front and rear truss) Front and rear vertical door rail L1465mm...
  • Page 6 Side door upper tube L2328mm Bottom tension bar L930mm (front and rear truss) Door hand winch L944mm crossing tube Top cover tension tube L1993mm (for both bottom sides) Top cover tension tube L1900mm (for both bottom sides) Top cover tension tube L2450mm Roll up door dropping L1856mm...
  • Page 7 Right pulley system for L150mm front and rear doors Left pulley system for L150mm front and rear doors Clip Front and rear vertical L240mm door rail connection plate Front and rear vertical door rail end plate L220mm (floatable to keep door rail straight) Tension tube end water φ32...
  • Page 8 Front and rear roll up L3.55xW3.46m door cover panel Front and rear fabric tarp 200mm secure pin Tapping screw #12x25mm Scratch resistant tape ▶ W W W . T M G I N D U S T R I A L . C O M P 7 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 9 Step 1 : Base plate positioning and installation.  Installation diagram of expansion bolt. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 8 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 10 Step 2 : Assemble all trusses.  Front truss. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 9 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 11  Second truss. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 0 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 12  Rear truss. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 1 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 13  The rest of the trusses. (2 trusses) Part Part 18x6 ▶ W W W . T M G I N D U S T R I A L . C O M P 1 2 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 14  Lay down all (5) trusses on the ground when the assembly is all completed and before moving to next step, and then wrap (#38) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
  • Page 15 Step 3 : Put up the front truss. (It is suggested to use crane for hoisting) Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 4 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 16 Step 4 : Put up the rest trusses.  Refer to step 3 to put up the rest trusses, connect all purlins (#5) with bolt (#28) and secure all bolts firmly on each span before going to next truss . Part Part ▶...
  • Page 17  Repeat above step to put up all other trusses (from 3rd to 5th truss), and connect all purlins. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 6 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 18  Install the side door frame. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 7 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 19  Install the side door. Align the lock cylinder boss with the hole. Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 8 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 20  Tension cable installation . All cables are diagonally installed on each side of the interval. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 9 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 21 Step 5 : Front and rear trusses to complete. (2 trusses) Part Part 20x2 ▶ W W W . T M G I N D U S T R I A L . C O M P 2 0 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 22 Step 6 : Install front and rear cover panels.  Lift up (#34) cover panels, starting from the center point of the frame (highest ridge point) use ropes (#32) through the grommets to tie the panel to the truss firmly. All grommets need to be tied to the frame as shown. Part Rope shear size ▶...
  • Page 23  Install the front and rear door pressing plate. Part 24x2 ▶ W W W . T M G I N D U S T R I A L . C O M P 2 2 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 24 Step 7 : Install mechanical roll up doors.  Door curtain installation. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 2 3 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 25  Front and rear door installation, please look at the door from inside.  The hand winch (#23) comes with a shorter cable, we call it cable (#B). Part Part 32(B) ▶ W W W . T M G I N D U S T R I A L . C O M P 2 4 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 26 Step 8 : Install roof cover.  NOTE: The cover must be installed on a windless day. DO NOT attempt to install the cover during windy conditions.  When you are ready to install the roof cover, unpack the cover and position it parallel to the building frame on one side.
  • Page 27  After the cover is installed on the roof, insert the plastic pipe (#27) slowly into the grooves on two ends of the cover (not two sides). Part ▶ W W W . T M G I N D U S T R I A L . C O M P 2 6 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 28  Then insert tension tubes (#14,#14A.#14B) in the groove on both sides of the cover bottom. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 2 7 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 29  Stretch and adjust the cover from left and right, back and forth, to make sure it is square and centered. Cut the grooves from inner side facing to the ratchet hardware (#7A), and add tie down straps (#21) to pull the tension tube and tie the strap to the base.
  • Page 30  Complete side door installation. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 2 9 / 3 0 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 31 32(D) After the Installation Walk around and inspect the building periodically to make sure all components are still firmly secured and the whole building is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position. Check the base plates, adjust the ropes and tie downs if required and clean the cover regularly.

This manual is also suitable for:

Tmg-dt2064-pro
