TMG -DT3063-PRO Product Manual

TMG -DT3063-PRO Product Manual

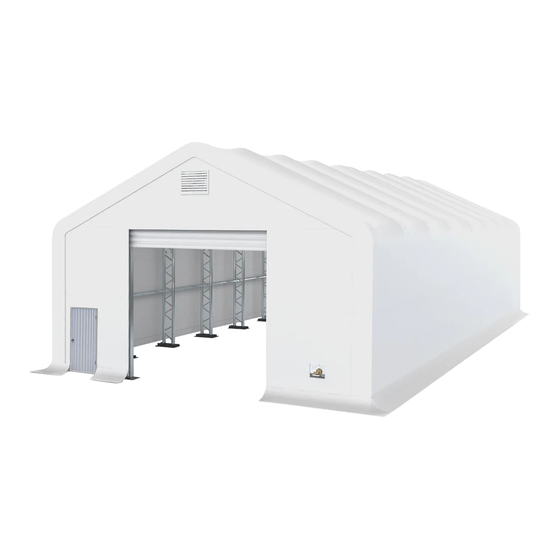

30'x63' dual truss storage shelter

Advertisement

Quick Links

▶ W W W . T M G I N D U S T R I A L . C O M
P 0 / 2 2
T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

Advertisement

loading

Summary of Contents for TMG TMG-DT3063-PRO

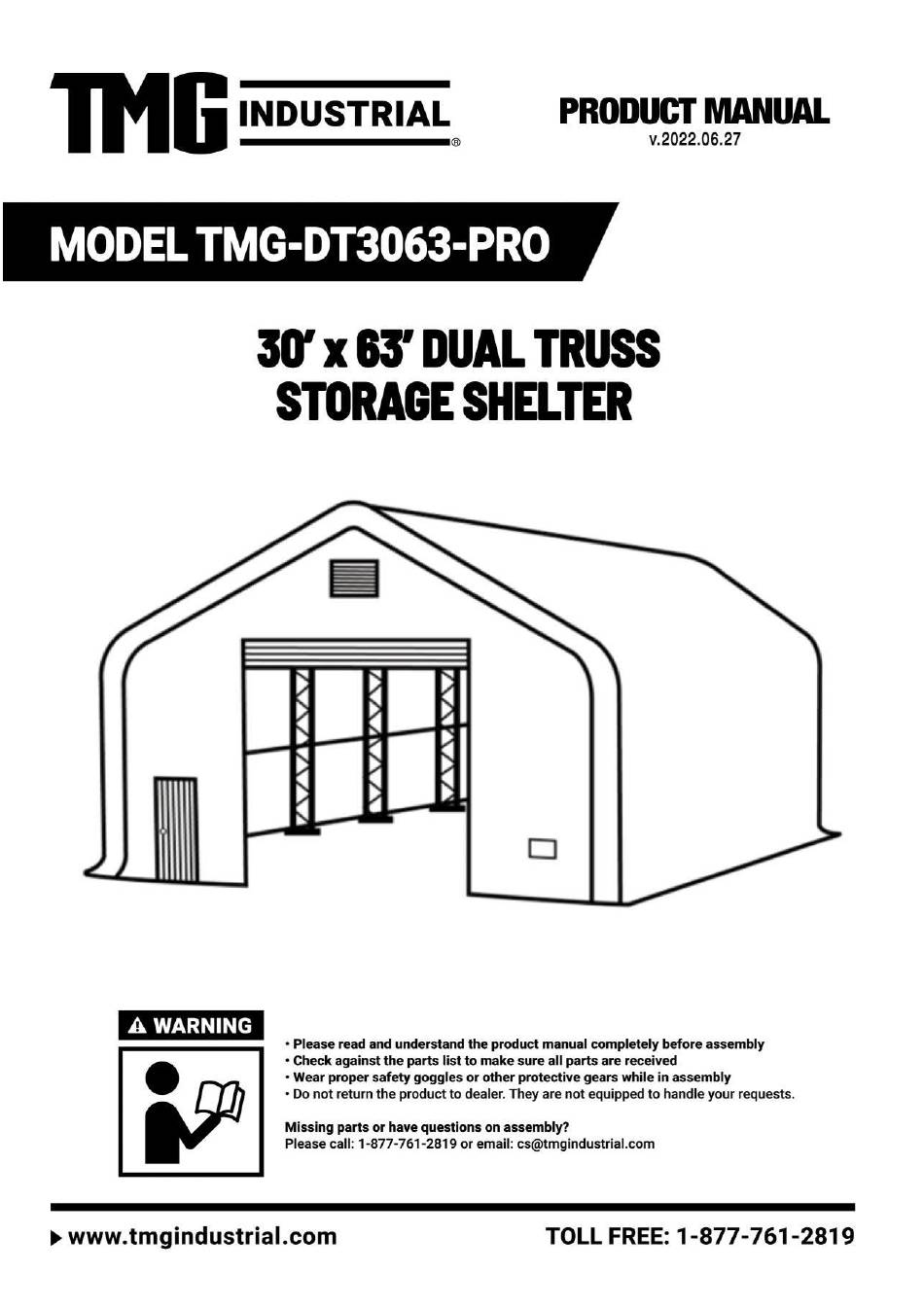

  • Page 1 ▶ W W W . T M G I N D U S T R I A L . C O M P 0 / 2 2 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 2 Main Specifications :  Assembly size : W9.15 x L19.2 x H6 (m) / 30 x 63 x 19.68 (ft)  Ridge height : 6m / 19.68 ft  Peak clearance : 5.4m / 17.7 ft  Front and back door : 4.27 x 3.96 (m) / 14 x 13 (ft) ...
  • Page 3 Frame structure diagram. ▶ W W W . T M G I N D U S T R I A L . C O M P 2 / 2 2 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 4 TMG-DT3063-PRO Part List Parts Graphical Description Length Code Peak arch tube 2570mm (for 7 middle trusses ) Peak arch tube (for front and rear 2570mm truss) Upper rafter tube 2921mm (for middle trusses) Upper rafter tube (for front and rear...
  • Page 5 Right baseplate of front and rear door W150xL200mm frame Baseplates for middle W260xL480mm truss Ratchets (3T) φ16x150mm Expansion bolts Ceiling cross bar 2083mm (front and rear truss) Ceiling cross bar 2233mm (front and rear truss) Front and rear vertical door rail 1984mm (left side upper part) Front and rear...
  • Page 6 Bottom tension bar 1970mm (front and rear truss) Bottom tension bar 815mm Front and rear door hand winch crossing 1984mm tube Top cover tension 1993mm tube Front and rear roll up door dropping tubes 2195mm (to connect #16) Front and rear roll up door dropping tubes 2192mm (to connect #15)...
  • Page 7 Left pulley system for 150mm front and rear doors Front and rear vertical door rail 240mm connection plate Front and rear vertical door rail end plate (floatable to 220mm keep door rail straight) Tension tube end (φ32) water plug (φ48) Tube clamps Tapping screw #12x25mm...
  • Page 8 Step 1 : Baseplate positioning and installation.  Installation diagram of expansion bolt. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 7 / 2 2 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 9 Step 2 : Assemble all trusses.  Front and rear trusses. Part Part 24x2 ▶ W W W . T M G I N D U S T R I A L . C O M P 8 / 2 2 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 10  Middle trusses. (7 trusses) Part Part 24x7 ▶ W W W . T M G I N D U S T R I A L . C O M P 9 / 2 2 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 11  Lay down all (9) trusses on the ground when the assembly is all completed and before moving to next step, and then wrap (#38) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
  • Page 12 Step 3 : Put up the front truss. (It is suggested to use crane for hoisting) Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 1 / 2 2 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 13 Step 4 : Put up the rest trusses.  Refer to step 3 to put up the rest trusses, connect all purlins (#5) with bolt (#28) and secure all bolts firmly on each span before going to next truss . Part Part ▶...
  • Page 14  Repeat above step to put up all other trusses (from 3rd to 9th truss), and connect all purlins. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 3 / 2 2 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 15  Tension cable installation . All cables are diagonally installed on each side of the interval. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 4 / 2 2 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 16 Step 5 : Front and rear trusses to complete. (2 trusses) Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 5 / 2 2 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 17 32x2 Step 6: Install front and rear cover panels  Lift up (#34) cover panel, starting from the center point of the frame (highest ridge point) use ropes (#32) through the grommets to tie the panel to the truss firmly. All grommets need to be tied to the frame as shown. Part Part ▶...
  • Page 18  Install the front and rear door pressing plate. Trim the side door tarp. Part 52x2 ▶ W W W . T M G I N D U S T R I A L . C O M P 1 7 / 2 2 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 19 Step 7 : Install mechanical roll up doors.  Door curtain installation. Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 8 / 2 2 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 20  Front and rear door installation, please look at the door from inside.  The hand winch (#23) comes with a shorter cable, we call it cable (#B). Part Part ▶ W W W . T M G I N D U S T R I A L . C O M P 1 9 / 2 2 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 21 Step 8 : Install roof cover.  NOTE: The cover must be installed on a windless day. DO NOT attempt to install the cover during windy conditions. Part ▶ W W W . T M G I N D U S T R I A L . C O M P 2 0 / 2 2 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 22  After the cover is installed on the roof, insert the plastic pipe (#37) slowly into the grooves on two ends of the cover (not two sides), and then insert tension tubes (#14) in the groove on both sides of the cover bottom, Add the water plug (#25) on the 1st tube (#14) to protect the fabric while the tube is going through and add the water plug on the last tube also to keep water away.
  • Page 23 After the Installation Walk around and inspect the building periodically to make sure all components are still firmly secured and the whole building is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position. Check the base plates, adjust the ropes and tie downs if required and clean the cover regularly.
