TMG PRO Series Product Manual

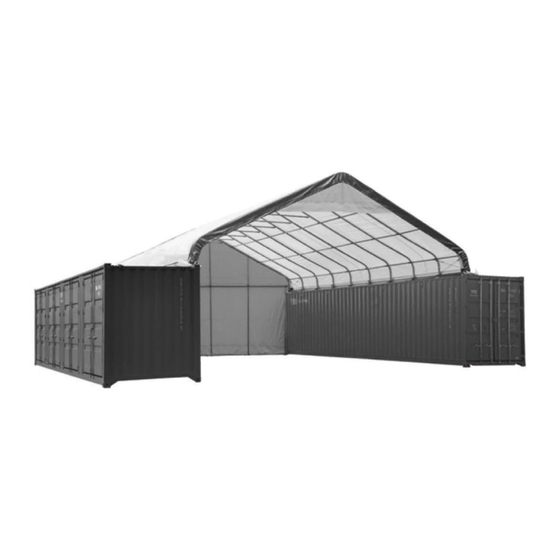

40' x 80' dual truss storage shelter
Hide thumbs Also See for PRO Series:

Advertisement

Quick Links

Download this manual
ddddddddddddddddddddddddddddddddddddd
0/27
TOLL FREE:1-877-761-2819
►www.tmgindustrial.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO Series and is the answer not in the manual?

Questions and answers

Related Manuals for TMG PRO Series

Summary of Contents for TMG PRO Series

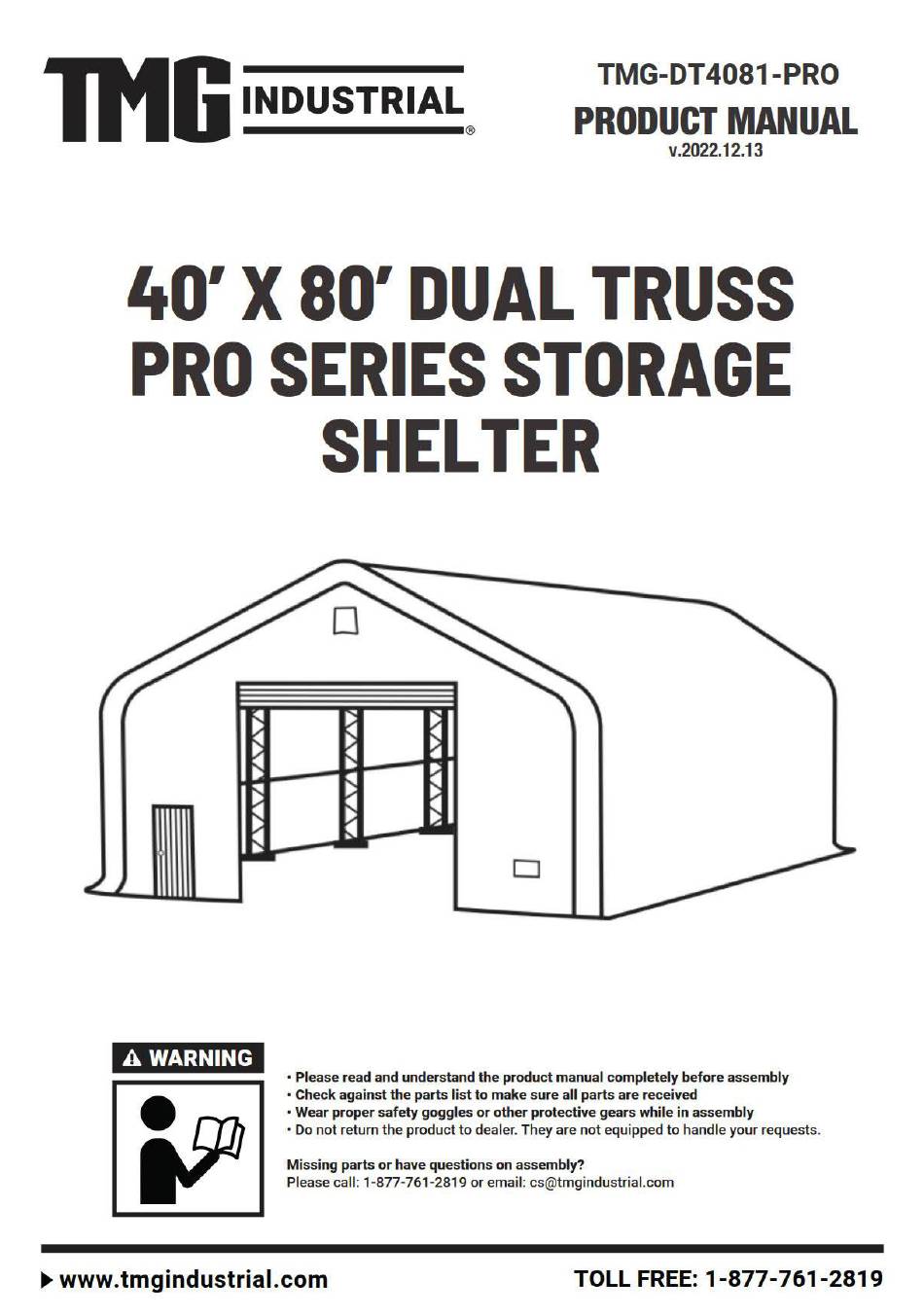

  • Page 1 ddddddddddddddddddddddddddddddddddddd 0/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...

  • Page 2: Main Specifications

    MAIN SPECIFICATIONS : Assembly size : W12.2 x L24 x H6.4 (m) / 40 x 78.7 x 21 (ft)  Outside width : 12.2 m / 40ft, inside width : 11.4 m / 37.4ft, length : 24m / 78.7ft  Ridge peak height : 6.4 m / 21 ft ...

  • Page 3: Installation Steps

    Be aware of the surrounding area. Do not set up the building near snowdrifts, open flames or exposed electrical wires. Do not keep heat sources near the fabric cover. Keep the building surroundings clear at all times. Check the parts list below to make sure all parts are received prior to assembly. TMG-DT4081-PRO PART LIST PARTS GRAPHICAL...
  • Page 4 Sidewall tube L2758mm (right for rear truss） Roof purl in L2440mm (horizontal tube) Base plate for front and rear L520xW260mm truss left corners Base plate for front and rear L520xW260mm truss right corners Left base plate of front and L200xW150mm rear door frame Right base plate of front and L200xW150mm...
  • Page 5 Front and rear vertical door L2255mm rail(right side lower part) Rear vertical door rail L2190mm (left side upper part) Rear vertical door rail L2190mm (right side upper part) Front door cross tubes L1664mm (left and right) Front door upper crossing tubes (connect #12 left and L1513mm right)
  • Page 6 Tarp cover tension tubes on L1993mm both sides Tarp cover tension tubes on both sides (shorter tube, can L900mm be on either end) Front roll up door dropping tubes L2355mm (to connect #16A) Front roll up door dropping tubes L2353mm (to connect #16) Rear roll up door dropping tubes...
  • Page 7 Tie down straps (for #7A and front and rear W38xL800mm arches) Cable connection plate L91mm Pressing plate L2000mm Pressing plate L1000mm Roll up door hand winch 1200lb Wire rope for front door hand φ4xL15m winch Wire rope for rear door hand φ4xL14.2m winch Left pulley system for front...
  • Page 8 Hex bolt and nuts M10x80mm Tension ropes φ8xL160m (tie to front and back doors) bundle Roof fabric tarp cover L24.62xW21.12m Front truss fabric tarp panel L12.2xW6.55m Front roll up door fabric tarp L4.82xW4.56m panel Rear truss fabric tarp panel L12.2xW6.55m Rear roll up door fabric tarp L5.96xW4.53m panel...
  • Page 9 STEP 2 : BASE PLATE POSITIONING AND INSTALLATION. PARTS PARTS PART PART CODE CODE 8/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 10 STEP 3 : INSTALL THE FRONT TRUSS. PARTS PART CODE 9/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 11 STEP 4 : INSTALL THE REAR TRUSS. PARTS PART CODE 10/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 12 STEP 5 : INSTALL INTERMEDIATE TRUSS. PARTS PART CODE 32x9 11/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 13 STEP 6 : WRAP (#38) AROUND THE SHARP POINTS OF THE JOINT TO AVOID FRICTION BETWEEN THE FABRIC AND THE INTERFACE. PARTS PART CODE 12/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 14 STEP 7 : INSTALL THE FRONT TRUSS. PARTS PART CODE 13/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 15 STEP 8 : PUT UP THE 2ND TRUSS, AND CONNECT ALL PURLINS (#5) BETWEEN 1ST AND 2ND TRUSS WITH BOLTS. PARTS PART CODE 14/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 16 STEP 9 : INSTALL ALL OTHER TRUSSES. (FROM 3RD TRUSS TO 11TH TRUSS) PARTS PART CODE 15/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 17 STEP 10 : TENSION CABLE INSTALLATION. PARTS PART CODE 16/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 18 STEP 11 : FRONT TRUSSES TO COMPLETE. PARTS PARTS PART PART CODE CODE 17/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 19 STEP 12 : TRUSS AFTER COMPLETION. PARTS PARTS PART PART CODE CODE 18/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 20 STEP 13 : FRONT AND REAR SMALL SIDE DOOR INSTALLATION. PARTS PART CODE 19/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 21 STEP 14 : FRONT TRUSS FABRIC PANEL INSTALLATION. PARTS PART CODE 20/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 22 STEP 15 : REAR TRUSS FABRIC PANEL INSTALLATION. PARTS PART CODE 21/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 23 STEP 16 : INSTALL THE FRONT DOOR METAL STRIP. (THE FRONT AND REAR MOUNTING METHODS ARE THE SAME) PARTS PART CODE 44x2 22/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 24 STEP 17 : INSTALL THE FRONT MECHANICAL ROLLING SHUTTER DOOR. PARTS PART CODE 23/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 25 STEP 18 : INSTALL THE REAR MECHANICAL ROLLING SHUTTER DOOR. PARTS PART CODE 24/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 26 STEP 19 : INSTALL ROOF COVER. PARTS PART CODE 25/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 27 STEP 20 : TOP CLOTH TENSIONING. PARTS PARTS PART PART CODE CODE 26/27 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 28 STEP 21 : TIGHTEN ROOF COVER ON FRONT AND REAR TRUSS FRAMES. • The roof cover must be stretched and tied to the front and rear truss by rope #34going through flap grommets on the cover. Start from the top center of the truss and go toward both side on each end.

This manual is also suitable for:

Tmg-dt4081-pro
