Summary of Contents for Vivo STAND-TV12H

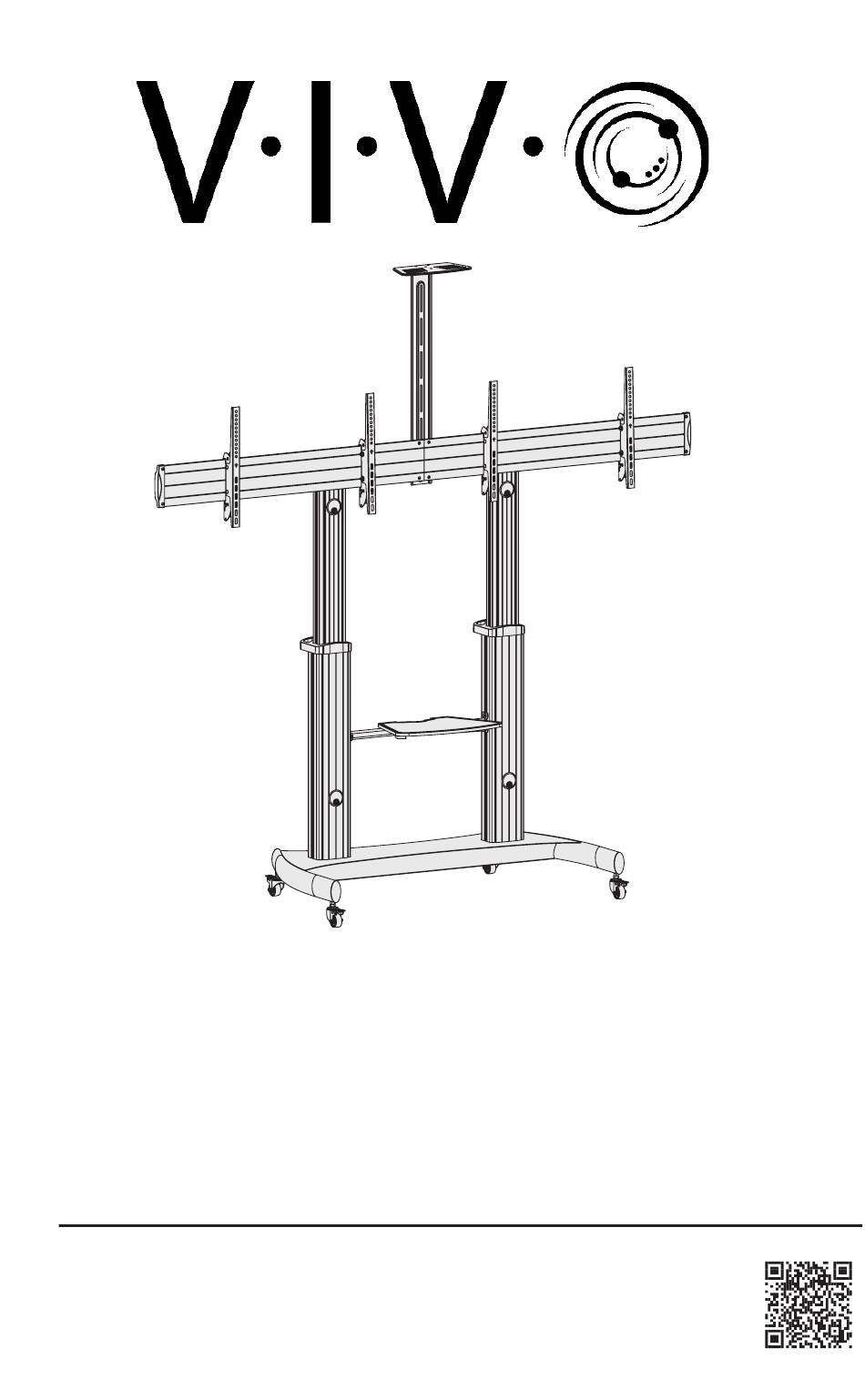

- Page 1 Silver Mobile Dual TV Cart SKU: STAND-TV12H Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-tv12h...
-
Page 2: Package Contents
If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Included Hardware & Tools
ASSEMBLY STEPS Included Hardware & Tools STEP 1 Screw Casters (B) into underside of Base (A). Adjust Casters to sit flat on surface if needed, and tighten nuts using Wrench (C1) as shown. T (x3) S (x2) Q (x4) R (x2) M4x6mm M6x25mm Screw M6x15mm... - Page 4 STEP 3 STEP 4 Secure columns using M8x25mm Screws (X) and tighten with Allen Wrench (B1). Place Columns (E, F) into the cutouts in the base. Slide the Plastic Handles (D) over the inner columns and press firmly in place. X (x8) Lock the casters in place to prevent movement...
- Page 5 STEP 6 STEP 8 Assemble Universal Plates (C) together using Fixing Plates (N), M6x14mm Screws (W) and a Phillips Install M6x25mm Screws with Washer (S) into the back of each column using a Phillips screwdriver. screwdriver. S (x2) W (x4) STEP 7 Attach assembled Universal Plates to the columns with M6x14mm Screws (W) and a Phillips screwdriver.
- Page 6 STEP 9 STEP 10 Secure Support Bar (O) to DVD Shelf (K) using M6x14mm Screws (W), M6x25mm Carriage Bolts (Y) Secure Support Bar (O) to Support Blocks on Columns with M6x25 Screws (V) and Allen Wrench (B1). and Knobs (P). V (x2) W (x2) Y (x2)
- Page 7 STEP 11 STEP 12 Adjust the Shelf (K) to the desired height using the Allen Wrench (B1) before installing the displays Curved Back Screens to the stand. Install Adapter Brackets (G, H) to back of each display using appropriate Screws (M-C, M-D, M-E), Washers (M-F) and Spacers (M-G, M-H), as shown in the diagrams.
- Page 8 Flat Back Screens STEP 13 Install Adapter Brackets (G, H) to back of each display using appropriate Screws (M-A, M-B) and Turn the screws on the underside of Adapter Brackers counter-clockwise to lock screens in place. Turn Washers (M-F). the bolts clockwise to unlock and remove the displays. Padlocks (not included) can be used to prevent the displays from being stolen.
- Page 9 STEP 14 STEP 15 Attach Camera Shelf (M) to Connecting Plate (L) using M4x6mm Flat Head Screws (T) on top and Manage cables using the cable grommets in the columns. M4x6mm Dome Head Screws (U) in back, and a Phillips screwdriver. T (x3) U (x2)
- Page 10 STEP 14 STEP 15 Secure Connecting Plate (L) to the center holes in Fixing Plates (N) using M6x25mm Phillips Adjust the height of the camera shelf and tighten bolts. Head Screws (R), M6 Washers (A1), Spacers (Z), and a Phillips screwdriver. R (x2) A1 (x4) Z (x2)
- Page 11 LAST UPDATED: 10/12/2023 REV2 v2.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
