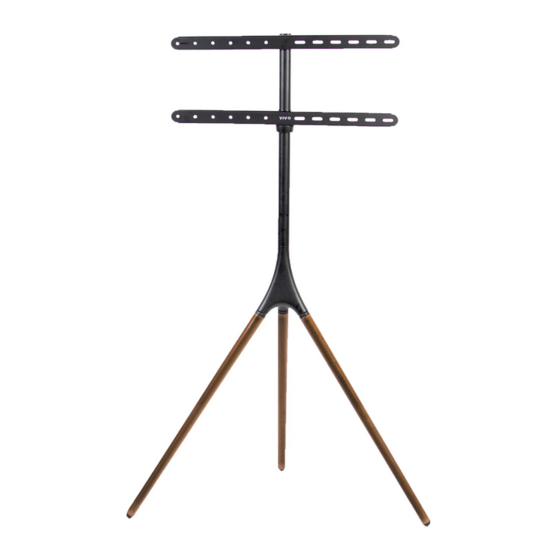

Vivo STAND-TV65A Instruction Manual

Dark walnut easel studio tv stand
Hide thumbs Also See for STAND-TV65A:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Dark Walnut Easel Studio TV Stand
Instruction Manual
SKU: STAND-TV65A
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv65a
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-TV65A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo STAND-TV65A

Summary of Contents for Vivo STAND-TV65A

  • Page 1 Dark Walnut Easel Studio TV Stand Instruction Manual SKU: STAND-TV65A Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv65a GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...

  • Page 2: Package Contents

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.

  • Page 3: Tools Needed

    TOOLS NEEDED Phillips Level Pencil Drill Tape Measure Screwdriver ASSEMBLY STEPS STEP 1 Screw side legs (A) and center leg (B) into base of pole (E). STEP 2 Adjust collar height using the 4mm Allen wrench (H). Recommended 50-150mm NOTE: Please secure the locking collar before attaching the TV screen.
  • Page 4 STEP 3 Remove screw from center clamp of lower VESA bracket (C) and open the clamp. STEP 4 OPTION A: Flat Back Monitor Position VESA brackets horizontally on the back of the TV, making sure upper bracket (D) is on top and lower bracket (C) is below. Secure using screws (M-A or M-B) with square washers (M-F) and D5 Washers (P-G), with security clips (G) installed to top holes.
  • Page 5 STEP 4 (Continued) OPTION B: Large or Curved Back Monitor Position VESA brackets horizontally on the back of the TV, making sure upper bracket (D) is on top and lower bracket (C) is below. Secure using screws (M-C, M-D or M-E) with square washers (M-F) and spacers (M-G, M-H) with security clips (G) installed to top holes.
  • Page 6 STEP 7 OPTION A: Wood Stud Installation Use a stud finder and a level to locate two adjacent studs. Using Security Cable Clamps (P-C) as guides, mark drilling locations on the wall. Drill a 1.6” (40mm) deep hole using a 1/8” (3.5mm) drill bit.
  • Page 7 STEP 7 (Continued) OPTION B: Concrete/ Brick Installation Using Security Cable Clamps (P-C) as guides, mark drilling locations on wall. Drill holes at least 1.6” (40mm) deep using a 9/32” (7mm) drill bit. Insert anchors (P-F) in holes and mount Cable Clamps (P-C) to wall using ST4.8x38 screws (P-E).
  • Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
