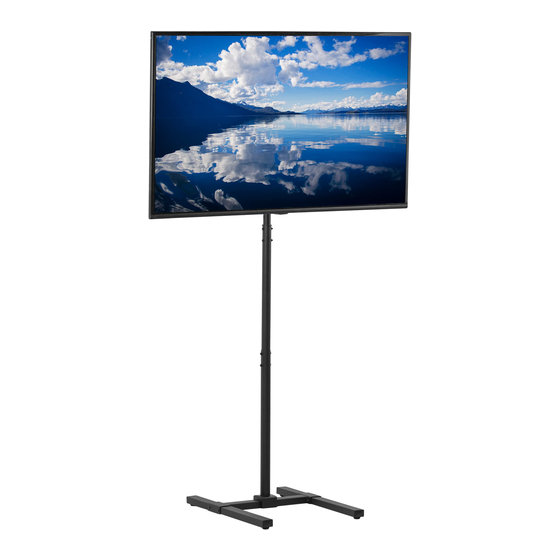

Black TV Stand for Treadmills & Ellipticals
Instruction Manual
SKU: STAND-TV17
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv17
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-TV17
Summary of Contents for Vivo STAND-TV17
- Page 1 Black TV Stand for Treadmills & Ellipticals Instruction Manual SKU: STAND-TV17 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv17 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 44lbs Failure to do so may result in serious injury. (19.96kg) Phillips WARNING: CHOKING HAZARD Screwdriver SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED. ASSEMBLY STEPS STEP 1 Secure Foot Pad (H) to underside of Feet (B). - Page 4 STEP 2 Remove the two screws, four washers, and two nuts from Upper Pole (C) using 5mm Allen Wrench (T-A) and Wrench (T-B). Seperate Center Pole (C) into two segments. STEP 3 Slide Plastic Cover (I) over Lower Pole (D). Assemble the Upper Pole (C) segments using the previously removed hardware and M6x50mm Screws (S-C), M6 Washers (S-E), and M6 Lock Nuts (S-F).
- Page 5 STEP 4 Lift Plastic Cover (I) and connect assembled pole to Base (A) using M6x12mm Screws (S-H) to secure the top. Tighten using 5mm Allen Wrench (T-A). Insert M6x65mm Carriage Bolt (S-D), M6 Washer (S-E), and M6 Lock Nut (S-F) through the front of Base (A). Tighten using Wrench (T-B). Lower Plastic Cover (I).
- Page 6 Use Screws (M-A throught M-D) along with Washers (M-E, M-F) to secure VESA Plate (E) with the adapters to the back of your television. Make sure the “VIVO” logo is right side up. For a curved television, Spacers (M-G) may be required.
- Page 7 STEP 6 To attach the TV to the stand, loosen the nut at the top of the VESA Plate (E) and slide into the slot on top of the mounting plate on Upper Pole (C). Secure the top of VESA Plate (E) to the stand by tightening the nut using Wrench (T-B).
- Page 8 : 1HR 8M help@vivo-us.com (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
