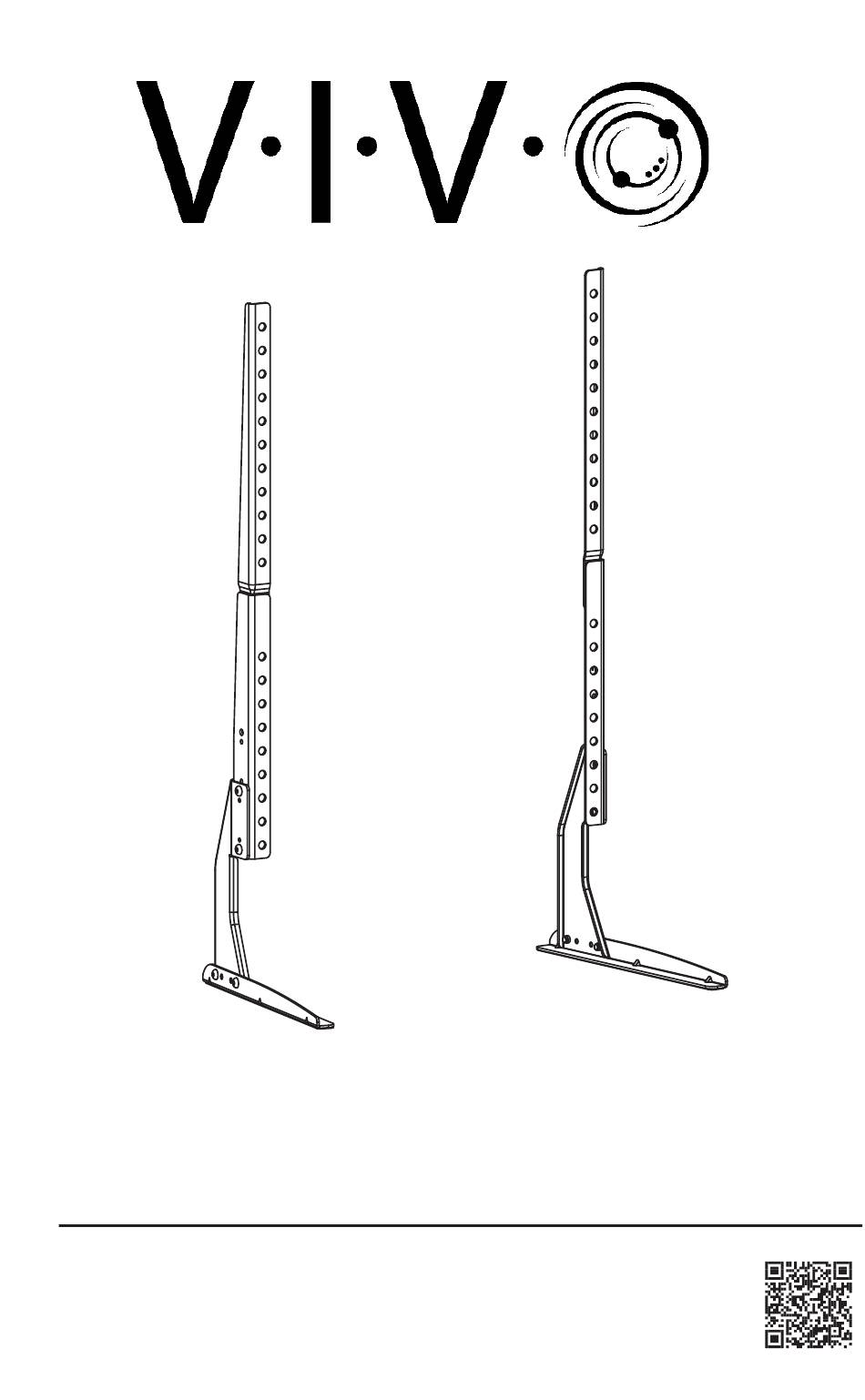

- Page 1 Tabletop TV Stand SKU: STAND-TV00Y Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-tv00y...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 Package Contents A (x1) B (x1) C (x1) D (x1) Left Foot Left Connecting Left Middle Left Top Bracket Upright Upright E (x1) F (x1) G (x1) H (x1) Right Foot Right Connecting Right Middle Right Top Upright Bracket Upright LEFT &...
-
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Remove protective film from Pads (I) and apply them to the bottom of Left and Right Feet (A,E). STEP 2 Secure Left Connecting Bracket (B) to Left Foot (A), and Right Connect Bracketing (F) to Right Foot (E) using M6x10mm Screws (S-A) and 4mm Allen Wrench (T-A). - Page 5 STEP 3 Assemble Right Top Upright (H) to threads on Right Middle Upright (G), and Left Top Upright (D) to threads on Left Middle Upright (C), using M6 Cap Nuts (S-B) and Wrench (T-B). S-B (x4) LEFT & RIGHT PART LABELING: Parts are labeled with an “R”...
- Page 6 STEP 4 Connect Left Middle Upright (C) to Left Connecting Bracket (B) assembly, and Right Middle Upright (G) to Right Connecting Bracket (F) assembly, using M6x10mm Screws (S-A) and M6 Cap Nuts (S-B). Tighten using 4mm Allen Wrench (T-A) and Wrench (T-B). S-A (x4) S-B (x4) LEFT &...
- Page 7 STEP 5 Secure Left and Right Assemblies to your the back of yout screen using appropriate Screws (M-A thru M-G), Washers (M-H thru M-J), and Spacers (M-K thru - M-M). Tighten screws using a Phillips screwdriver. Left Assembly Right Assembly NOTE: When looking towards the back of your display, bracket set “L”...
- Page 8 LAST UPDATED: 12/14/23 REV3L v3.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
