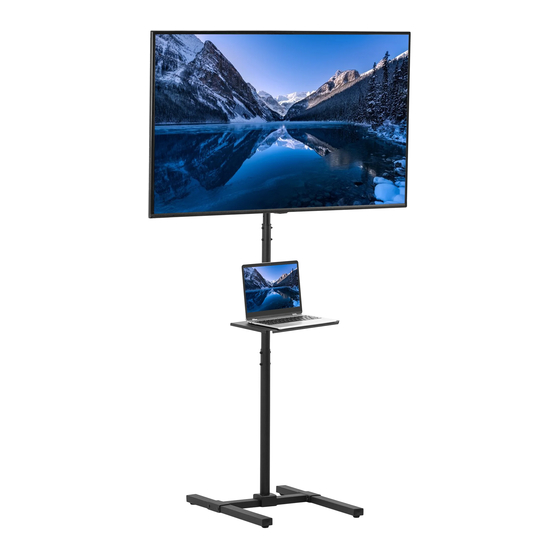

TV Stand with Shelf for Treadmills & Ellipticals
Instruction Manual
SKU: STAND-TV17-S
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-tv17-s
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-TV17-S
Summary of Contents for Vivo STAND-TV17-S
- Page 1 TV Stand with Shelf for Treadmills & Ellipticals Instruction Manual SKU: STAND-TV17-S Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-tv17-s GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Tools Needed
PACKAGE CONTENTS TV STAND A (x1) B (x2) C (x1) D (x1) E (x1) Base Feet Upper Pole Lower Pole VESA Plate F (x2) G (x2) H (x4) I (x1) VESA Adapter VESA Adapter Foot Pad Plastic Cover TV STAND HARDWARE S-A (x8) S-B (x8) S-C (x2) - Page 4 TV STAND | ASSEMBLY STEPS STEP 1 Secure Foot Pad (H) to underside of Feet (B). Turn Feet (B) right side up. Attach Base (A) to Feet (B) using M6x65mm Carriage Bolts (S-D), M6 Washers (S-E), and M6 Lock Nuts (S-F). Tighten using Wrench (T-B).
- Page 5 STEP 2 Remove the two screws, four washers, and two nuts from Upper Pole (C) using 4mm Allen Wrench (T-A) and Wrench (T-B). Seperate Center Pole (C) into two segments. STEP 3 Slide Plastic Cover (I) over Lower Pole (D). Assemble the Upper Pole (C) segments using the previously removed hardware and M6x50mm Screws (S-C), M6 Washers (S-E), and M6 Lock Nuts (S-F).
- Page 6 STEP 4 Lift Plastic Cover (I) and connect assembled pole to Base (A) using M6x12mm Screws (S-H) to secure the top. Tighten using 4mm Allen Wrench (T-A). Insert M6x65mm Carriage Bolt (S-D), M6 Washer (S-E), and M6 Lock Nut (S-F) through the front of Base (A). Tighten using Wrench (T-B). Lower Plastic Cover (I).
- Page 7 STEP 5 (Option A) VESA Plate Only Use Screws (M-A or M-B) along with M5 Washers (M-E) to attach VESA Plate (E) without the adapters to the monitor. STEP 5 (Option B) VESA Plate with Adapters For TVs with VESA mounts at 200mm x 200mm or 200mm x 100mm, VESA Adapters (F, G) are required. Attach VESA Adapters (F,G) to VESA Plate (E) using M5x10mm Screws (S-A) and M5 Nuts (S-B).
- Page 8 Use Screws (M-A throught M-D) along with Washers (M-E, M-F) to secure VESA Plate (E) with the adapters to the back of your television. Make sure the “VIVO” logo is right side up. For a curved television, Spacers (M-G) may be required.
- Page 9 STEP 6 To attach the TV to the stand, loosen the nut at the top of the VESA Plate (E) and slide into the slot on top of the mounting plate on Upper Pole (C). Secure the top of VESA Plate (E) to the stand by tightening the nut using Wrench (T-B).
- Page 10 SHELF | ASSEMBLY STEPS STEP 1 Loosely install M6x60mm Screws (S-I) to the Shelf (J) using 5mm Allen Wrench (T-C).
- Page 11 STEP 2 Attach Shelf (J) to assembled TV stand by sliding the M6x60mm Screw Heads (S-I) into the keyhole slots on Clamping Plate (K). Fully tighten using 5mm Allen Wrench (T-C).
- Page 12 : 1HR 8M help@vivo-us.com (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
