Function Buttons
The handset supports three flexible function buttons. Determine which features, if
any, should be programmed on the handsets. These assignments should emulate
assignments on the user's wired set.
2.2 Assign Extension Numbers
The wire contractor should inform the system administrator which port numbers
have been designated for the handsets.
The system administrator may use the Extension Assignments Worksheet at the end
of this document to track the port numbers, extensions, users, and features assigned
to handsets.
2.3 The SpectraLink Wireless Telephone Display
The Link Wireless Telephone has a two-line, 16-character alphanumeric display.
Certain characters may be used by the system that are not implemented in the
handset. Flashing characters are not implemented on the handset, nor is rolling or
scrolling of text.
Although some desksets do not have a display, any display information sent by the
system will be displayed on the handset.

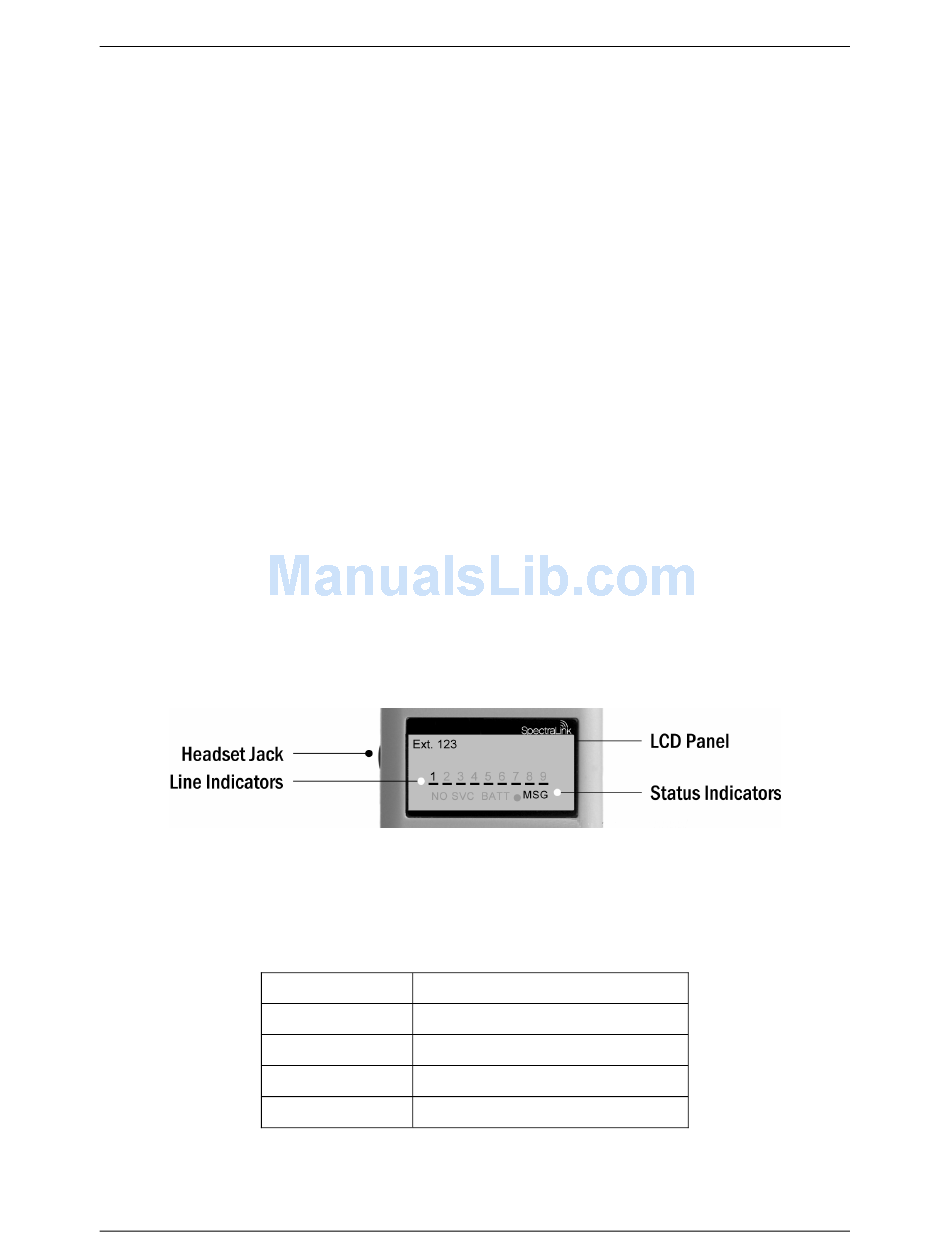

Handset Icons

The line indicators are associated with line access keys. The status indicators are
associated with voicemail (
( ). In addition, a left or right arrow is displayed when the screen can be
NO SVC
toggled either left or right to display more characters as described above.
When lines are programmed as shown on the key-map diagrams, the numeral icons
on the handset display will be mapped to any deskset LEDs associated with the
corresponding feature keys. The icons will be displayed as follows:
Line State
On-hook
Off-hook
Ringing
On hold
Part Number: 72-0171-10-C.doc
), low battery function (
MSG
Link PTB450 Display
Handset Line Status Icon State
Off
On
Fast flash
Slow flash
LinkPlus Interface Guide
Mitel SX-50, -200, -2000 System
), and service interruption
BATT
