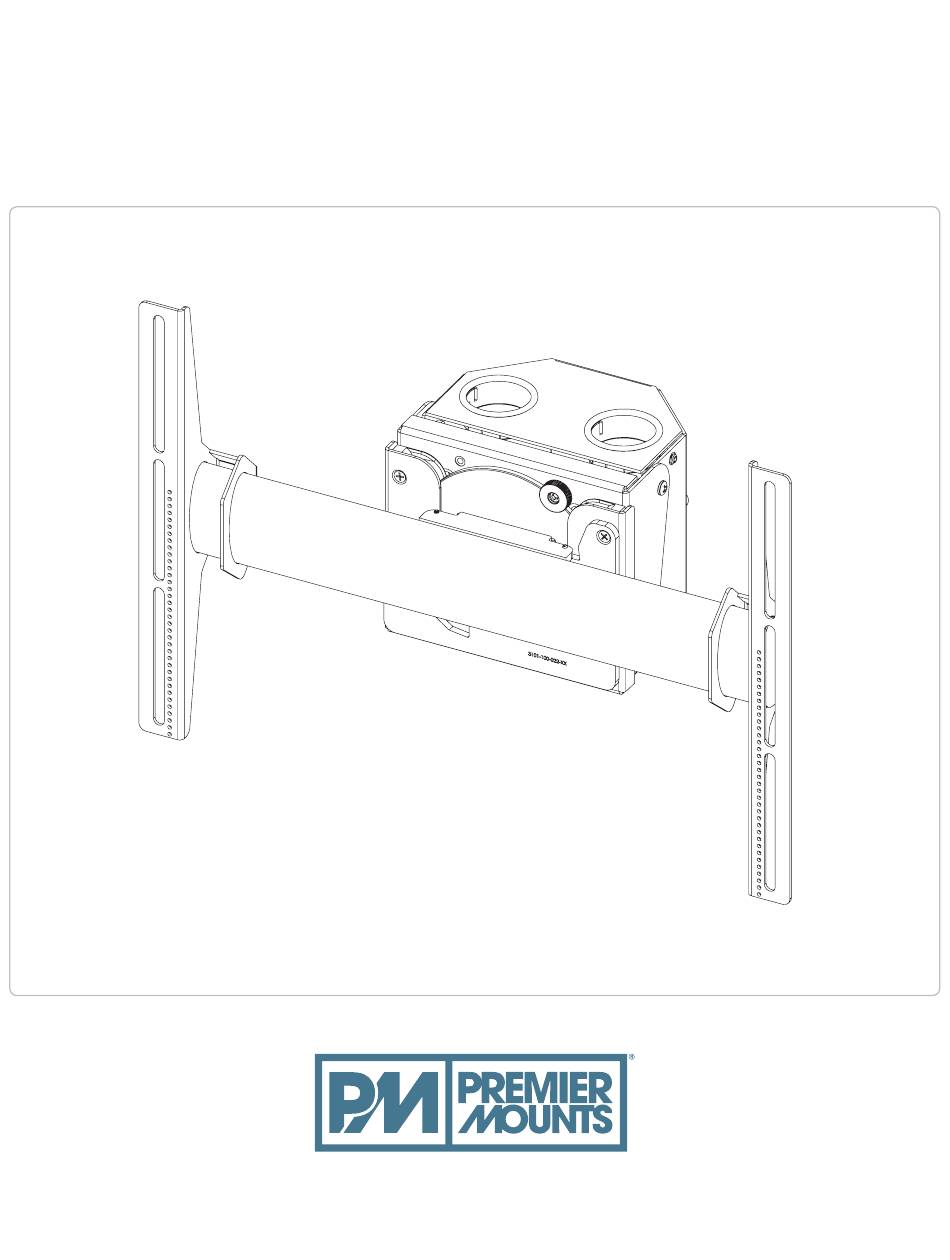

- Page 1 RTM-S Installation Guide premiermounts.com | p. 800.368.9700 | e. orders@premiermounts.com 500 W Central Ave, Suite A, Brea, CA 92821 USA...
-
Page 2: Weight Limit
COMPLETELY UNDERSTOOD. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY... -
Page 3: Included Components
RTM-S Installation Guide Included Components: M5 Security Allen Universal Spacer 5/32" Allen Key Griplate™(Qty.4) Straw (Qty.1) Key (Qty.1) (Qty.8) (Qty.1) Mounting Block (Qty.1) M6 x 25mm M6 x 12mm Button M6 Lock Washer M10 x 30mm Screw M4 x 16mm Screw Flat Screw (Qty.3) -
Page 4: Selecting The Mounting Hardware
RTM-S Installation Guide Tighten the four (4) pre-installed M8 set screws using the supplied 5/32" Allen Key. Selecting the Mounting Hardware Insert a small straw or toothpick into the threaded inserts found on the Use a pencil to mark the depth of the threaded insert on the small straw or toothpick. - Page 5 RTM-S Installation Guide Bottom Slide the mounting brackets into the cross bar. M4, M6, or M8 screws Griplate™ (Universal Washer) Universal Spacer (Optional) Align the brackets to the display mounting holes. Use the depth measuring straw to determine the ap- propriate hardware.
- Page 6 RTM-S Installation Guide M8 x 10mm Set Screw Center the cross bar to the display and tighten the two (2) M8 x 10 Set Screws using the 5/32" Allen Key to secure the brackets. M6 x 25mm Flat Head Rotational Stop 1.
- Page 7 RTM-S Installation Guide Two persons are recommended for this step. Lift the display bar and place the disk it into the receiver plate. Install the M6 Knurl Knob removed from step 1 to secure the cross bar from dislodging. premiermounts.com | p. 800.368.9700 | e. orders@premiermounts.com...
- Page 8 RTM-S Installation Guide M4 x 8mm Set Screw Level Level Adjust the level of the display arms by loosen/tighten (2) M4 x 8mm Set Screw. Tension Screw is attained. premiermounts.com | p. 800.368.9700 | e. orders@premiermounts.com Page 8...
- Page 9 How State Law Applies Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind.
