Summary of Contents for Premier Mounts Rotary Series

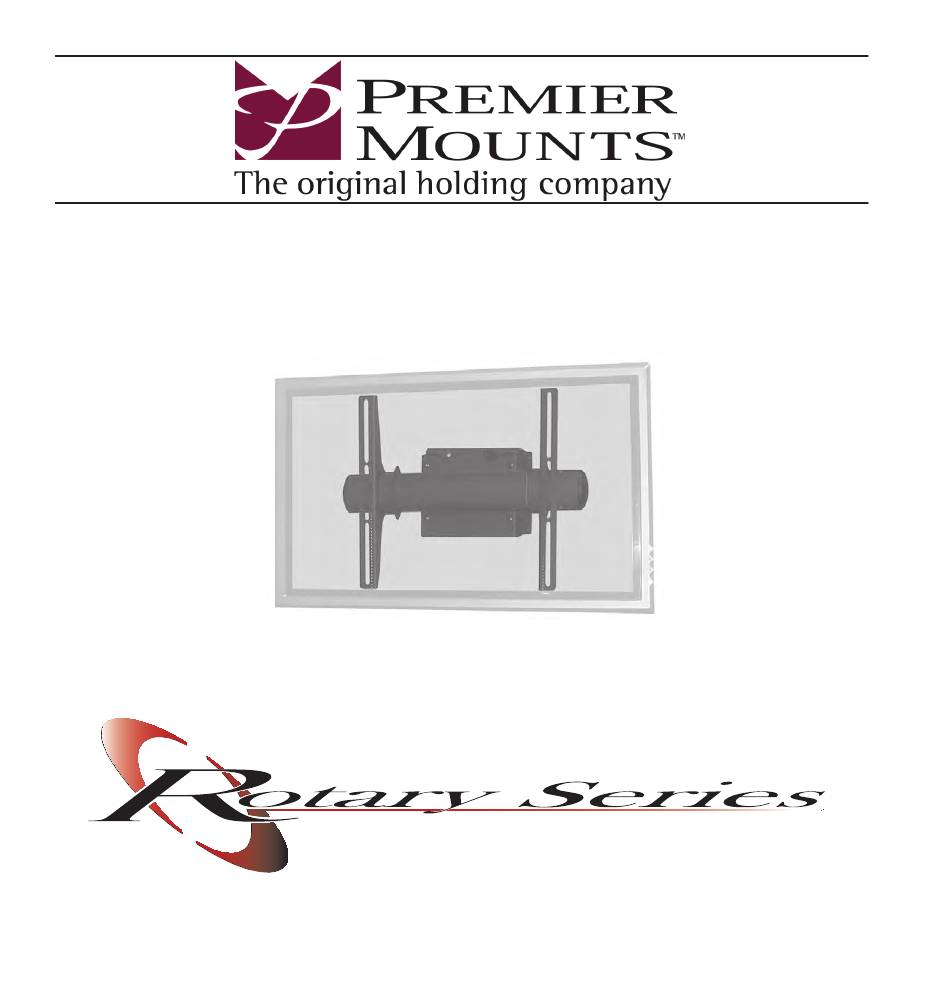

- Page 1 Installation Instructions Installation Instructions Installation Instructions Installation Instructions Rotary Tilt Mount Model: RTM-S...
-
Page 2: Parts List
This mount is shipped with all installation hardware and components. Make sure that none of NOTE: these parts are missing and/ or damaged before beginning installation. If there are parts missing and/or damaged, please stop and contact Premier Mounts (800) 368-9700. Griplate™ (Qty 8) Universal... - Page 3 RTM-S Parts List (Cont.) (Qty 8) (Qty 8) M4 x 16 M6 x 20 M8 x 35 (Qty 8) (Qty 8) M4 x 25 M8 x 45 (Qty 8) (Qty 8) M6 x 30 (Qty 8) M5 x 12 M6 x 45 (Qty 8) M8 x 70 (Qty 4)
- Page 4 RTM-S Parts List (Cont.) Nylon spacers and flat washers NOTE: The nylon spacers may be stacked to achieve proper spacing. 1/4" Nylon spacers 1" Nylon spacers 5/16" Flat washers 1/2" Nylon spacers 1/4" Nylon spacers (metal) (large) (large) (Qty 8) (small) (Qty 8) (Qty 8)
-
Page 5: Thread Depth Indicator
RTM-S Thread Depth Indicator Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat panel to make sure the inserts measure the same full depth and mark it (Figure 1). Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied). The screw length must not bypass the marking. -
Page 6: Mount Installation
RTM-S Mount Installation The installation instructions that are contained in this manual refer only to the RTM-S. The NOTE: installation instructions for the various bases that are used with the RTM-S will be included with those products. Prior to installing the RTM-S, the mounting configuration must already be assembled (base, NOTE: support poles, etc.). - Page 7 RTM-S Universal Mounting Bracket Assembly 1. Place the universal bracket bar and the universal brackets on a flat surface. 2. Slide the universal brackets onto the universal bracket bar (as shown below) with the set screws facing up. At this time, do not tighten the set screws that are located on the universal bracket. 3.
- Page 8 RTM-S 6. Lower the universal bracket bar and display into the cradle (as shown to the left). Nylon Sleeve NOTE: The circular portion of the universal bracket bar must rest inside the nylon sleeve. If seated improperly, the operation of the RTM-S will be hindered and the nylon sleeve will become damaged.
- Page 9 RTM-S Display Orientation The RTM-S will allow the user to adjust the display a full 360°. WARNING: BEFORE ROTATING THE RTM-S, MAKE SURE THAT THE M6 KNURL KNOB IS SECURELY FASTENED TO THE RTM-S. ALSO, PLEASE MAKE SURE YOU ALLOW ENOUGH CABLE AND WIRE CLEARANCE FOR FULL ROTATION.
-
Page 10: Optional Configurations
RTM-S Optional Configurations PSD-EB PSD-BW PSD-TS Technical Specifications All measurements are in inches (mm). Page 12 Installation Instructions... - Page 11 RTM-S Addendum RTM-S ADDENDUM: The RTM-S is shipped with the hand crank in the storage position. The hand crank must be removed in order for the RTM-S to be adjusted. After the adjustments have been made, return the hand crank to the storage position.
