Table of Contents
Advertisement
NORTH AMERICA
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
USA and Canada -
Phone: 800-368-9700
Fax: 800-832-4888
Other Locations - Phone: (001)-714-632-7100; Fax: (001)-714-632-1044
©Premier Mounts 2008
9531-008-001-05

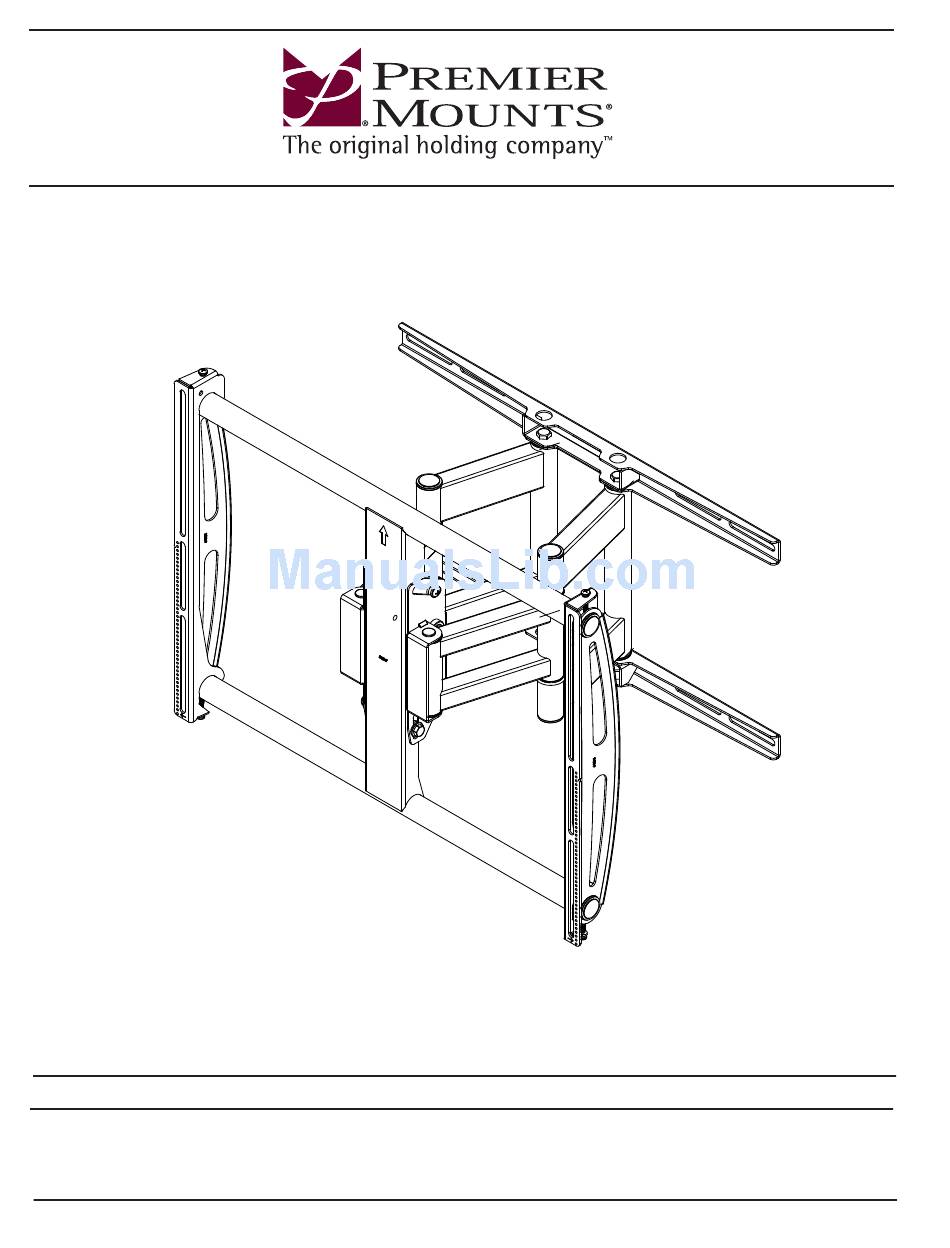

INSTALLATION INSTRUCTIONS

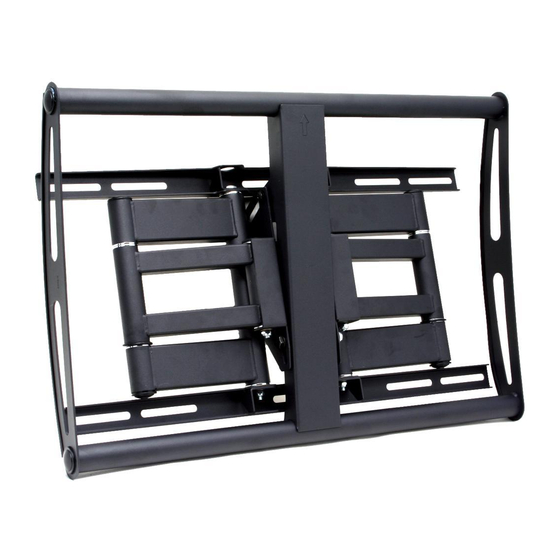

AM250/AM250-FLIP
Universal Swingout Arm
EUROPE
Swallow House,
Shilton Industrial Estate,
Shilton, Coventry, England CV79JY
Phone: +44 (0) 2476 614700
Fax: +44 (0) 2476 614710
AUSTRALIA, NEW ZEALAND,
OCEANIA (Distributor)
P.O. Box 295
Mordialloc Victoria 3195
Australia
Phone: 03 9586 6330
www.premiermounts.com.au
Advertisement
Table of Contents
Related Manuals for Premier Mounts AM250
Summary of Contents for Premier Mounts AM250
-
Page 1: Installation Instructions
NORTH AMERICA 3130 East Miraloma Avenue Anaheim, CA 92806 USA USA and Canada - Phone: 800-368-9700 Fax: 800-832-4888 Other Locations - Phone: (001)-714-632-7100; Fax: (001)-714-632-1044 ©Premier Mounts 2008 9531-008-001-05 AM250/AM250-FLIP Universal Swingout Arm EUROPE Swallow House, Shilton Industrial Estate, Shilton, Coventry, England CV79JY... -
Page 2: Table Of Contents
DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR... -
Page 3: Parts List
This mount is shipped with all installation hardware and components. Make sure that none of these parts are missing and/ or damaged before beginning installation. If there are parts missing and/or damaged, please stop and contact Premier Mounts (800) 368-9700. Swingout Arm (Qty 1) 5/16"... - Page 4 AM250 Parts List (Cont.) (Qty 8) M4 x 16 (Qty 4) M4 x 25 (Qty 8) M5 x 12 (Qty 6) M5 x 16 (Qty 6) M5 x 20 (Qty 4) M5 x 25 M5 x 50 M6 x 12...
- Page 5 1/4" Nylon spacers (large) (Qty 6) 1/2" Nylon spacers (large) (Qty 12) 5/16" Flat washers (metal) (Qty 6) 1" Nylon spacers (Qty 6) 1/4" Nylon spacers (small) (Qty 6) AM250 9/16" Nylon spacers (Qty 6) 5/16" Nylon sleeves (Qty 4) Page 5...
-
Page 6: Thread Depth Indicator
AM250 Thread Depth Indicator Step 1. Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat panel to make sure the inserts measure the same full depth and mark it (Figure 1). Step 2. Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied). -
Page 7: Mount Installation
If the studs are 16”, 18” or 24” apart, use two 3” lag bolts for the top row of mounting points and two 3” lag bolts for the lower row of mounting points. Step 1 Determine where to mount the AM250/AM250-FLIP. Use a stud finder to find the exact center of each stud. Step 4... -
Page 8: Concrete Mounting
AM250 Concrete Mounting Concrete anchors must be used for concrete installation. They can be purchased at your local hardware store. The mounting surface must be a minimum 6” thick. Step 1. Begin by placing the mount into position against the wall, keeping it level. -
Page 9: Attaching The Display
HEAVY AND, IF DROPPED, WILL DAMAGE THE MOUNT, THE DISPLAY, AND/OR PERSONNEL. Installation Instructions Step 1. Place the universal brackets and the display Upper Mounting over the upper mounting bars of the AM250. Lower Mounting Upper Mounting Step 2. Lower the universal mounting brackets and display onto the mounting bars of the AM250. -
Page 10: Securing And Leveling The Display
Securing and Leveling the Display Once the brackets have been placed over the upper mounting bars on the AM250, use two (2) M6 x 30mm Phillips Head locking screws to secure the brackets to the bottom of the mounting bars. This will prevent lateral shift movement. Level your flat panel by installing the two additional M6 x 30mm Phillips Head screws to the upper bracket assembly as shown below. -
Page 11: Technical Specifications
Technical Specifications All measurements are in inches (mm). 12.53 (317.5) 3.55 (90.17) Installation Instructions 28.00 (711.20) 28.79 (731.79) 3.00 (76.20) 27.00 (685.80) 29.64 (752.86) 14.03 (356.36) AM250 20.40 (510.54) 16.00 (406.40) 1.50 (38.04) Page 11... -
Page 12: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
