Premier Mounts GearBox GB-MS2 Installation Instructions

Storage GearBox™ for CTM-MS2 Tilting Mount Installation Instructions

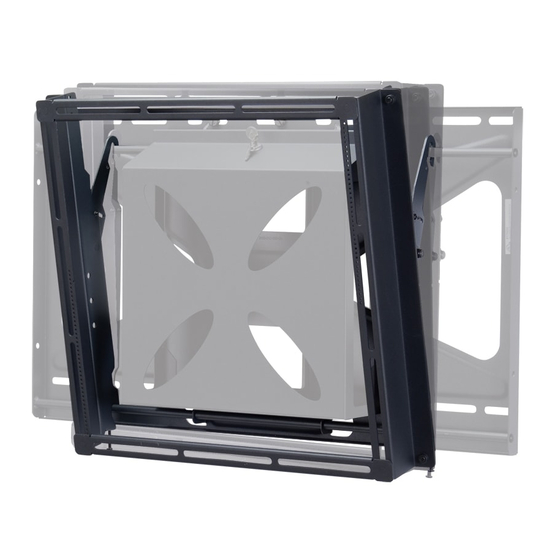

The storage GearBox™ for the CTM-MS2 tilting mount (GB-MS2)
securely holds a PC tower or similar-sized A/V equipment in between
the flat-panel and mount. This space-saving feature helps efficiently
organize your A/V installation for many applications, such as digital
signage or corporate use. The GB-MS2 is a great alternative to storing
electronics in false ceilings or bulky floor boxes.

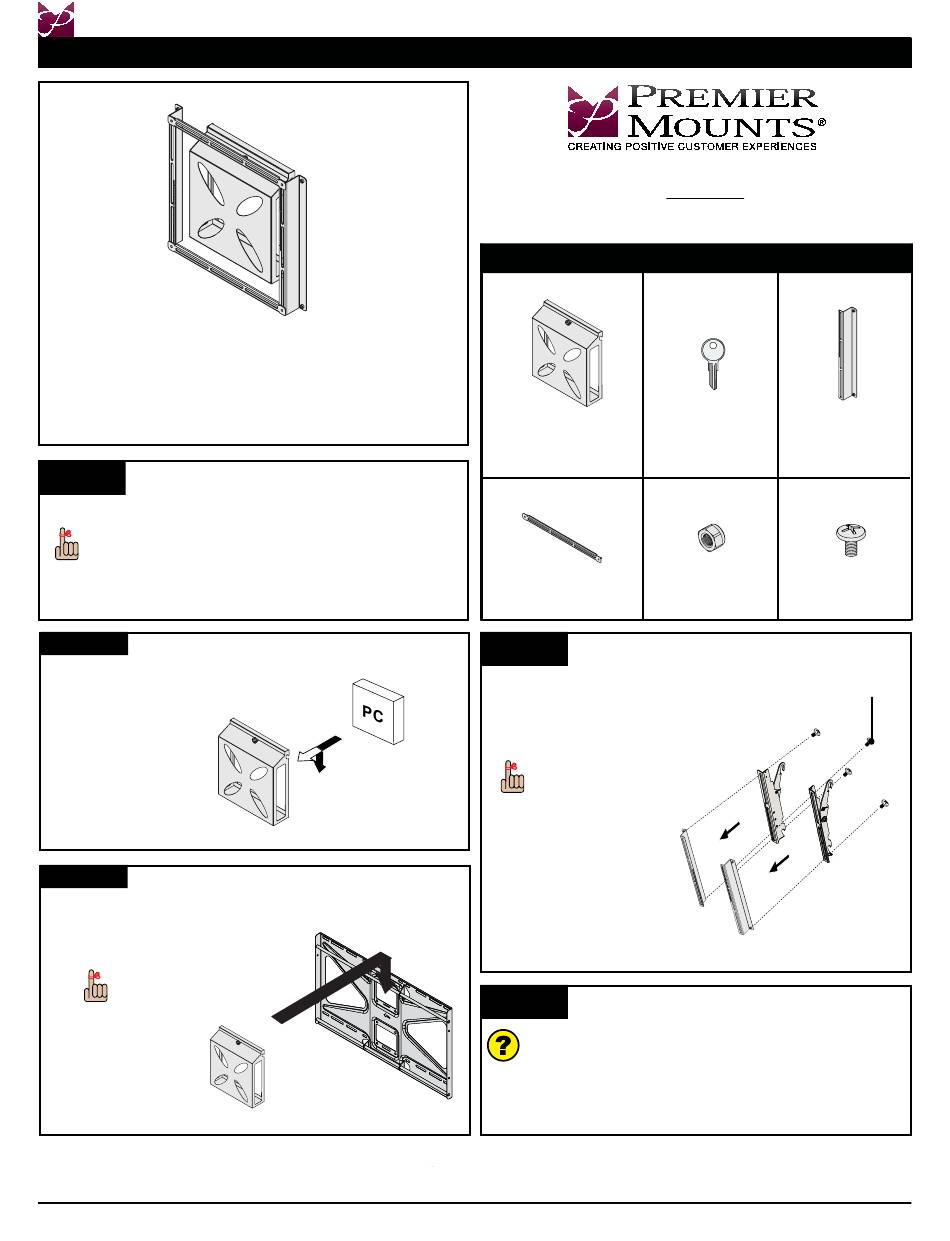

Step 1
Follow the instructions in the CTM-MS2 manual up to page 7.
Stop at the end of the manual's "Installing the Wall Plate" section.
Step 2
Insert a PC tower or similar-sized A/V
equipment into the media box.
Step 3
➊
Insert the media box between the
brackets and the wall plate.
➋
Hook the media box on the top rail of
the wall plate.
The lock on the media box
must be in the unlocked
position, or else it will not fit
over the rail.
• All trademarks are the property of the respective trademark owners.
Installation Instructions
9541-001-011-00
Flat-panel and brackets not shown
Visit the Premier Mounts website at http://www.mounts.com
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
USA and Canada
Phone: 1.800.368.9700
Fax: 1.800.832.4888
Other Locations – Phone: (001).714.632.7100; Fax: (001).714.632.1044 ©Premier Mounts 2011
Parts List
Media Box
(Qty 1)
Horizontal Support Bracket
(Qty 2)
Step 4
Use four (4) M8 x 12mm pan Phillips
screws to attach two (2) extension
brackets to the mounting brackets of
the CTM-MS2 as shown.
Insert the screws through the
back of the PEM nuts on the
extension brackets.
Mounting brackets are included with the CTM-MS2.
Screws are not to scale.
Step 5
Is the mounting pattern on the flat-panel wider than the media box?
If Yes, do not use the horizontal support brackets. Skip to Step 7.
If No, continue to Step 6.
Key Extension Bracket
(Qty 1) (Qty 2)
M8 x 12mm
M8 Nylon Nut
Pan Phillips Screw
(Qty 4)
(Qty 4)
M8 x 12mm pan Phillips screw
Page 1
GB-MS2
