Summary of Contents for Premier Mounts P5080F

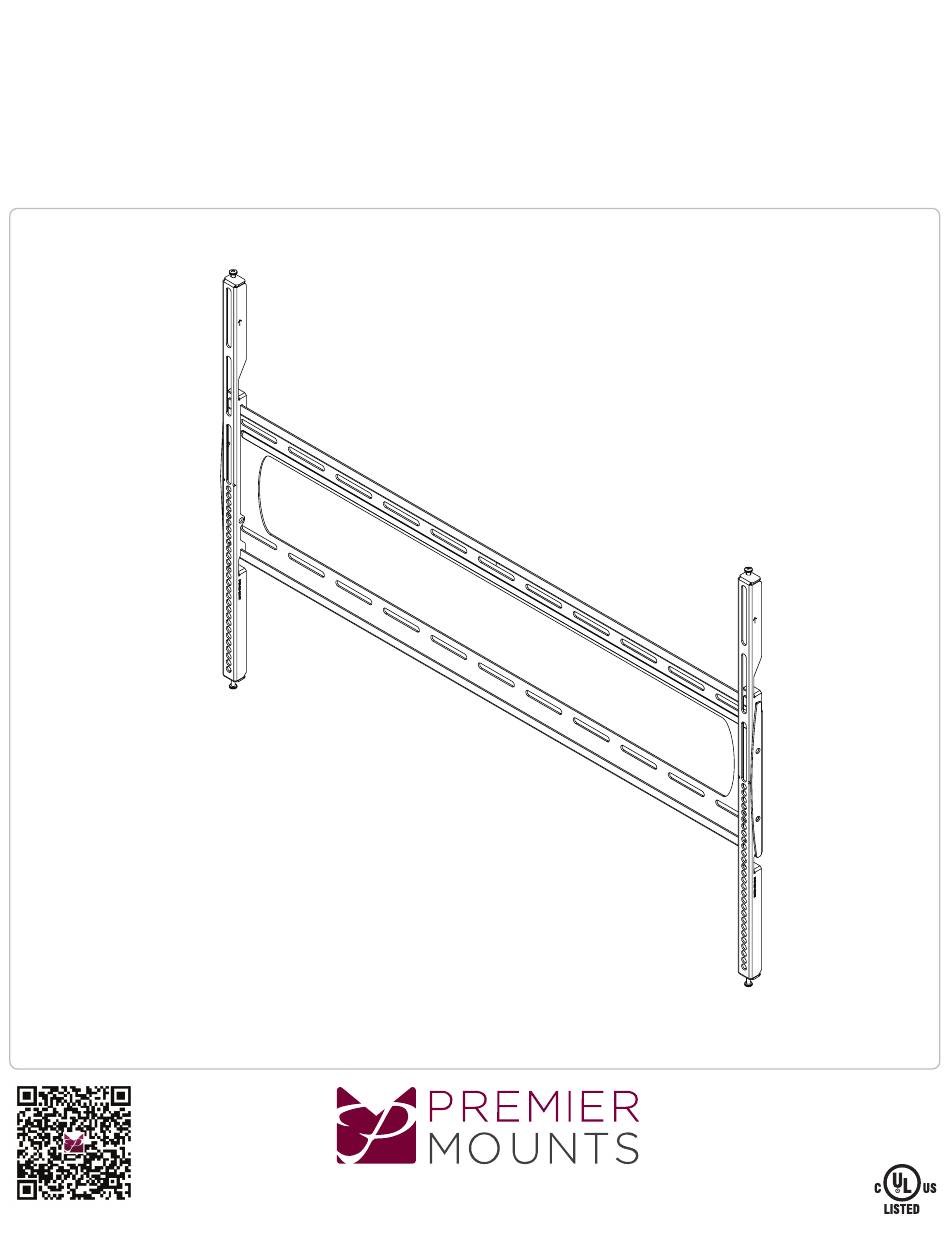

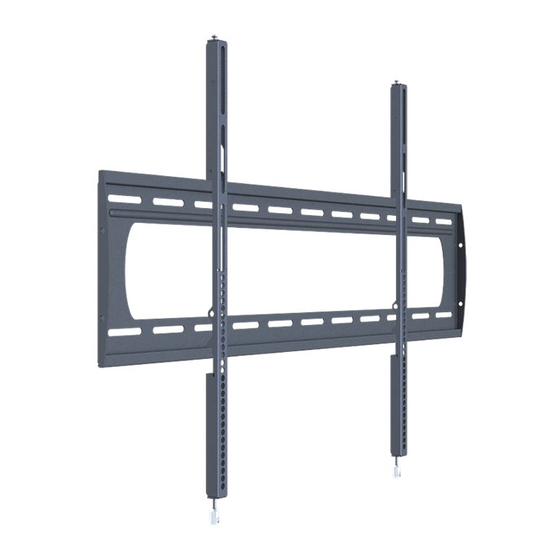

- Page 1 P5080F Installation Guide Low-Profile Mount for Flat-Panels www.mounts.com | North America 800.368.9700 | International +1-714-632-7100 1321 S. State College Blvd., Fullerton, CA 92831 USA...
- Page 2 LES SUPPORTS PREMIER MOUNTS NE GARANTISSENT PAS CONTRE LES DOMMAGES CAUSÉS PAR L’USAGE DU PRODUIT DE MONTAGE PREMIER MOUNTS À D’AUTRES FINS QUE CELLES POUR LESQUELLES IL A ÉTÉ CONÇU OU DES DOMMAGES CAUSÉS PAR DES ACCESSOIRES OU DES MODIFICATIONS NON AUTORISÉS, ET NOUS NE POUVONS PAS ÊTRE TENUS RESPONSABLES DES DOMMAGES, PLAINTES, RÉCLAMATIONS, POURSUITES, ACTIONS OU CAUSES D’ACTION DE N’IMPORTE...
-
Page 3: Included Components
P5080F Installation Guide Included Components Wall Mount Bracket M6 x 250 mm (Qty 1) (Qty 2) (Qty 4) 5/16” Flat Washers Universal Spacers Lock-it Barrel Thread Depth Indicator Universal Washers (Qty 6) (Qty 8) (Qty 1) (Qty 1) (Qty 4) Finned Anchor 5/16”... -
Page 4: Wood Stud Installation
P5080F Installation Guide Introduction Directional Mounting Arrow The Directional Mounting Arrow stamped into the top of the P5080F wall mount indicates which edge is the top. Wood Stud Installation Minimum of 2 by 4 wood stud to be used Minimum de 2 par 4 bois goujon pour être utilisé... - Page 5 P5080F Installation Guide Place the wall plate against the wall and align it with the pilot hole. Insert one (1) 5/16″ x 3″ lag bolt and one (1) 5/16″ washer into the up per right mounting hole and tighten using a socket wrench and 1/2” socket.
- Page 6 P5080F Installation Guide Concrete Installation Two people are recommended for this step: one person to level the wall plate and another person to mark the mounting locations. Il est recommandé deux personnes pour cette étape : une personne pour niveler la sablière et une autre personne pour marquer les emplacements de montage.
-
Page 7: Selecting The Mounting Hardware
P5080F Installation Guide Selecting the Mounting Hardware Insert a small straw or toothpick into the threaded inserts found on the back of the flat-panel. Use a pencil to mark the depth of the threaded insert on the small straw or toothpick. -
Page 8: Universal Washer Installation
If No, skip to the “Locking and Leveling Screw Installation” section. Universal Spacer Installation Premier Mounts’ Universal Spacers allow you to attach the mounting bracket to flat panels which have recessed or uneven mount points. Each Universal Spacer adds 1/4” to the distance between the mounting bracket and your flat panel. - Page 9 P5080F Installation Guide Locking and Leveling Screw Installation Leveling Screw Installation You must install the leveling screws before you attach the mounting bracket to the back of the flat panel. The leveling screws consists of two (2) M6 x 250mm screws.
-
Page 10: Attaching The Mounting Bracket To The Flat Panel
P5080F Installation Guide Lock-it™ Security Barrel Installation (Optional) Optional security configurations include: - PCB-CSL1 (sold separately) - Padlock (Combination or Keyed; commercially available) Mounting Tab Please read the following directions to install the security barrel: 1) Remove the locking screw from the mounting bracket. - Page 11 P5080F Installation Guide Attaching the Flat Panel to the Wall Plate This section requires two people. Cette section exige deux personnes. Do not release your flat panel until you are certain that top and bottom hooks of both mounting brackets are securely seated on the upper and lower mounting rails of the wall panel.
- Page 12 P5080F Installation Guide Utilizing the Security Barrel Your P5080F Mount includes one (1) Security Barrel which can provide additional theft deterrence for your flat panel. PCB-CSL1 Security Cable 1) Thread the cable through the hole on the security barrel. 2) Attach the PCB-CSL1 locking mechanism and secure it using the supplied key.
- Page 13 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Premier Mounts intends to make this manual accurate and complete. However, Premier Mounts makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product.
