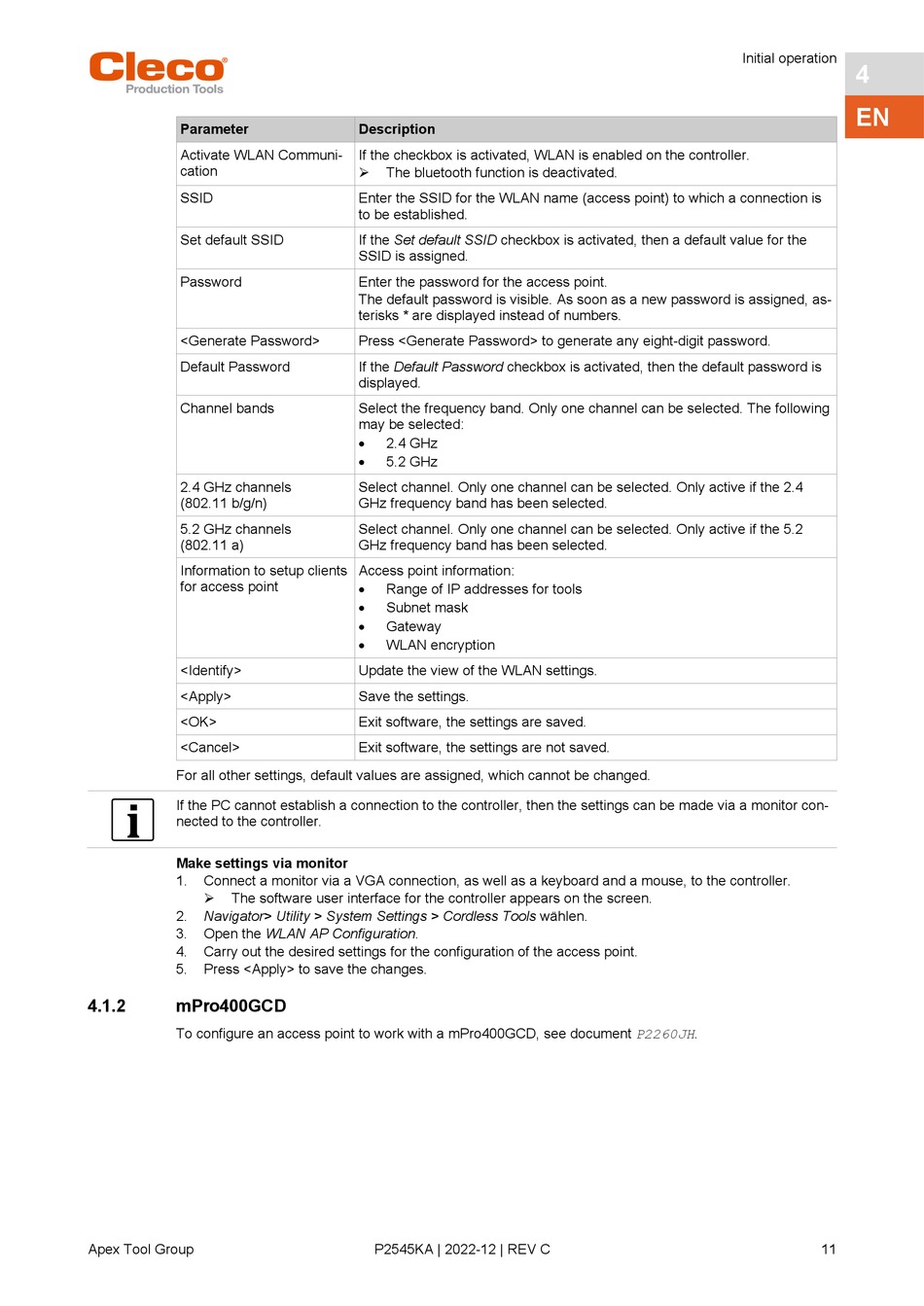

Parameter
Activate WLAN Communi-
cation
SSID
Set default SSID
Password
<Generate Password>
Default Password
Channel bands
2.4 GHz channels
(802.11 b/g/n)
5.2 GHz channels
(802.11 a)
Information to setup clients
for access point
<Identify>
<Apply>
<OK>
<Cancel>
For all other settings, default values are assigned, which cannot be changed.
If the PC cannot establish a connection to the controller, then the settings can be made via a monitor con-
nected to the controller.
Make settings via monitor
1. Connect a monitor via a VGA connection, as well as a keyboard and a mouse, to the controller.
The software user interface for the controller appears on the screen.

2. Navigator> Utility > System Settings > Cordless Tools wählen.
3. Open the WLAN AP Configuration.
4. Carry out the desired settings for the configuration of the access point.
5. Press <Apply> to save the changes.
4.1.2

mPro400GCD

To configure an access point to work with a mPro400GCD, see document P2260JH.
Apex Tool Group
Description
If the checkbox is activated, WLAN is enabled on the controller.
The bluetooth function is deactivated.

Enter the SSID for the WLAN name (access point) to which a connection is
to be established.
If the Set default SSID checkbox is activated, then a default value for the
SSID is assigned.
Enter the password for the access point.
The default password is visible. As soon as a new password is assigned, as-
terisks * are displayed instead of numbers.
Press <Generate Password> to generate any eight-digit password.
If the Default Password checkbox is activated, then the default password is
displayed.
Select the frequency band. Only one channel can be selected. The following
may be selected:
• 2.4 GHz
• 5.2 GHz
Select channel. Only one channel can be selected. Only active if the 2.4
GHz frequency band has been selected.
Select channel. Only one channel can be selected. Only active if the 5.2
GHz frequency band has been selected.
Access point information:
• Range of IP addresses for tools
• Subnet mask
• Gateway
WLAN encryption
•
Update the view of the WLAN settings.
Save the settings.
Exit software, the settings are saved.
Exit software, the settings are not saved.
P2545KA | 2022-12 | REV C
