Shaft And Sleeve Replacement Guidelines - ITT 3196 i-FRAME Installation, Operation And Maintenance Manual

Maintenance
Dynamic-seal repeller replacement
This table shows the criteria for replacing dynamic-seal repeller parts for the 3196, CV 3196, and LF 3196
pump models.
Dynamic seal part
Dynamic-seal repeller vane
Sleeve surface
Labyrinth seal replacement
Replace the labyrinth-seal O-ring if it has cuts and cracks.
Gaskets, O-rings, and seats replacement
• Replace all gaskets and O-rings at each overhaul and disassembly.
• Inspect the seats. They must be smooth and free of physical defects.
In order to repair worn seats, skin cut them in a lathe while you maintain dimensional relationships
with other surfaces.
• Replace parts if the seats are defective.

Shaft and sleeve replacement guidelines

Two types of sleeves
The 3198 is offered with either a metallic sleeve that uses the standard 3196 shaft or a Teflon sleeve. The
Teflon sleeve requires a special shaft and a different inboard labyrinth oil seal.

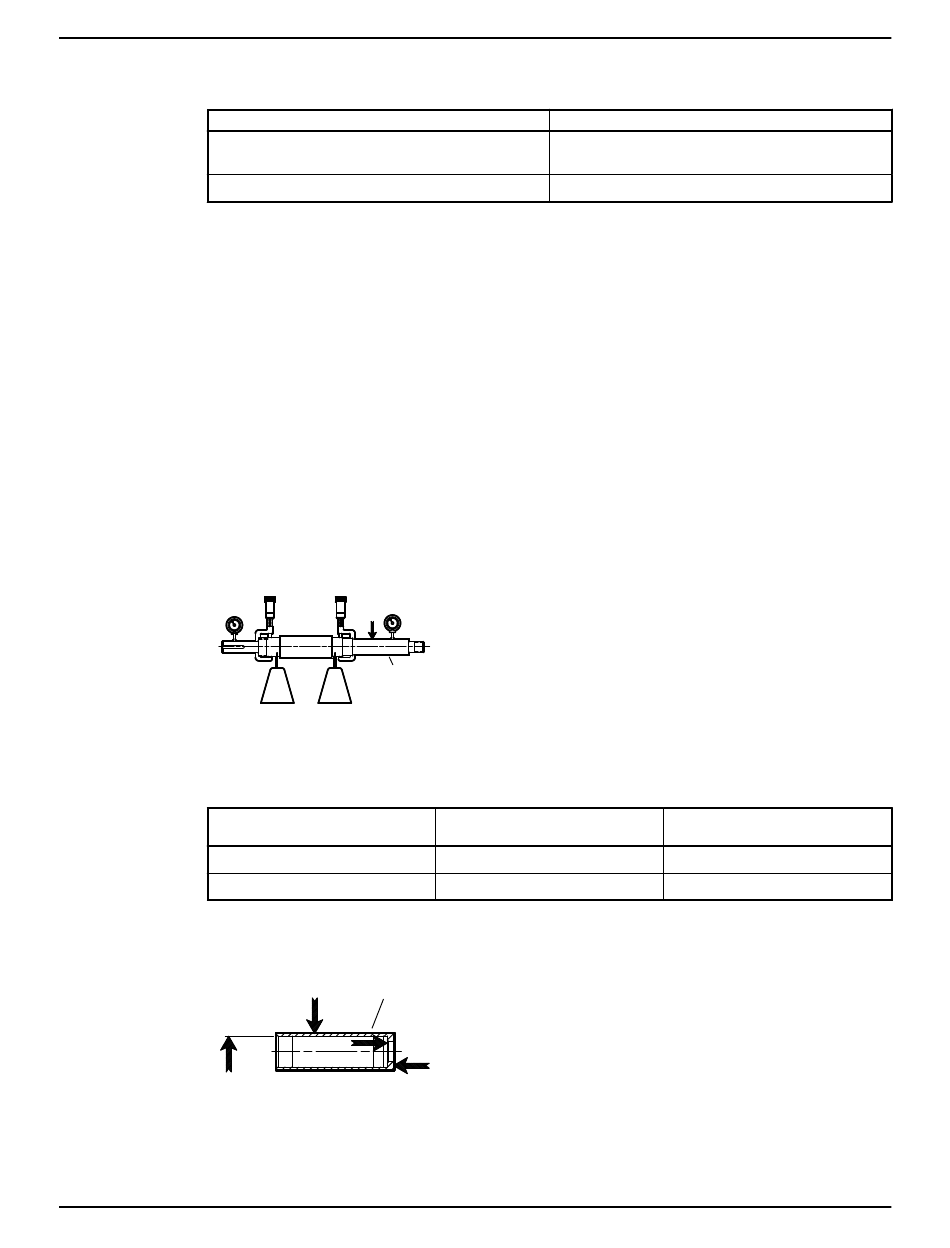

Shaft measurements check
Replace the shaft (122) if any measurements exceed acceptable values. See Bearing fits and tolerances.
Straightness check
Replace the shaft (122) if runout exceeds the values in this table:
Table 13: Shaft runout tolerances for sleeve fit and coupling fit
With sleeve
Without sleeve
Shaft and sleeve check
• Check the shaft and sleeve (126) surface for grooves and pitting.
• Replace the shaft and sleeve if any grooves or pits are found.
88
When to replace
The grooves are deeper than 1/16 in. (1.6 mm) or
are worn evenly more than 1/32 in. (0.8 mm).
The surface has grooves, pitting, or other damage.
122
Sleeve fit in inches
(millimeters)
0.001 (0.025)
0.002 (0.051)
126
Model 3196 i-FRAME Installation, Operation, and Maintenance Manual
Coupling fit in inches
(millimeters)
0.001 (0.025)
0.001 (0.025)
