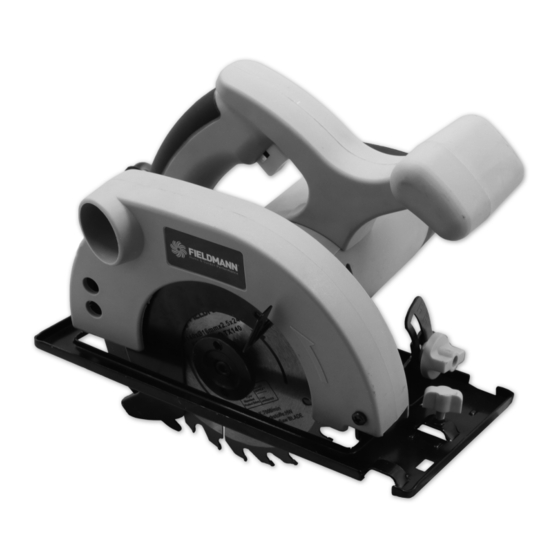

Summary of Contents for Fieldmann FDK 200802- E

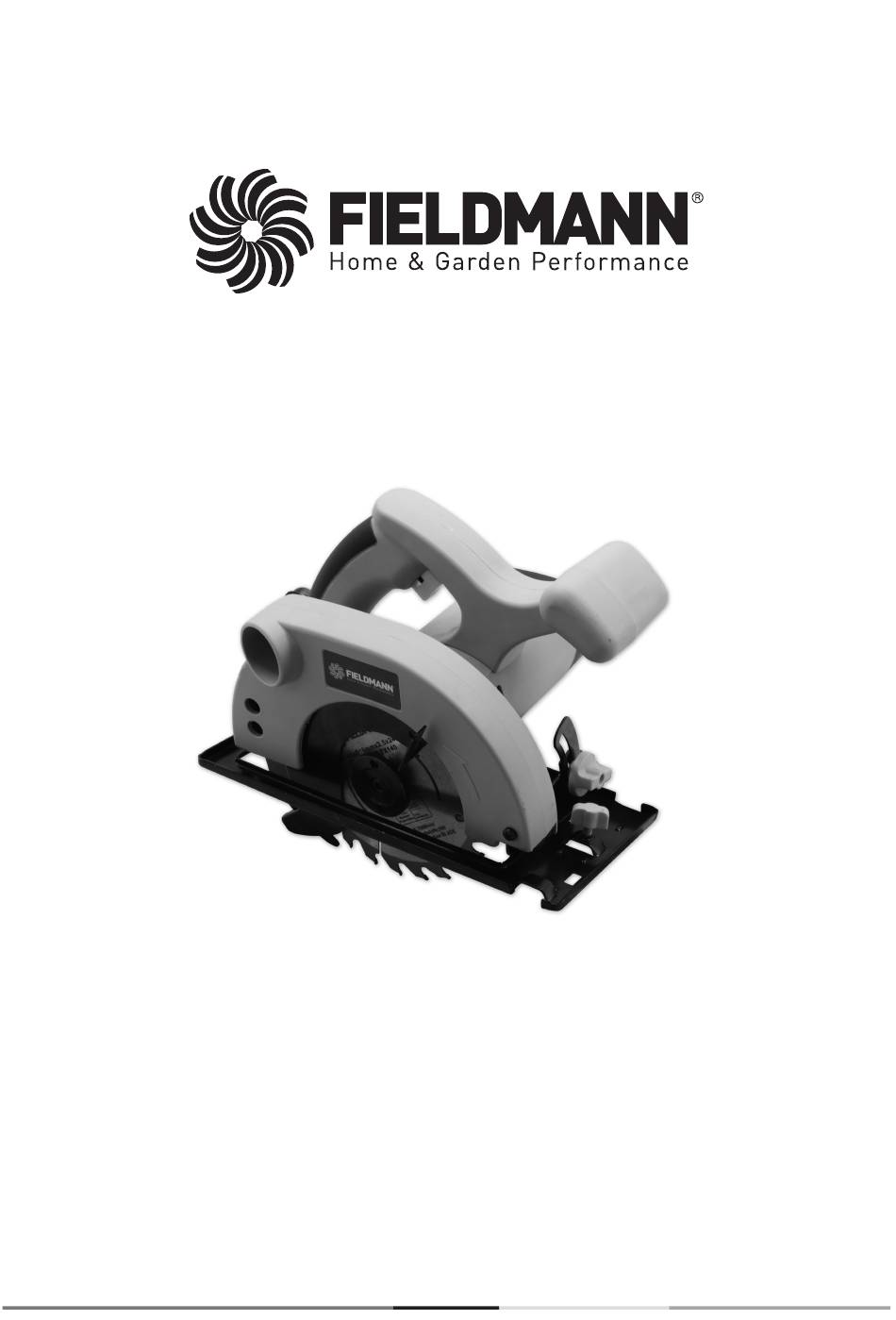

  • Page 1 FDK 200802 - E...
  • Page 2 English ..................................9 Čeština ..................................26 Slovenčina ................................44 Magyarul ................................66 Polski ..................................87 FDK 200802-E...
  • Page 4 FDK 200802-E...
  • Page 6 FDK 200802-E FDK 2001-E...
  • Page 8 FDK 200802-E...

  • Page 9: Table Of Contents

    Table of contents Table of contents Electrical Circular Saw INSTRUCTION MANUAL Thank you for your purchase of the electrical circular saw. For your personal safety, read and understand the Instruction Manual before using. Keep the Instruction Ma- nual in a safe place for future reference. TABLE OF CONTENTS GENERAL SAFETY REGULATIONS ...................

  • Page 10: General Safety Regulations

    General safety instructions GENERAL SAFETY INSTRUCTIONS Carefully read, remember and keep these safety instructions WARNING! In the use of electric machines and power tools, it is necessary to respect and follow the following safety instructions for the reasons of protection against electric shock, personal injury and danger of fire.
  • Page 11 General safety instructions If an extension cord is used, always check whether its technical parameters match the information specified in the type label of the power tool. When operating a power tool outdoors, use an extension cord suitable for outdoor use. If extension drums are used, these must be rolled out to prevent overheating of the cord.
  • Page 12 General safety instructions Power Tool Use and Maintenance Always disconnect the power tool from the mains in case of any problem during the work, before cleaning the power tool or its maintenance, during each transportation and after the completion of the work! Never operate a power tool if it is damaged in any way. Immediately stop working if the power tool generates abnormal noise or smell.

  • Page 13: General Safety Instructions

    General safety instructions Service Do not replace parts of the power tool, do not make any repairs or interfere in any way with the construction of the power tool. Have your power tool repaired by qualified repair persons. Any repair or modification of the product without our company’s authorisation is impermissible (it could cause injury or damage to the user).

  • Page 14: Symbols And Pictograms

    Symbols and pictograms Symbols and pictograms Symbols 3. SYMBOLS AND PICTOGRAMS 2. SYMBOLS The product complies with the applicable This product has been manufactured standards and regulations. in accordance with the approved standards. Read the Instruction Manual Before using the machine read attentively prior to use.

  • Page 15: Machine Description And Package Content

    Machine description and package content Machine description and package content Machine description and package content 4. MACHINE DESCRIPTION AND 4. MACHINE DESCRIPTION AND PACKAGE CONTENT PACKAGE CONTENT Machine Description (see Fig. 1.2) Machine Description (see Fig. 1.2) Switch Switch Handle Handle Guiding handle Guiding handle...

  • Page 16: Safety Instructions

    Safety instructions Safety instructions 5. SAFETY INSTRUCTIONS Before use, please read these safety instructions and keep them in a safe place. ATTENTION! This symbol indicates risk of injury or damage to the equipment. ATTENTION! Upon failure to follow the instructions specified in this manual, there is a risk of injury.
  • Page 17 Safety instructions Safety instructions ATTENTION! Do not use grinding discs - The arrow on the circular-saw blade indicating the running direction must indicate the same direction as the arrow on the circular-saw guard. The teeth of the circular-saw blade must match the running direction of the saw (downwards and forward).
  • Page 18 Safety instructions Safety instructions ATTENTION! During longitudinal cutting, always use the longitudinal guide scale or straight guide rail. ATTENTION! Never use damaged or incorrect washers or clamping bolts. ATTENTION! If the circular-saw blade is pinched or when interrupting a cut for other reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop.
  • Page 19 Safety instructions Safety instructions ATTENTION! Except for plunge cuts, always use the riving knife. ATTENTION! In order for the riving knife to work, it must fit into the cut-out in the processed piece. ATTENTION! Do not operate the saw if the riving knife is bent. ATTENTION! Make sure that the riving knife is so adjusted that the distance between the riving knife and the blade rim is not greater than 5 mm and the blade rim does not reach out behind the lower edge of the riving knife by more than 5 mm.

  • Page 20: Use And Operation

    Use and operation | Adjustment and operation Use and operation | Adjustment and operation 6. USE AND OPERATION The circular saw is supplied with a circular-saw blade intended for making straight cuts in wooden materials. After replacement of the circular-saw blade, you can also cut plastics, thermoplastics, hard plastics, laminate, polyurethane foam boards, mineral wool insulation boards, cement bricks, cellular concrete and products made of non-ferrous metals.
  • Page 21 Adjustment and operation Adjustment and operation ATTENTION! Make sure that the spindle diameter matches the blade hole. Secure the clamping nut using the flange wrench 14 and loosen it using the Allen wrench 13 anticlockwise. Retract the blade guard and remove the blade stud, washer and flange. Remove the old saw blade and insert a new blade.

  • Page 22: Cleaning And Maintenance

    Adjustment and operation | Cleaning and maintenance tips Adjustment and operation | Cleaning and maintenance tips Replacement of carbon brushes ATTENTION! In case of carbon brush seasoning, immediately switch off the saw and contact the nearest service centre of FAST ČR, a.s. or your nearest vendor. Use only correct types of carbon brushes.

  • Page 23: Technical Data

    Technical data 10.TECHNICAL DATA ELECTRICAL CIRCULAR SAW: Power supply 230V/50Hz Power input 800W 4000rpm Speed Protection class Blade Diameter 140 mm Cutting capacity 45mm at 90 degree, 28mm at 45 degree Power supply cable length 1.8m Declared noise level 98dB(A) Vibration =3.2 ms , k=1.5 ms...
  • Page 24 Technical data Troubleshooting Suspected malfunctions are often due to causes the user can fix themselves. Therefore check the product using this section .In most cases the problem can be solved quickly . WARNING! Only perform the steps described within these instruction s! All further inspection ,maintenance and repair work must be performed by an...

  • Page 25: Liquidation

    liquidati Liquidationl LIQUIDATION INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING. Put any used package material to the place determined by the municipality for waste disposal. DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste.
  • Page 26 EU DECLARATION OF CONFORMITY Product / brand: Electrical Circular Saw / FIELDMANN Type / model: FDK 200802-E as factory model M1Y-GW2-140 AC 230V; 50Hz; 800W; speed 4000/m , diameter 140mm, Class II = 90 dB(A), L = 101 dB(A) Manufacturer: FAST ČR, a.s.
