Page 1: Picture Annex
FDK 2002 - E... - Page 3 FDK 2002-E...
- Page 5 FDK 2002-E...
-
Page 7: Table Of Contents
Table of contents Electrical Circular Saw INSTRUCTION MANUAL Thank you for your purchase of the electrical circular saw. For your personal safety, read and understand the Instruction Manual before using. Keep the Instruction Ma- nual in a safe place for future reference. TABLE OF CONTENTS PICTURE ANNEX .......................... -
Page 8: General Safety Regulations
Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs. The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual. FDK 2002-E... -
Page 9: General Safety Instructions
General safety instructions 2. GENERAL SAFETY INSTRUCTIONS Carefully read, remember and keep these safety instructions WARNING! In the use of electric machines and power tools, it is necessary to respect and follow the following safety instructions for the reasons of protection against electric shock, personal injury and danger of fire. - Page 10 Children must be supervised to make sure they are not playing with the equipment. FDK 2002-E...
- Page 11 General safety instructions Power Tool Use and Maintenance Always disconnect the power tool from the mains in case of any problem during the work, before cleaning the power tool or its maintenance, during each transportation and after the completion of the work! Never operate a power tool if it is damaged in any way. Immediately stop working if the power tool generates abnormal noise or smell.
- Page 12 (it could cause injury or damage to the user). Always have your power tool repaired in a certified service centre. Use only original or recommended replacement parts. This will ensure that your safety and the safety of your power tool is maintained. FDK 2002-E...
-
Page 13: Symbols And Pictograms
Symbols and pictograms 3. SYMBOLS AND PICTOGRAMS The product complies with the applicable standards and regulations. Read the Instruction Manual attentively prior to use. Double-insulated. Use eyes protective equipment Use ears protectiove equipment Subjected to recycling ELECTRICAL CIRCULAR SAW OPERATING INSTRUCTIONS... -

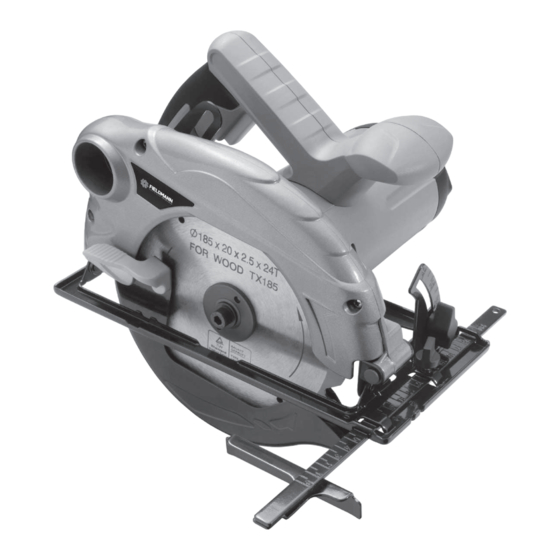

Page 14: Machine Description And Package Content
Remove the machine carefully from the packaging and check the completeness of the following parts: Circular saw Parallel guide 1 circular-saw blade Warranty certificate Operating instructions Allen wrench Wrench 2 replacement engine carbon brushes If some parts are missing or are damaged, please contact the vendor where you purchased the machine. FDK 2002-E... -
Page 15: Safety Instructions
Safety instructions 5. SAFETY INSTRUCTIONS Before use, please read these safety instructions and keep them in a safe place. ATTENTION! This symbol indicates risk of injury or damage to the equipment. ATTENTION! Upon failure to follow the instructions specified in this manual, there is a risk of injury. - Page 16 ATTENTION! Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the circular-saw blade but not in line with the circular-saw blade. FDK 2002-E...
- Page 17 Safety instructions ATTENTION! During longitudinal cutting, always use the longitudinal guide scale or straight guide rail. ATTENTION! Never use damaged or incorrect washers or clamping bolts. ATTENTION! If the circular-saw blade is pinched or when interrupting a cut for other reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop.
- Page 18 ATTENTION! Wear gloves when working with circular-saw blades and roughly machined materials - circular-saw blades should be carried in holders, if possible. ATTENTION! Use means of protection against noise, dust and vibrations !!! ATTENTION! Keep these safety instructions. FDK 2002-E...
-
Page 19: Use And Operation
Use and operation | Adjustment and operation 6. USE AND OPERATION The circular saw is supplied with a circular-saw blade intended for making straight cuts in wooden materials. After replacement of the circular-saw blade, you can also cut plastics, thermoplastics, hard plastics, laminate, polyurethane foam boards, mineral wool insulation boards, cement bricks, cellular concrete and products made of non-ferrous metals. - Page 20 The tool is equipped with double-acting safety switch: the saw can only be started if you hold the handle firmly and press both safety switches. After releasing the handle, the saw is automatically switched off to prevent accidental machine operation. FDK 2002-E...
-
Page 21: Cleaning And Maintenance
Adjustment and operation | Cleaning and maintenance tips Replacement of carbon brushes ATTENTION! In case of carbon brush seasoning, immediately switch off the saw and contact the nearest service centre of FAST ČR, a.s. or your nearest vendor. Use only correct types of carbon brushes. After attaching new carbon brushes, let the saw run on idle for approx. -
Page 22: Declaration Of Conformity
Declaration of conformity 10. DECLARATION OF CONFORMITY Product/Name: ELECTRICAL CIRCULAR SAW / FIELDMANN Type/Model: FDK 2002 - E ................230V/50Hz/1300W/4700rpm/185mm The product complies with the following directives: The Directive of the European Parliament and the Council No. 2006/95/EC dated 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits. -
Page 23: Technical Data
Technical data 11. TECHNICAL DATA ELECTRICAL CIRCULAR SAW: Power supply 230V/50Hz Power input 1300W 4700rpm Speed Protection class Blade Diameter: 185mm Cutting capacity 65mm at 90 degree, 45mm at 45 degree Power supply cable length 1.8m Declared noise level 105dB(A) Instructions Manual - language version only. -
Page 24: Liquidation
This product fulfils all basic requirements of the EU directives that apply to it. Text, design and technical specifications can change without prior notice and we reserve the right for their change. FDK 2002-E...
