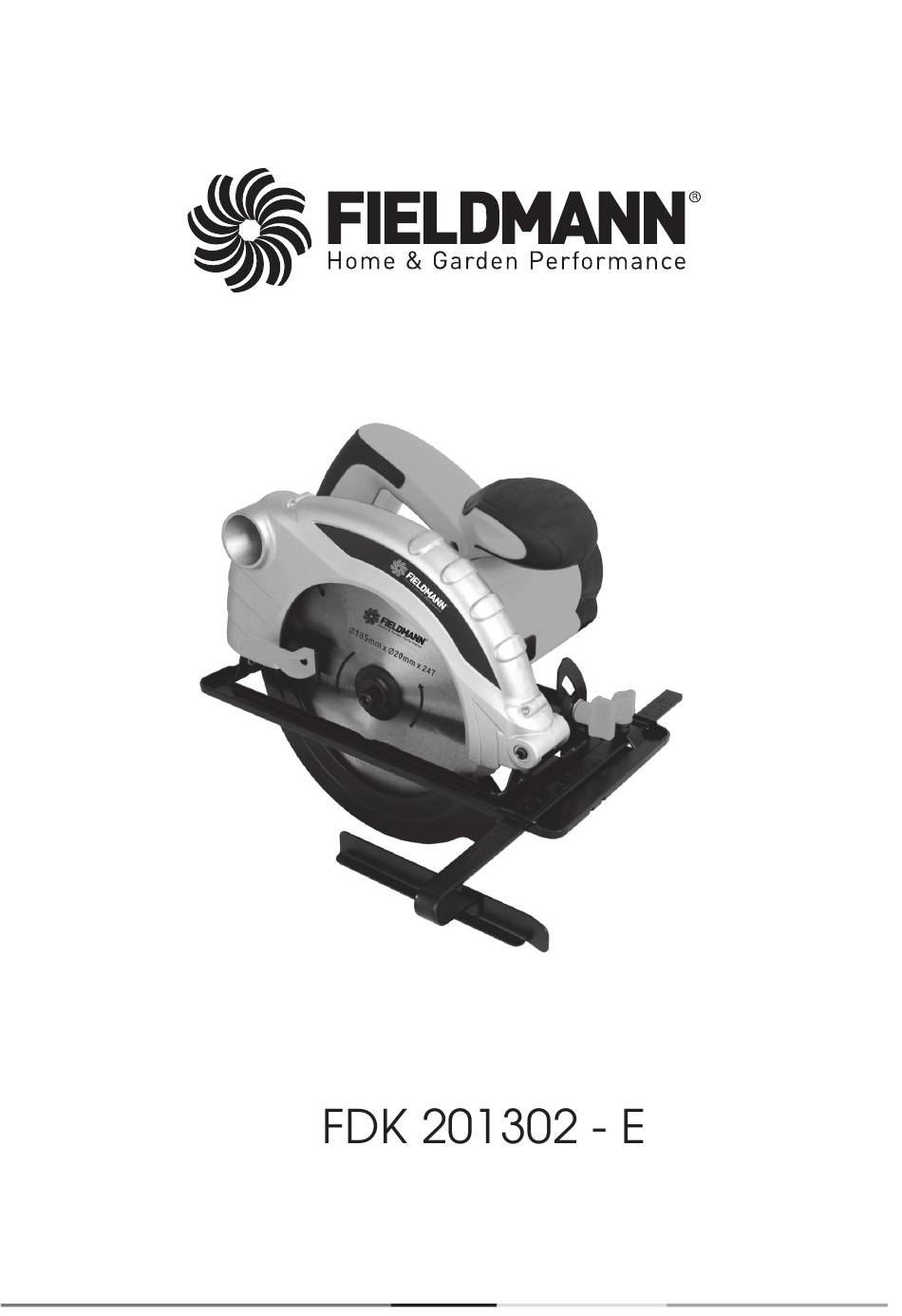

Fieldmann FDK 201302-E Manual

Hide thumbs Also See for FDK 201302-E:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the FDK 201302-E and is the answer not in the manual?

Questions and answers

Related Manuals for Fieldmann FDK 201302-E

Summary of Contents for Fieldmann FDK 201302-E

  • Page 7: Table Of Contents

    Electrical Circular Saw INSTRUCTION MANUAL Thank you for your purchase of the electrical circular saw. For your personal safety, read and understand the Instruction Manual before using. Keep the Instruction Ma- nual in a safe place for future reference. TABLE OF CONTENTS GENERAL SAFETY INSTRUCTIONS ...................

  • Page 8: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS Carefully read, remember and keep these safety instructions WARNING! In the use of electric machines and power tools, it is necessary to respect and follow the following safety instructions for the reasons of protection against electric shock, personal injury and danger of fire. The term “power tool” in the instructions below refers both to mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 9 If an extension cord is used, always check whether its technical parameters match the information specified in the type label of the power tool. When operating a power tool outdoors, use an extension cord suitable for outdoor use. If extension drums are used, these must be rolled out to prevent overheating of the cord.
  • Page 10 Power Tool Use and Maintenance Always disconnect the power tool from the mains in case of any problem during the work, before cleaning the power tool or its maintenance, during each transportation and after the completion of the work! Never operate a power tool if it is damaged in any way. Immediately stop working if the power tool generates abnormal noise or smell.

  • Page 11: Symbols And Pictograms

    . SYMBOLS AND PICTOGRAMS applicable ELECTRICAL CIRCULAR SAW OPERATING INSTRUCTIONS...
  • Page 12 Machine Description (see Fig. 1.2) Switch Handle Guiding handle Bevel adjustment knob Parallel guide adjustment knob Parallel guide Circular-saw blade guide Circular-saw base Blade stud 10 - Cutting depth adjustment knob 11 - Safety switch 12 - Carbon brush cover 13 - Allen wrench 16 -...

  • Page 13: Safety Instructions

    . SAFETY INSTRUCTIONS Before use, please read these safety instructions and keep them in a safe place. ATTENTION! This symbol indicates risk of injury or damage to the equipment. ATTENTION! Upon failure to follow the instructions specified in this manual, there is a risk of injury.
  • Page 14 ATTENTION! Do not use grinding discs - The arrow on the circular-saw blade indicating the running direction must indicate the same direction as the arrow on the circular-saw guard. The teeth of the circular-saw blade must match the running direction of the saw (downwards and forward). - Keep the circular-saw blade and the clamping surface of the flange clean.
  • Page 15 ATTENTION! During longitudinal cutting, always use the longitudinal guide scale or straight guide rail. ATTENTION! Never use damaged or incorrect washers or clamping bolts. ATTENTION! If the circular-saw blade is pinched or when interrupting a cut for other reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop.
  • Page 16 ATTENTION! Except for plunge cuts, always use the riving knife. ATTENTION! In order for the riving knife to work, it must fit into the cut-out in the processed piece. ATTENTION! Do not operate the saw if the riving knife is bent. ATTENTION! Make sure that the riving knife is so adjusted that the distance between the riving knife and the blade rim is not greater than 5 mm and the blade rim does not reach out behind the lower edge of the riving knife by more than 5 mm.

  • Page 17: Use And Operation

    . USE AND OPERATION The circular saw is supplied with a circular-saw blade intended for making straight cuts in wooden materials. After replacement of the circular-saw blade, you can also cut plastics, thermoplastics, hard plastics, laminate, polyurethane foam boards, mineral wool insulation boards, cement bricks, cellular concrete and products made of non-ferrous metals.
  • Page 18 ATTENTION! Make sure that the spindle diameter matches the blade hole. Secure the clamping nut using the flange wrench 14 and loosen it using the Allen wrench 13 anticlockwise. Retract the blade guard and remove the blade stud, washer and flange. Remove the old saw blade and insert a new blade.

  • Page 19: Cleaning And Maintenance

    Replacement of carbon brushes ATTENTION! In case of carbon brush seasoning, immediately switch off the saw and contact the nearest service centre of FAST ČR, a.s. or your nearest vendor. Use only correct types of carbon brushes. After attaching new carbon brushes, let the saw run on idle for approx. 5 minutes. .
  • Page 20 ELECTRICAL CIRCULAR SAW OPERATING INSTRUCTIONS...
  • Page 21 ELECTRICAL CIRCULAR SAW OPERATING INSTRUCTIONS...

  • Page 22: Liquidation

    LIQUIDATION INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING. Put any used package material to the place determined by the municipality for waste disposal. DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste.
