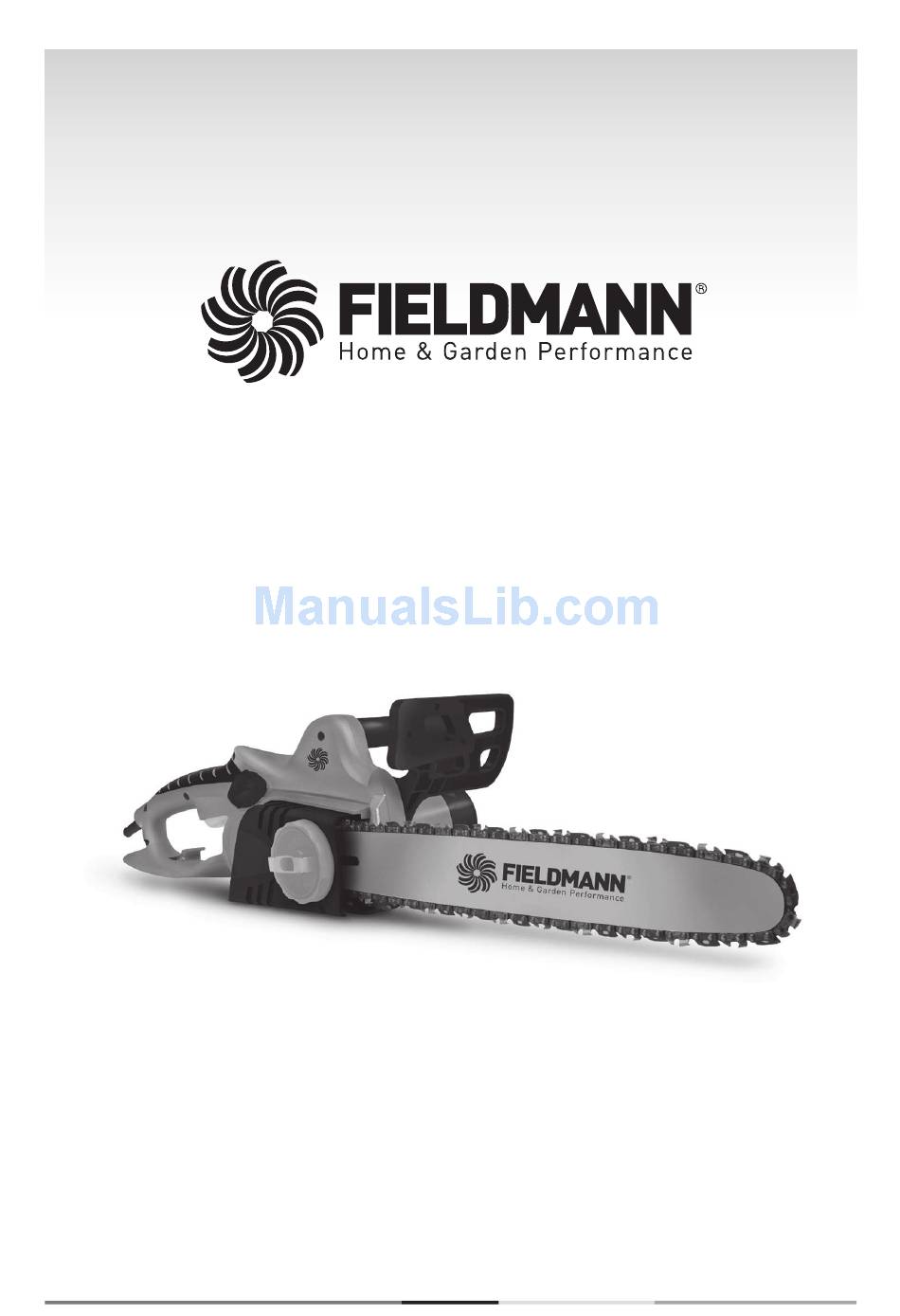

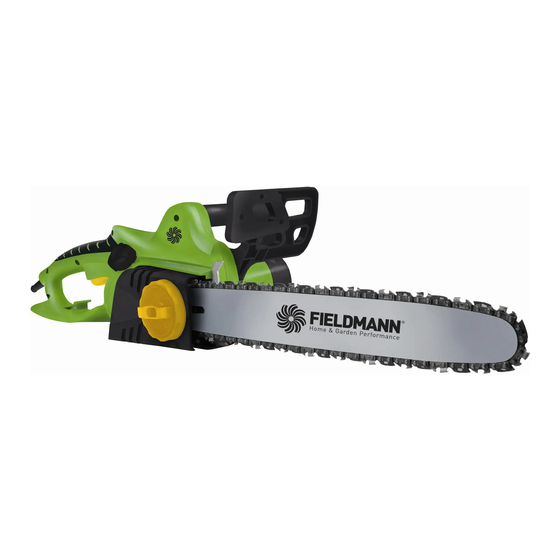

  • Page 1 FZP 2001-E...

  • Page 2: Pictures

    English ..............................69 - 27 Čeština .............................. 29 - 47 Slovenčina ............................49 - 67 Magyarul ............................69 - 88 Polski ..............................89 - 109 Русский ............................111 - 132 FZP 2001-E...
  • Page 4 FZP 2001-E...
  • Page 6 FZP 2001-E...
  • Page 8 FZP 2001-E...

  • Page 9: Table Of Contents

    Table of contents Electrical Chain Saw OPERATING INSTRUCTIONS Thank you for purchasing this electrical saw. Before you start using it, please read the operating instructions carefully and retain it for further use. TABLE OF CONTENTS PICTURES .............................. 2 GENERAL SAFETY INSTRUCTIONS ..................10 Important safety warnings Packaging Instructions for use...

  • Page 10: General Safety Instructions

    Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs. The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual. FZP 2001-E...

  • Page 11: Explanation Of Labels With Instructions On The Machine

    Explanation of labels with instructions on the machine 2. EXPLANATION OF LABELS WITH INSTRUCTIONS ON THE MACHINE Before machine use read carefully the operating instructions. This product is manufactured in compliance with approved standards. ATTENTION! Chain saws are dangerous! Careless or improper use can cause serious or fatal injury.

  • Page 12: Machine Description And Content Of Delivery

    Oil refill hole for chain lubrication 14 - Front handle Protection of right hand 15 - Protective guard of guide Oil control tank for chain lubrication 16 - Serial number Chain drive cover 17 - Switch Sprocket wheel FZP 2001-E...

  • Page 13: General Instructions Before Chain Saw Use

    Machine description and content of delivery | General instructions before chain saw use Content of delivery Take the machine out of package and check whether the following parts are complete: ATTENTION! Sharp guides! Chain saw Guide Chain Guide guard Oil tank Operating instructions If any parts are missing or damaged, please refer to the dealer you purchased the machine from.

  • Page 14: Instructions For Safe Use

    Before plugging the saw to mains make sure that all tools and covers are removed from electrical saw. Make sure that the extension cord is in a good shape and approved for outdoor use. Make sure that cord dimension is sufficient considering chain saw output. See section „GENERAL FZP 2001-E...
  • Page 15 Instructions for safe use INSTRUCTIONS BEFORE CHAIN SAW USE“. Carry the saw using front handle, turned off and in safe distance from your body. Do not touch the switch. Whenever you carry or store the saw, always put the guide cover on. Plug chain saw to the socket equipped with a current protector.

  • Page 16: Protection Against Recoil

    At cutting maintain the maximum number of revolutions. Pay special attention to cutting with the end of guide / chain (at the bottom side of log). The power of chain revolutions pushes the saw backwards and unless the operator has enough FZP 2001-E...

  • Page 17: Chain Brake With Protection Against Recoil

    Protection against recoil | Chain brake with protection against recoil control, the recoil dangerous zone can get closer to the notch and thus cause recoil. Cutting by means of the chain bottom part (at the log upper side) pushes the saw forward. This pushes the power against the tree and provides constant support as well as gives more control over the saw to the operator and subsequently the control of recoil dangerous zone.
  • Page 18 Turn your left wrist and touch protective guard which activates chain brake without having to release the front handle. The chain should stop immediately. If chain brake does not work properly, have it repaired in an authorized service facility. FZP 2001-E...

  • Page 19: Right Protective Guard

    Right protective guard | Guide and chain assembly 8. RIGHT PROTECTIVE GUARD Right protective guard protects your right hand in case the chain gets blocked or gets out of the groove or against hitting by the branches that would imperil holding right handle. Make sure that right protective guard is not damaged.

  • Page 20: Cutting Parts

    If you need to consult the selection of suitable oil, please refer to our service department. ATTENTION! Never apply used motor oil! Used motor oil contains the impurities that can do harm to oil pump, guide and chain. FZP 2001-E...

  • Page 21: Putting Into Service

    Chain and guide lubrication | Putting into service Oil refill hole for chain lubrication The model of your chain saw is equipped with the automatic lubrication system. Control of automatic lubrication system To check the automatic lubrication system turn the saw on and hold guide approximately 20 cm from a fixed light object.

  • Page 22: Instructions For Proper Use

    To sharpen teeth properly you need to use a round file and file holder. To get the right file parameters and its holder see section „Technical Data“. File the saw just when it is properly tightened. Loose chain makes filing harder. FZP 2001-E...
  • Page 23 Instructions for proper use Always file from the inner tooth side outwards. At backward pull lift the file. First sharpen teeth tips on one side.Then turn the saw and file teeth tips on the other side. Sharpen teeth tips so that they have the same length. Once horizontal length drops below 3 mm (1/8“), the chain is worn out and cannot be used any more.
  • Page 24 Felling is done through three cuts. So called „upper cut“, then so called „lower“ or „horizontal“ cut make so called „notch“ that is determining for the direction of tree fall. The final cut is so called „felling cut“ after which the tree fells. FZP 2001-E...

  • Page 25: Maintenance And Storage

    Instructions for proper use | Maintenance and storage Notch In order to make a notch, start with the cut of upper notch. Using bottom part of guide make a cut within the 45° inclination in the right angle to the direction of planned fall. Then make a lower notch so that it meets exactly the lower side of the upper notch.

  • Page 26: Technical Data

    Technical data 15. TECHNICAL DATA Model ................................FZP 2001-E Motor 2200 Nominal voltage ..........................230-240 VAC Nominal output ............................... 2200 W Mains frequency ..............................50 Hz Clutch ..................................Yes Electronic start control ............................Yes Weight Excluding guide and chain ..........................4,4 kg including 16“...

  • Page 27: Disposal

    Disposal 16. DISPOSAL INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING. Put any used package material to the place determined by the municipality for waste disposal. DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste.
