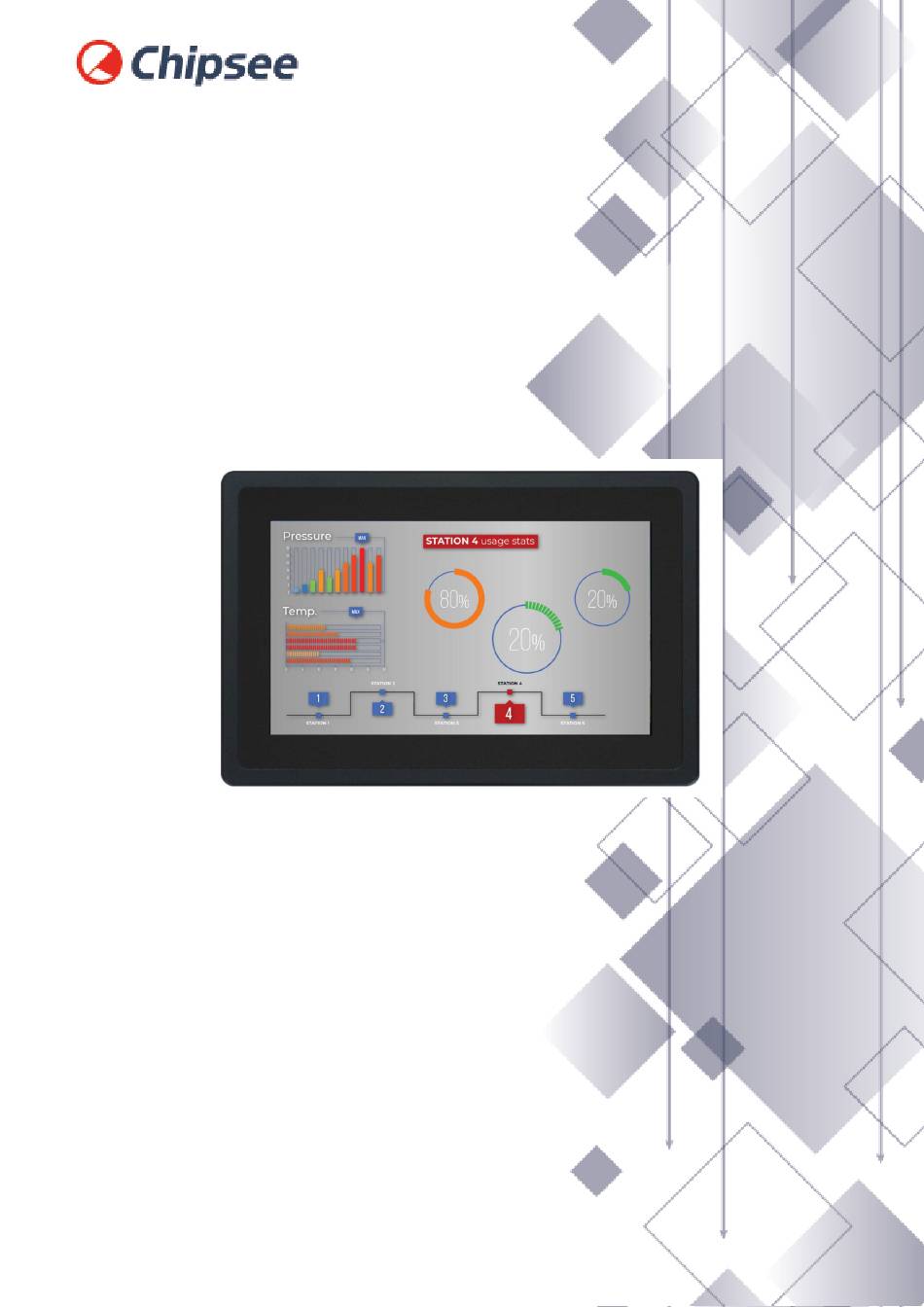

- Page 1 Industrial PC EPC/PPC-A8-101-R PN: CS10600T101 Content can change at anytime, check documentation website for latest information. www.chipsee.com...
-
Page 2: Table Of Contents
Contents 1. EPC/PPC-A8-101-R 1.1. Product Overview 1.2. Ordering Options 1.2.1. Operating System 1.2.2. Optional Features 1.3. Hardware Features 1.4. Power Input 1.5. Touch Screen 1.6. Connectivity 1.6.1. RS232/RS485/CAN 1.6.2. USB Connectors 1.6.3. LAN Connectors 1.6.4. WiFi & BT Module 1.6.5. 3G/4G/LTE Module 1.6.6. -
Page 3: Epc/Ppc-A8-101-R

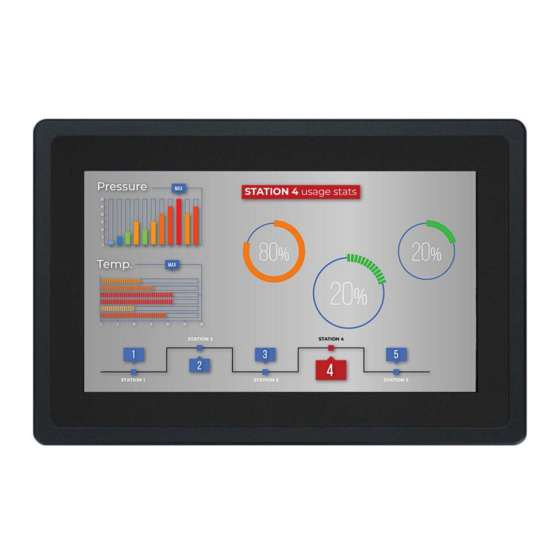

EPC/PPC-A8-101-R EPC/PPC-A8-101-R Note EOL PRODUCT: This product has been discontinued, due to market demand and shifts in technology. Please Contact if you would like to purchase it. Front View Rear View Chipsee Page 3 of 19... -
Page 4: Product Overview
Rear View (Embedded Variant) Product Overview ® The Cortex -A8 series EPC/PPC-A8-101-R (PN: CS10600T101) is a high-quality industrial PC. It features a 10.1” ten-point capacitive and resistive touch screen with a resolution of 1024 x 600 pixels and brightness of 500 cd/m . -
Page 5: Ordering Options
The AM33554 MPU does not generate extensive heat, so even the thin aluminum housing on PPC version delivers sufficient thermal dissipation. Ordering Options Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the... -
Page 6: Operating System
Software Documentation section provides a detailed instruction how to install different OS on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com... - Page 7 EPC/PPC-A8-101-R Hardware Features EPC/PPC-A8-101-R Storage TF Card, Supports up to 32GB SDHC Display 10.1” LCD, 1024 x 600 resolution px, brightness 500 cd/m Touch 10-point capacitive and resistive touch 2 x USB 2.0 Host, 1 x USB 2.0 OTG 1 x Channel 100M LAN Audio 3.5mm output/input connector, 2W Internal Speaker...
-
Page 8: Power Input
Power Input Power Input The EPC/PPC-A8-101-R Industrial PC can be powered by a wide range of input voltages: From 6V to 42V DC. The power input connector is a 3-pin, 3.81mm terminal. The polarity and the pinout is clearly marked on the housing of the PPC version, as well as on the PCB itself of the EPC version, as shown in the figure below. -
Page 9: Connectivity
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the EPC/PPC-A8-101-R Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely. - Page 10 EPC/PPC-A8-101-R RS232/RS485/CAN Figure 651: Relation between serial pins on embedded vs. enclosed version of the EPC/PPC-A8-101-R Industrial PC Chipsee Page 10 of 19...
-
Page 11: Usb Connectors
EPC/PPC-A8-101-R USB Connectors The table below offers more detailed description of every pin and its definition: RS232 / RS485 / CAN Pin Definition: Pin Number Definition Description Pin 12 System +5V Power Output, No more than 1A Current output Pin 11... -
Page 12: Lan Connectors
Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m). WiFi & BT Module The EPC/PPC-A8-101-R Industrial PC is equipped with the popular Realtek RTL8723 WiFi/BT module that supports BT/BLE 4.0 (with backward compatibility), as well as 802.11bgn 2.4 GHz Wireless LAN (WLAN). -
Page 13: 3G/4G/Lte Module
The product does not come shipped with the WiFi/BT module by default. If the operator mounts the WiFi/BT module on the EPC/PPC-A8-101-R industrial PC, the module uses the USB1 channel to communicate with CPU, so it will occupy the USB1 channel. - Page 14 EPC/PPC-A8-101-R GPIO Port Figure 658: GPIO Connector Isolated GPIO reduced schematic GPIO Connector Pin Definition: Pin Number Definition Description Pin 1 Isolated Power +5V Output Pin 2 Isolated Ground Chipsee Page 14 of 19...
-
Page 15: Tf Card Slot
5V voltage onboard to the Isolated Power Input Pin. TF Card Slot The EPC/PPC-A8-101-R Industrial PC features 1 x TF Card (micro SD) slot. It can address up to 32GB of memory. Figure 659: TF (micro SD) Card Slot ... -
Page 16: Boot Dip Switch
Figure 661: 2W Micro Speaker and Buzzer Boot DIP Switch The EPC/PPC-A8-101-R Industrial PC supports boot from SD card. If you want to reflash the Operating System (OS), you can use the TF card for that purpose, combined with the DIP switch settings as illustrated in the figure below. -
Page 17: Mounting Procedure
Table 172 Boot Configuration Selection Mounting Procedure The EPC/PPC-A8-101-R Industrial PC can be mounted with 4 x M4 screws, enabling simplified installation onto any standard mounting fixture. Other mounting options might also be supported according to the table in the Hardware Features section. - Page 18 EPC/PPC-A8-101-R PPC-A8-101-R Figure 663: Fixing PPC-A8-101-R industrial PC into panel Note With the PPC-A8-101-R industrial PC, the operator can fix the PC into the panel by pushing it from the front inside the panel as described in the figure above. The recommended maximum thickness of the panel material is 8mm.
-
Page 19: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
