- Page 1 Industrial PC PPC-J6412-104-R PN: PPC-J6412-104-R Content can change at anytime, check our website for latest information of this product. www.chipsee.com...
-
Page 2: Table Of Contents
5. Power Input 6. Touch screen 7. Connectivity 7.1. RS232/485 Connectors 7.2. USB HOST Connectors 7.3. LAN Connectors 7.4. HDMI Connector 7.5. Audio 8. CMOS Button 9. Mounting Procedure 10. Mechanical Specifications 11. Disclaimer 12. Technical Support Chipsee Page 2 of 23... -
Page 3: Ppc-J6412-104-R
PPC-J6412-104-R PPC-J6412-104-R Front View Chipsee Page 3 of 23... -
Page 4: Rear View
PPC-J6412-104-R Rear View Chipsee Page 4 of 23... -
Page 5: Side View
PPC-J6412-104-R Side View 1 Chipsee Page 5 of 23... - Page 6 PPC-J6412-104-R Side View 2 Chipsee Page 6 of 23...
-
Page 7: Product Overview

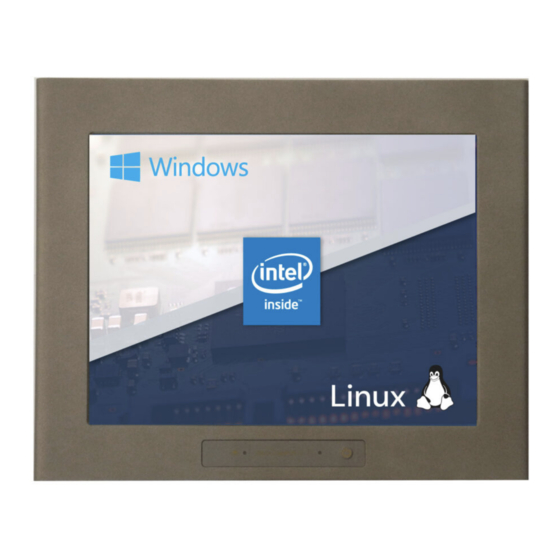

PPC-J6412-104-R Product Overview Product Overview The PPC-J6412 series PPC-J6412-104-R is a rugged, high-quality NEMA 4X/IP65-compliant industrial panel PC. It features a 10.4” resistive touch screen with a resolution of 1024 x 768 pixels. Key Applications • Human Machine Interface HMI •... -
Page 8: Product Changes
• Download Archived Manual: PPC-J6412-104-R-ver1.0.pdf Ordering Options Most of the Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the Hardware Features section provides information about the default options bundled with the product. -
Page 9: Operating System
Note You can order PPC-J6412-104-R from the official Chipsee Store or from your nearest distributor. Operating System By default, PPC-J6412-104-R comes with Linux(Ubuntu 20.04) pre-installed. A different OS can be selected during the ordering process. In addition to Linux, PPC-J6412-104-R also supports Windows 7, Windows 10. -
Page 10: Optional Features
The Wi-Fi/BT module is optional and can be selected during the ordering process. A 3G/4G/LTE/5G module is not available at the Chipsee store for this product. However, it can be obtained from specialized third-party suppliers. The 5G module only supports USB2.0 speed. -
Page 11: Hardware Features
Default 6 x RS232 (2 of 6 can be configured as RS485) GPIO 3G/4G/LTE/5G Optional, module available from other manufacturers/stores WiFi/BT Optional, module available from the Chipsee store Expandability 2 x Mini-PCIe (One for optional WiFi/BT/3G/4G/5G, one for mSATA) HDMI 1 x HDMI out... - Page 12 PPC-J6412-104-R Hardware Features Table 295 Key Features PCB of the product Chipsee Page 12 of 23...
-
Page 13: Power Input
Power Input Note If the product is used to control some key processes, it is highly recommended to use an Uninterruptible Power Supply (UPS) to prevent critical data loss. Chipsee Page 13 of 23... -
Page 14: Touch Screen
Size/Type: 10.4” high-temperature resistant, five-wire analog resistive touch screen Surface Hardness: 3H Service Life (MTBF): 35 million click events Light Transmittance: > 81% Chipsee Page 14 of 23... -
Page 15: Connectivity
RS232 interfaces by default. The bottom row of terminals on the terminal block are COM6/5, these two COM can be configured to either RS232 or RS485. If they are configured to RS485, the 120 Ohm match resistors are not mounted. Chipsee Page 15 of 23... - Page 16 Pin 8 PANSW#: Connect PANSW and GND can boot the PC. • The default configuration of the PPC-J6412-104-R industrial PC is 6 x RS232 interfaces. If you need different configuration, please contact Chipsee Technical Support at support@chipsee.com Chipsee Page 16 of 23...
-
Page 17: Usb Host Connectors
Although fully compatible with USB 2.0 devices, the USB 3.0 interface provides 10 times more data transfer bandwidth than USB 2.0, making it best suited for fast peripherals that can utilize its full potential. 4 x USB3.0 HOST Connectors Chipsee Page 17 of 23... -
Page 18: Lan Connectors
Wake on LAN (WoL) feature. Power over Ethernet (PoE) is not supported. 2 x RJ45 GbE LAN Connectors Note Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m). Chipsee Page 18 of 23... -
Page 19: Hdmi Connector
HDMI Connector HDMI Connector The PPC-J6412-104-R Industrial Panel PC is equipped with 1 x HDMI connector. The HDMI connector allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software. HDMI Connector Chipsee Page 19 of 23... -
Page 20: Audio
PPC-J6412-104-R Audio Audio The product has an audio jack to support microphone and line out, amplifier. Audio Jack Chipsee Page 20 of 23... -
Page 21: Cmos Button
There is a CMOS button you can use to reset the BIOS settings. While the PC is powered off, detach the power cable, you can press and hold the button for a few seconds to reset the BIOS settings. CMOS Button Chipsee Page 21 of 23... -
Page 22: Mounting Procedure
The outer mechanical dimensions of The PPC-J6412-104-R Industrial Panel PC are 272 x 221 x 53mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements. Technical Drawing and Cutout Dimensions Chipsee Page 22 of 23... -
Page 23: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
