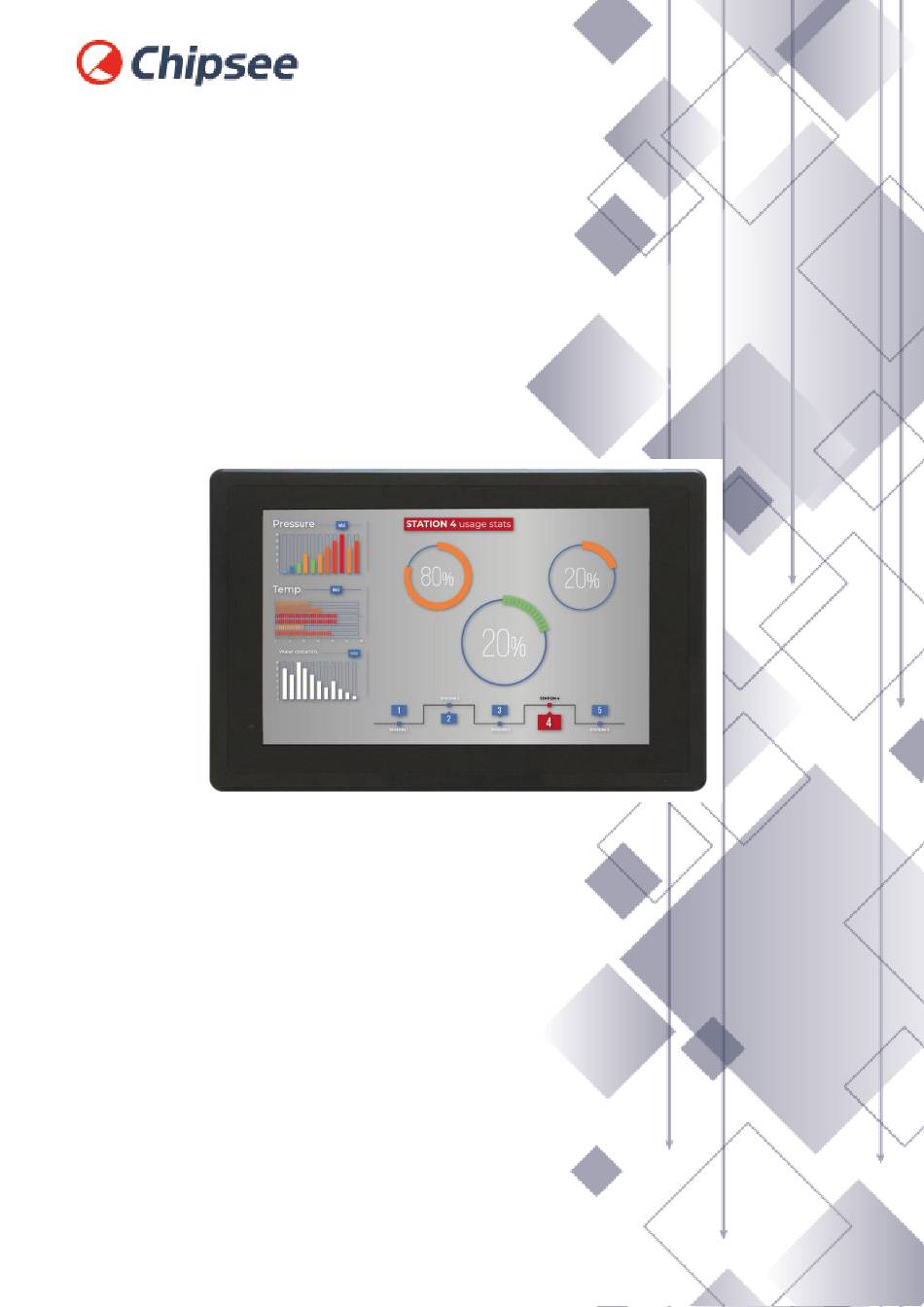

- Page 1 Industrial PC EPC/PPC-A72-101-C PN: CS12800R101 Revision 1.1 www.chipsee.com...
-
Page 2: Table Of Contents
1.6.6. GPIO Port 1.7. TF Card Slot 1.8. Audio Connectors 1.9. HDMI Connector 1.10. Power Button 1.11. Mounting Procedure 1.11.1. EPC-A72-101-C 1.11.2. PPC-A72-101-C 1.12. Mechanical Specifications 1.12.1. EPC-A72-101-C 1.12.2. PPC-A72-101-C 1.13. Disclaimer 1.14. Technical Support Chipsee Page 2 of 20... -
Page 3: Epc/Ppc-A72-101-C
EPC/PPC-A72-101-C EPC/PPC-A72-101-C Front View Rear View Chipsee Page 3 of 20... -
Page 4: Product Overview
PC. It features a 10.1” ten-point capacitive touch screen with a resolution of 1280 x 800 pixels and brightness of 250 cd/m . Key Applications • Human Machine Interface HMI • Mobile Applications • Video Processing Chipsee Page 4 of 20... -
Page 5: Ordering Options
It also provides a complete set of peripheral interfaces. Ordering Options Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The... -
Page 6: Optional Features
Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com... -
Page 7: Power Input
1(1,2)This product has 7 x UART channels in total. The default configuration is 5 x RS232 and 2 x RS485. UART can be swapped between RS232 and RS485 modes easily, so if you need different RS232/RS485 configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com... -
Page 8: Touch Screen
Ground Power System Ground Table 110 Power Connector Note The system ground “G” is connected to power negative “-” on board. Touch Screen The EPC/PPC-A72-101-C Industrial Panel PC uses a 10-point capacitive touch screen. Chipsee Page 8 of 20... -
Page 9: Connectivity
RS232+RS485 Connector The serial communication interfaces (RS485 and RS232) are routed to a 16-pin 3.81mm terminal, as illustrated in the figure below. Serial communication on both RS485 and RS232 interfaces can reach up to 115200 kbps. Chipsee Page 9 of 20... - Page 10 Pin 9 CPU_RS232_4_RXD CPU UART4, CPU RS232 RXD signal Pin 10 CPU_RS232_4_TXD CPU UART4, CPU RS232 TXD signal Pin 11 CPU_RS232_0_RXD CPU UART0, CPU RS232 RXD signal Pin 12 CPU_RS232_0_TXD CPU UART0, CPU RS232 TXD signal Chipsee Page 10 of 20...
-
Page 11: Usb Connectors
There are 4 x USB HOST connectors onboard which includes 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, and 1 x USB Type-C, as shown in the figures below. Figure 501: USB 2.0 HOST Connectors (embedded/enclosed PC version) Figure 502: USB 3.0 HOST Connectors (embedded/enclosed PC version) Chipsee Page 11 of 20... -
Page 12: Lan Connectors
The integrated Ethernet interface supports up to 1 Gbps data throughput. Figure 504: RJ45 LAN Connector Note Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m). Chipsee Page 12 of 20... -
Page 13: Wifi & Bt Module
The EPC/PPC-A72-101-C Industrial Panel PC is equipped with a mini-PCIe connector that can connect to a 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/ LTE Antenna Connector to ensure 4G/LTE works on the EPC/PPC-A72-101-C. Chipsee Page 13 of 20... -
Page 14: Gpio Port
The EPC/PPC-A72-101-C Industrial Panel PC has a 10 Pin 3.81mm GPIO Connector, as shown on the figure below, that is labeled as P18 on the PCB. The table below gives details about the definition of every Pin. Chipsee Page 14 of 20... - Page 15 • The GPIO has been Opt-Isolated and it uses the 5V Logic by default. You can use an external isolated power input but the power input range should be from 5V to 24V DC. Chipsee Page 15 of 20...
-
Page 16: Tf Card Slot
(line-out, typically around -10 dBV) as shown on the figure below. Figure 511: Audio I/O (embedded/enclosed PC version) In addition, EPC/PPC-A72-101-C features a miniature 2W embedded speaker for audio reproduction, as well as a small buzzer for alarm/notification sounds. Chipsee Page 16 of 20... -
Page 17: Hdmi Connector
The EPC/PPC-A72-101-C Industrial Panel PC can be mounted with 8 x M4 screws, enabling simplified installation onto any standard mounting fixture. Other mounting options might also be supported according to the table in the Hardware Features section. Chipsee Page 17 of 20... -
Page 18: Epc-A72-101-C
The outer mechanical dimensions of EPC-A72-101-C are 245 x 155 x 11mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements. Chipsee Page 18 of 20... -
Page 19: Ppc-A72-101-C
For PPC-A72-101-C, the outer mechanical dimensions are 280 x 185.5 x 27.5mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements. Figure 518: PPC-A72-101-C Technical Drawing Chipsee Page 19 of 20... -
Page 20: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
