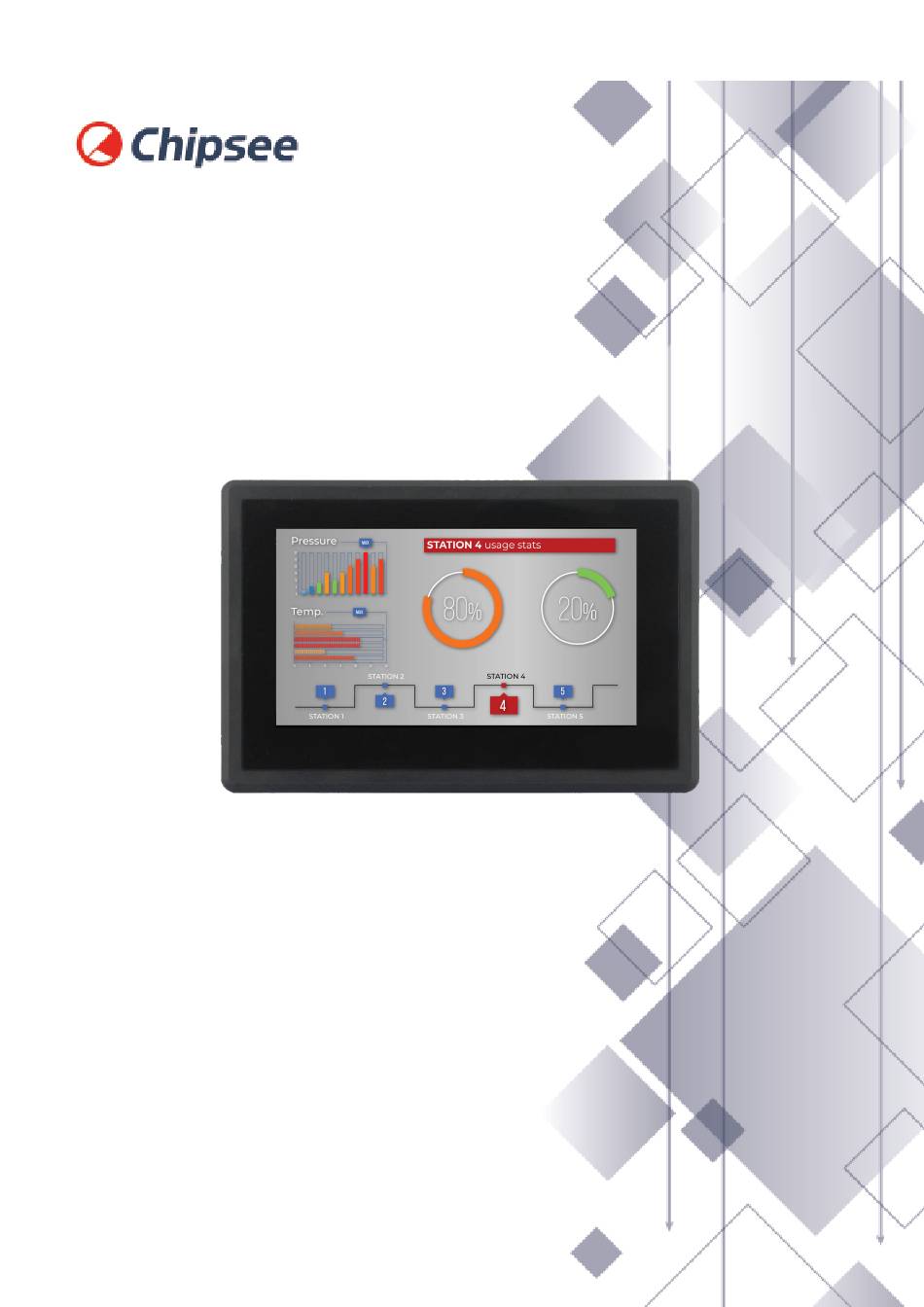

- Page 1 Industrial PC EPC/PPC-A9-070-C PN: CS10600F070 Content can change at anytime, check our website for latest information of this product. www.chipsee.com...
-
Page 2: Table Of Contents
6.5. Expansion Port 7. TF Card Slot 8. Audio Connectors 9. HDMI Connector 10. Boot DIP Switch 11. Mounting Procedure 12. Mechanical Specifications 12.1. EPC-A9-070-C 12.2. PPC-A9-070-C 13. 3D Model 14. Disclaimer 15. Technical Support Chipsee Page 2 of 29... -
Page 3: Epc/Ppc-A9-070-C

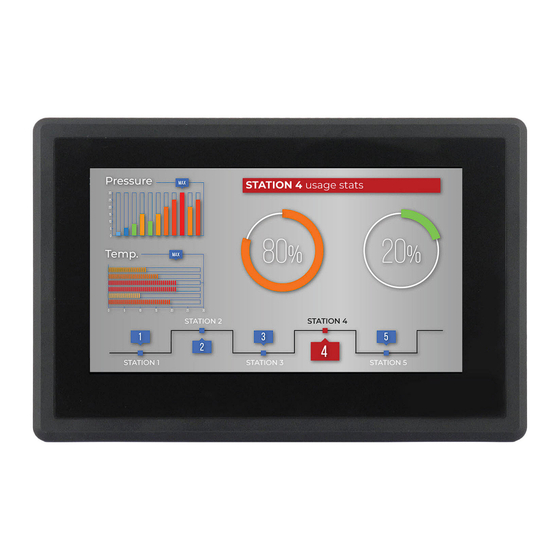

EPC/PPC-A9-070-C EPC/PPC-A9-070-C Front View Chipsee Page 3 of 29... - Page 4 EPC/PPC-A9-070-C Rear View Chipsee Page 4 of 29...
- Page 5 EPC/PPC-A9-070-C Front View (Embedded Variant) Chipsee Page 5 of 29...
- Page 6 EPC/PPC-A9-070-C Rear View (Embedded Variant) Chipsee Page 6 of 29...
-
Page 7: Product Overview
The NXP i.MX6UL APU does not generate extensive heat, so even the thin aluminum housing on PPC version delivers sufficient thermal dissipation. With its junction temperature from -40 to +125°C, the APU itself is well suited for extended temperature range in both automotive and factory environments. Chipsee Page 7 of 29... -
Page 8: Ordering Options
Software Documentation section provides a detailed instruction how to install different OS on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com... -
Page 9: Optional Features
Optional Features Optional Features The EPC/PPC-A9-070-C Industrial Panel PC does not include WiFi/BT module by default. The module is optional and can be selected at the Chipsee store during the ordering process. Warning Installation, repair, and maintenance tasks should be performed by trained personnel only. -
Page 10: Hardware Features
Current at 15V 600mA Max Power Consumption 6W Typical Working Temperature From -20°C to +70°C Multiple Choices (Operating System) EPC-A9-070-C (PN: CS10600F070E): 190 x 107.8 x 27.7mm Dimensions PPC-A9-070-C (PN: CS10600F070P): 206 x 135 x 30.1mm Chipsee Page 10 of 29... - Page 11 This product has 5 x UART channels in total. The default configuration is 2 x RS232, 2 x RS485, and 1 x UART for WiFi/BT module. UART can be swapped between RS232 and RS485 modes easily, so if you need different RS232/RS485 configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com...
-
Page 12: Power Input
DC Power Positive Terminal Pin 2 Negative Input DC Power Negative Terminal Pin 3 Ground Power System Ground Table 2 Power Connector Note The system ground “G” is connected to power negative “-” on board. Chipsee Page 12 of 29... -
Page 13: Touch Screen
Bad GND problem can also be confirmed by touching pin 3 of the Power Input connector with one hand while operating the capacitive touch screen with the other hand. In this case, the operator’s body acts as the Power System Ground. Chipsee Page 13 of 29... -
Page 14: Connectivity
Figure 3: Relation between serial pins on embedded vs. enclosed version The table below offers more detailed description of every pin and its definition: RS232 / RS485 / CAN Pin Definition: Pin Number Definition Description Pin 1 CAN2_H CPU CAN Channel 2 H signal Chipsee Page 14 of 29... - Page 15 System 5V output, up to 1A Table 3 Connectivity Section 2(1,2)UART2 signal is used by the onboard WiFi/BT module, so the I/O port function is disabled by default. If you need the I/O port function instead, please contact Chipsee Technical Support at support@chipsee.com assistance.
-
Page 16: Usb Connectors
There is also 1 x Type Mini B USB OTG connector, configured as slave by default. Figure 5: USB OTG Connector (embedded/enclosed PC version) Warning Be careful not to touch surrounding electronic components accidentally while plugging in USB devices into the embedded IPC version. Chipsee Page 16 of 29... -
Page 17: Lan Connectors
The integrated Ethernet interface supports up to 1 Gbps data throughput. Power over Ethernet (PoE) is not supported. Figure 6: RJ45 LAN Connectors (embedded/enclosed PC version) Note Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m). Chipsee Page 17 of 29... -
Page 18: Wifi & Bt Module
802.11bgn 2.4 GHz Wireless LAN (WLAN). Figure 7: RTL8273 WiFi/BT Module The enclosed (PPC) variant of the product also includes an SMA connector for an external WiFi/BT antenna, as illustrated in the figure below. Figure 8: WiFi+BT Antenna Chipsee Page 18 of 29... -
Page 19: Expansion Port
CSI0_PIXCLK CSI0_HSYNCH CSI0_VSYNCH CLKO CSI0_DAT19 CSI0_DAT18 CSI0_DAT17 CSI0_DAT16 CSI0_DAT15 CSI0_DAT14 CSI0_DAT13 CSI0_DAT12 VDD_5V0 5.0V Output VDD_3V3 3.3V Output Ground Ground GPIO1_29 GPIO4_10 GPIO1_28 GPIO1_30 I2C3_SDA I2C3_SCL GPIO5_2 GPIO3_23 GPIO3_30 GPIO3_31 Table 4 Expansion Connector Pinout Chipsee Page 19 of 29... - Page 20 Since the PCB traces of the port are connected to the processor directly, be careful not to cause electrostatic discharge or over voltage on the pins, as it may damage the processor. Take all the necessary precautions while working with electrostatic-sensitive equipment. Chipsee Page 20 of 29...
-
Page 21: Tf Card Slot
The EPC/PPC-A9-070-C Industrial Panel PC features 1 x TF Card (micro SD) slot. It can address up to 32GB of memory. Figure 10: TF (micro SD) Card Slot Note The product does not come shipped with the TF Card by default Chipsee Page 21 of 29... -
Page 22: Audio Connectors
Figure 11: Audio I/O (embedded/enclosed PC version) In addition, EPC/PPC-A9-070-C features a miniature 2W embedded speaker for audio reproduction, as well as a small buzzer for alarm/notification sounds. Figure 12: 2W Micro Speaker and Buzzer Chipsee Page 22 of 29... -
Page 23: Hdmi Connector
HDMI Connector The EPC/PPC-A9-070-C Industrial Panel PC is equipped with 1 x HDMI connector. The HDMI connector allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software. Figure 13: HDMI Connector Chipsee Page 23 of 29... -
Page 24: Boot Dip Switch
OS, please refer to the table below. Detailed information on how to re- flash the OS can be found in the Software Documentation. Figure 14: Boot DIP Switch Boot Config Select DIP SW eMMC Download Table 5 Boot Configuration Selection Chipsee Page 24 of 29... -
Page 25: Mounting Procedure
Other mounting options might also be supported according to the table in the Hardware Features section. You can find detailed information about mounting in the Mount IPC Guide. Chipsee Page 25 of 29... -
Page 26: Mechanical Specifications
Mechanical Specifications Mechanical Specifications EPC-A9-070-C The outer mechanical dimensions of EPC-A9-070-C are 190 x 107.8 x 27.7mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements. - Page 27 Caution • When you use product EPC-A9-070-C, you should not touch the circuit board on the back of the product if the product is powered ON. • Also, when the product is powered OFF, please take anti-static measures before touching the circuit board.
-
Page 28: D Model
EPC/PPC-A9-070-C 3D model can be viewed in the online doc in a web browser, if you are reading from the PDF version, please visit the online doc EPC/PPC-A9-070-C, select hardware documentation, drag the navigation bar to the 3D Model section. Chipsee Page 28 of 29... -
Page 29: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
