Summary of Contents for Chipsee PPC-CM4-070

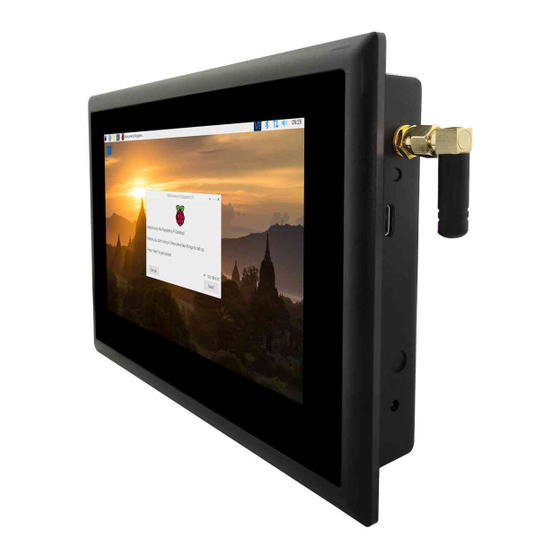

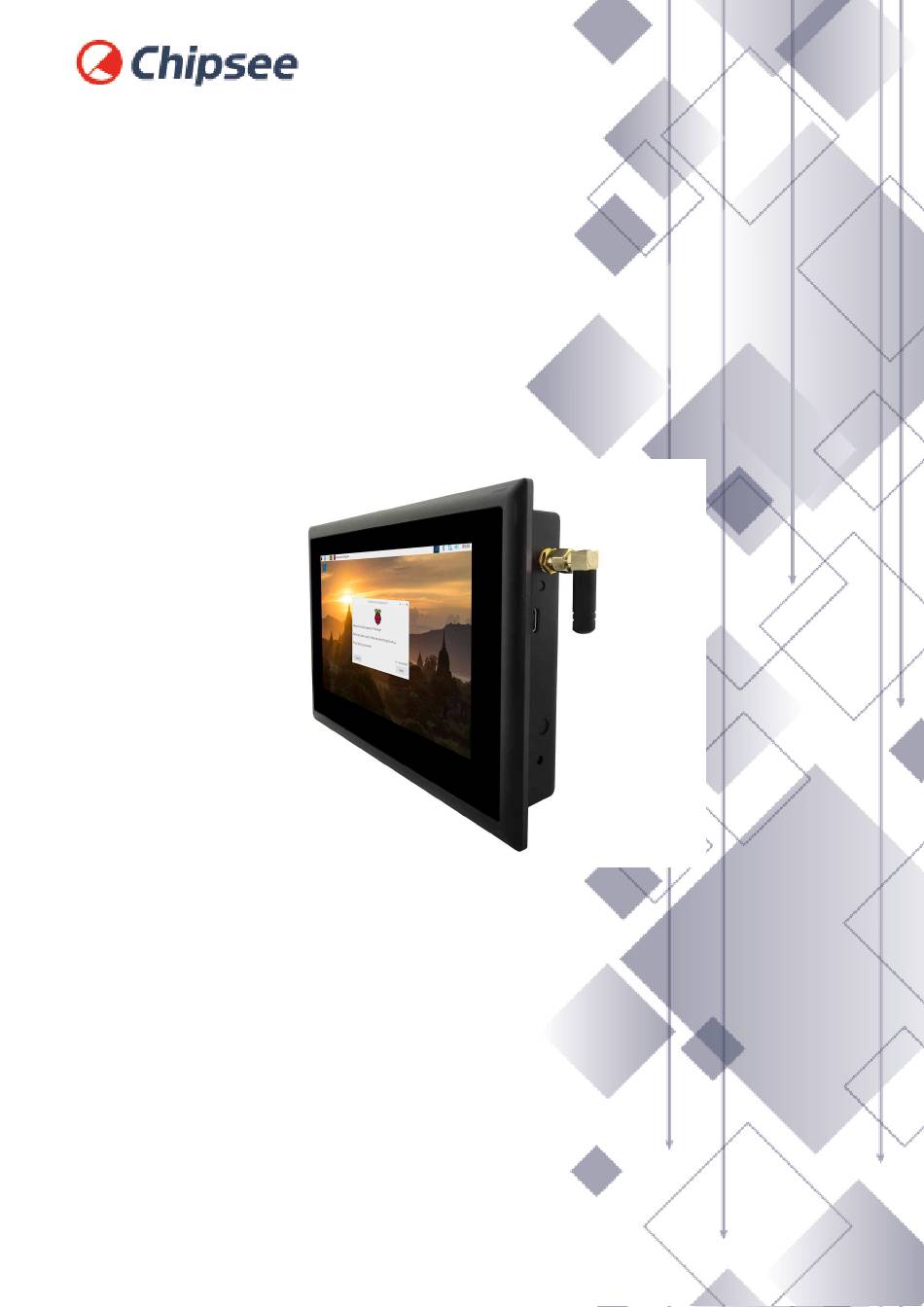

- Page 1 Industrial PC EPC/PPC-CM4-070 PN: CS10600RA4070 Content can change at anytime, check documentation website for latest information. www.chipsee.com...
-
Page 2: Table Of Contents
Contents 1. EPC/PPC-CM4-070 1.1. Product Overview 1.2. Ordering Options ® 1.2.1. Pi CM4 Module 1.2.2. Operating System 1.2.3. Optional Features 1.3. 7 inch CM4 Products Comparision 1.4. Specifications 1.5. Power Input 1.6. Touch Screen 1.7. Connectivity 1.7.1. RS232/RS485/CAN 1.7.2. GPIO Port 1.7.3. - Page 3 1.15. Technical Support Chipsee Page 3 of 27...
-
Page 4: Epc/Ppc-Cm4-070
EPC/PPC-CM4-070 EPC/PPC-CM4-070 Front View Rear View Chipsee Page 4 of 27... - Page 5 EPC/PPC-CM4-070 Front View (Embedded Variant) Rear View (Embedded Variant) Chipsee Page 5 of 27...
-
Page 6: Product Overview
® ® The Cortex -A72 Raspberry Pi series EPC/PPC-CM4-070 (PN: CS10600RA4070) is a high- quality industrial Pi PC. It features a 7” five-point capacitive touch screen with a resolution of 1024 x 600 pixels and brightness of 500 cd/m . -
Page 7: Ordering Options
® The EPC/PPC-CM4-070 industrial Pi PC does not include the CM4 Raspberry Pi module by default. If you would like to purchase it with a CM4, you can select it at the Chipsee store during the ordering process. Operating System This product comes with a pre-installed Debian OS. - Page 8 EPC/PPC-CM4-070 7 inch CM4 Products Comparision Product EPC/PPC-CM4-070 PPC-CM4-070-D 1 x LAN 2 x LAN USB-A 2 x USB 2.0 2 x USB 3.0 8 x Optical Isolated 6 x Raspberry Pi CPU GPIO (Compatible with Pi GPIO Software GPIO...
-
Page 9: Specifications
EPC/PPC-CM4-070 Specifications Specifications The EPC/PPC-CM4-070 industrial Pi PC offers a broad range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below. EPC/PPC-CM4-070 ® Raspberry Pi CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz... - Page 10 Wi-Fi/BT module at the Chipsee store during the ordering process. Chipsee designed one of the TF card slots for Lite version which have no eMMC. We designed the other one for storage expansion, as the TF card for storage expansion use same pins with WiFi, it can’t be used with WiFi at same time.
-
Page 11: Power Input
Power Input Power Input The EPC/PPC-CM4-070 industrial Pi PC can be powered by a wide range of input voltages: From 9V to 36V DC. There are two types of power input connectors. One is a 3 Pin, 3.81mm screw terminal connector, and the other is a 2.1mm DC input head. As shown in the figure below. -
Page 12: Touch Screen
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the EPC/PPC-CM4-070 Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely. -
Page 13: Connectivity
Connectivity Connectivity There are many connectivity options available on the EPC/PPC-CM4-070 industrial Pi PC. It has 2 x USB 2.0 Host, 1 x USB OTG, 1 x Channel Giga LAN (RJ45) Ethernet connector supporting up to 1 Gbps, and 4 x UART and 1 x CAN terminals (RS232/RS485/CAN). -
Page 14: Gpio Port
System +5V Power Output, No more than 1A Current output Table 245 Connectivity Section GPIO Port The EPC/PPC-CM4-070 industrial Pi PC has a 10 Pin 3.81mm GPIO Connector, as shown in the figure below. The table below gives details about the definition of every Pin. Chipsee... - Page 15 EPC/PPC-CM4-070 GPIO Port Attention In order to use the Isolated Output, you need to add an external Isolated Power to the VDD_ISO and GND_ISO. The power voltage should not exceed 24V. The output current can achieve 500mA for every channel, but it also depends on the isolated power that is connected.
-
Page 16: Usb Connectors
EPC/PPC-CM4-070 USB Connectors GPIO Connector GPIO Connector Pin Definition: Pin Number Definition Description Pin 10 VDD_ISO Isolated Power +5V ~ +24V Input Pin 9 GND_ISO Isolated Ground Pin 8 OUT1 Isolated Output 1 Pin 7 OUT2 Isolated Output 2 Pin 6... -
Page 17: Lan Connectors
EPC/PPC-CM4-070 LAN Connectors USB HOST Connectors Attention 1. These two USB host connectors can drive 500mA for each channel at most. 2. These two USB host connectors, Zigbee and 4G/LTE come from the same USB HUB. 3. When you connect this product to the HOST PC through the Type-C port, the USB HUB will be disabled. As a result, the two USB host connectors, Zigbee and 4G/LTE will not work. -
Page 18: Wifi & Bt Module
The product does not come shipped with the Wi-Fi/BT module by default. 3G/4G/LTE Module The EPC/PPC-CM4-070 industrial Pi PC is equipped with a mini-PCIe connector that can connect to a 3G/4G/LTE module. The customer will also need a SIM Card Holder and a 3G/ 4G/LTE antenna to ensure 3G/4G/LTE works on the EPC/PPC-CM4-070. -
Page 19: Zigbee Module
Zigbee Module The EPC/PPC-CM4-070 industrial Pi PC supports an onboard Zigbee module. The Zigbee controller is TI CC2531, and the Raspberry Pi forum supports it. For CS10600RA4070P, there is a connector on the backside of the case that you can use to connect the external Zigbee antenna, as described in the figure below. -
Page 20: Camera Connector
The product does not come with the Zigbee module by default. Camera Connector The EPC/PPC-CM4-070 industrial Pi PC has a 15 Pin Camera Connector, as shown in the figure below. The camera signals come from CAM1. The table below gives details about the definition of every Pin. - Page 21 EPC/PPC-CM4-070 Camera Connector Camera Connector Camera Connector Pin Definition: Pin Number Definition Description Pin 1 Power Ground Pin 2 CAM1_DN0 CAM1_DN0 Pin 3 CAM1_DP0 CAM1_DP0 Pin 4 Power Ground Pin 5 CAM1_DN1 CAM1_DN1 Pin 6 CAM1_DP1 CAM1_DP1 Pin 7 Power Ground...
-
Page 22: Tf Card Slot
EPC/PPC-CM4-070 TF Card Slot TF Card Slot The EPC/PPC-CM4-070 industrial Pi PC features 2 x TF Card (micro SD) slot. A slot can address up to 128GB of memory. TF (micro SD) Card Slot Attention The SD0 is used only for the Lite version of Compute Module 4 that has no internal eMMC. If you use CM4 with eMMC, this SD0 will be disabled. -
Page 23: Audio Connectors
EPC/PPC-CM4-070 Audio Connectors Audio Connectors The EPC/PPC-CM4-070 industrial Pi PC features some audio peripherals. It has 1 x 3.5mm audio output jack. Also, the EPC/PPC-CM4-070 industrial Pi PC has a miniature 2W internal speaker for audio reproduction, as well as a small buzzer for alarm/notification sounds. -
Page 24: Prog Button
EPC/PPC-CM4-070 PROG Button PROG Button The EPC/PPC-CM4-070 industrial Pi PC has one button for entering usb download mode, as shown in the figure below. When booting with the button being pressed, the Raspberry Pi will boot from the USB connector. You can use this feature to download the OS software to the internal eMMC. -
Page 25: Mounting Procedure
EPC/PPC-CM4-070 Mounting Procedure Mounting Procedure The EPC/PPC-CM4-070 industrial Pi PC can be mounted with 4 x M4 screws, enabling simplified installation onto any standard mounting fixture. CS10600RA4070E You can mount CS10600RA4070E with the Embedded mounting method, as shown in the figure below. -
Page 26: Mechanical Specifications
Please refer to the technical drawing in the figure below for details related to the specific product measurements. Figure 919: CS10600RA4070E Technical Drawing 3D Model EPC/PPC-CM4-070 3D model can be viewed in the online doc in a web browser, if you are reading from the PDF version, please visit the online doc. -
Page 27: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
