- Page 1 Industrial PC PPC/EPC-A8-097-C PN: CS10768T097 Revision 1.1 www.chipsee.com...
-
Page 2: Table Of Contents
1.6.4. WiFi & BT Module 1.6.5. 3G/4G/LTE Module 1.6.6. GPIO Port 1.7. TF Card Slot 1.8. Audio Connectors 1.9. Boot DIP Switch 1.10. Mounting Procedure 1.11. Mechanical Specifications 1.11.1. EPC-A8-097-C 1.11.2. PPC-A8-097-C 1.12. Disclaimer 1.13. Technical Support Chipsee Page 2 of 19... -
Page 3: Ppc/Epc-A8-097-C

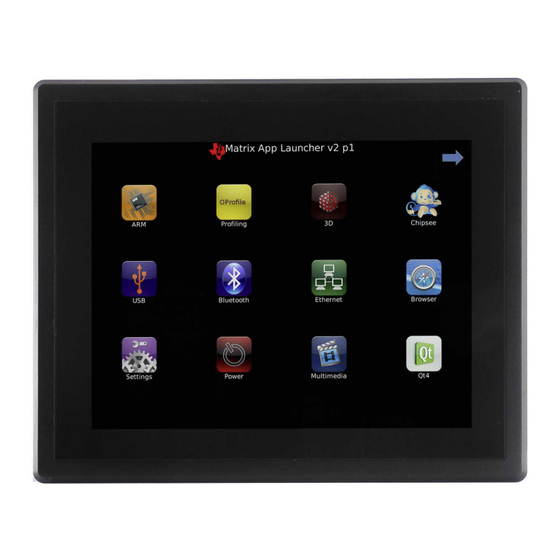

PPC/EPC-A8-097-C PPC/EPC-A8-097-C Note EOL PRODUCT: This product has been discontinued, due to market demand and shifts in technology. Please Contact if you would like to purchase it. Front View Rear View Chipsee Page 3 of 19... -
Page 4: Product Overview
The Cortex -A8 series PPC/EPC-A8-097-C (PN: CS10768T097) is a high-quality industrial PC. It features a 9.7” resistive touch screen with a resolution of 1024 x 768 pixels and brightness of 350 cd/m . Key Applications • Human Machine Interface HMI • Process Control • Process Monitoring Chipsee Page 4 of 19... -
Page 5: Ordering Options
The AM33554 MPU does not generate extensive heat, so even the thin aluminum housing on PPC version delivers sufficient thermal dissipation. Ordering Options Chipsee products can be customized during the ordering process. The product will be shipped with the pre-installed factory defaults if no extra requirements are specified. The table in the... -
Page 6: Operating System
Software Documentation section provides a detailed instruction how to install different OS on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com... - Page 7 From -20°C to +70°C Multiple Choices (Operating System) EPC-A8-097-C (PN: CS10768T097E): 226 x 172 x 28mm Dimensions PPC-A8-097-C (PN: CS10768T097P): 252 x 205 x 33mm EPC-A8-097-C (PN: CS10768T097E): 610g Weight PPC-A8-097-C (PN: CS10768T097P): 1260g EPC-A8-097-C (PN: CS10768T097E): Embedded Mounting PPC-A8-097-C (PN: CS10768T097P): Panel...
-
Page 8: Power Input
The system ground “G” is connected to power negative “-” on board. Touch Screen The PPC/EPC-A8-097-C Industrial PC uses a 5-point capacitive touch screen screen. The figure below shows the capacitive or resistive screen connected to the motherboard via the FPC connector. Chipsee Page 8 of 19... -
Page 9: Connectivity
Ethernet connector supporting up to 1 Gbps, and 5 x UART terminals (RS232/RS485). RS232/RS485/CAN The serial communication interfaces (RS485, RS482, and CAN) are routed to a 12-pin 3.81mm terminal, as illustrated on the figure below. Chipsee Page 9 of 19... - Page 10 UART2 of CPU, RS485 A Signal Pin 5 UART4 of CPU, RS485 B Signal Pin 4 UART4 of CPU, RS485 A Signal Pin 3 CAN_H DCAN0 of CPU, CAN H Signal Pin 2 CAN_L DCAN0 of CPU, CAN L Signal Chipsee Page 10 of 19...
-
Page 11: Usb Connectors
LAN Connectors LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as shown the figure below. The integrated Ethernet interface supports up to 1 Gbps data throughput. Figure 690: RJ45 LAN Connectors (embedded/enclosed PC version) Chipsee Page 11 of 19... -
Page 12: Wifi & Bt Module
The PPC/EPC-A8-097-C Industrial PC is equipped with a mini-PCIe connector that can connect to a 3G/4G/LTE module. The customer will also need a SIM Card Holder and a 3G/ 4G/LTE Antenna Connector to ensure 3G/4G/LTE works on the PPC/EPC-A8-097-C. Chipsee Page 12 of 19... -
Page 13: Gpio Port
The PPC/EPC-A8-097-C Industrial PC has a 10 Pin 3.81mm GPIO Connector, as shown on the figure below, that is labeled as P18 on the PCB. The table below gives details about the definition of every Pin. Figure 695: GPIO Connector Chipsee Page 13 of 19... - Page 14 OUT3 Isolated Output 3 Pin 6 OUT4 Isolated Output 4 Pin 7 Isolated Input 1 Pin 8 Isolated Input 2 Pin 9 Isolated Input 3 Pin 10 Isolated Input 4 Table 181 GPIO Connector Pin-out Chipsee Page 14 of 19...
-
Page 15: Tf Card Slot
(line-out, typically around -10 dBV). On the enclosed panel PC version, both audio input and audio output are clearly marked on the figure below. Figure 697: Audio I/O (embedded/enclosed PC version) Chipsee Page 15 of 19... -
Page 16: Boot Dip Switch
Other mounting options might also be supported according to the table in the Hardware Features section. You can find detailed information about mounting in the Mount IPC Guide. Chipsee Page 16 of 19... -
Page 17: Mechanical Specifications
Figure 700: EPC-A8-097-C Technical Drawing PPC-A8-097-C For PPC-A8-097-C, the outer mechanical dimensions are 252 x 205 x 33mm (W x L x H). Panel Mounting Chipsee Page 17 of 19... - Page 18 Note With the PPC-A8-097-C industrial PC, the operator can fix the PC into the panel by pushing it from the front inside the panel as described in the figure above. The recommended maximum thickness of the panel material is 8mm.
-
Page 19: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
