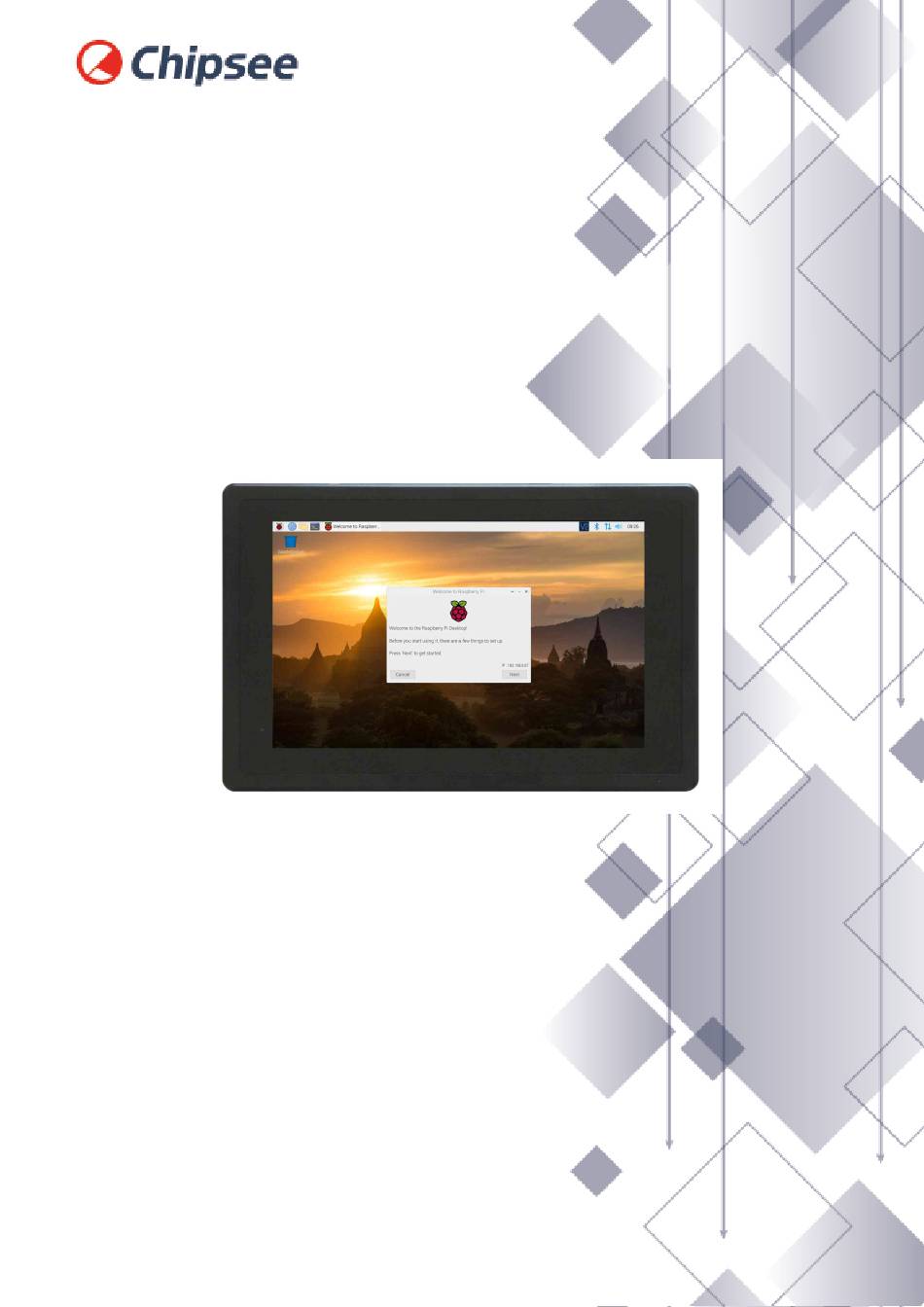

- Page 1 Industrial PC EPC/PPC-CM3-101 PN: CS12800RA101 Revision 1.1 www.chipsee.com...
-
Page 2: Table Of Contents
1.6.5. WiFi & BT Module 1.6.6. 3G/4G/LTE Module 1.7. TF Card Slot 1.8. Audio Connectors 1.9. Boot DIP Switch 1.10. Mounting Procedure 1.10.1. CS12800RA101E 1.10.2. CS12800RA101P 1.11. Mechanical Specifications 1.11.1. CS12800RA101E 1.11.2. CS12800RA101P 1.12. Disclaimer 1.13. Technical Support Chipsee Page 2 of 19... -
Page 3: Epc/Ppc-Cm3-101
EPC/PPC-CM3-101 EPC/PPC-CM3-101 Front View Rear View Chipsee Page 3 of 19... -
Page 4: Product Overview
Pi PC. It features a 10.1” five-point capacitive a touch screen with a resolution of 1280 x 800 pixels and brightness of 500 cd/m . Key Applications • Human Machine Interface HMI • Process Control • Process Monitoring Chipsee Page 4 of 19... -
Page 5: Ordering Options
Optional Features The EPC/PPC-CM3-101 industrial Pi PC does not include the 3G/4G/LTE modules by default. These modules are optional and can be selected at the Chipsee store during the ordering process. Chipsee Page 5 of 19... -
Page 6: Specifications
Warning Installation, repair, and maintenance tasks should be performed by trained personnel only. Chipsee does not bear any responsibility for damage caused by inadequate handling of the product. Specifications The EPC/PPC-CM3-101 industrial Pi PC offers a board range of performance and connectivity options for scalable integration, providing expandability according to future needs. -
Page 7: Power Input
Table 210 Key Features The CAN channel may be customized to to 2 CAN channels on request. Chipsee designed one of the TF card slots for Lite version but it does not have an eMMC. We designed the other one for storage expansion. -
Page 8: Touch Screen
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the EPC/PPC-CM3-101 Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely. Chipsee Page 8 of 19... -
Page 9: Connectivity
Pin Number Definition Description Pin 1 CAN1_L USB CAN Channel 1L signal Pin 2 CAN1_H USB CAN Channel 1H signal Pin 3 RS485_4+ USB UART4, RS485 +(A) signal Pin 4 RS485_4- USB UART4, RS485 -(B) signal Chipsee Page 9 of 19... -
Page 10: Gpio Port
The table below gives details about the definition of every Pin. Figure 894: GPIO Connector GPIO Connector Pin Definition: Pin Number Definition Description Pin 10 Isolated Power +5V Input Pin 9 Isolated Ground Pin 8 OUT1 Isolated Output 1 Chipsee Page 10 of 19... -
Page 11: Usb Connectors
The product has one USB OTG connector that works as a slave by default. You can use it to establish a connection with the host PC and for downloading the system to the eMMC of CM3/CM3+. Chipsee Page 11 of 19... -
Page 12: Lan Connectors
LAN (RJ45) connector provides Ethernet connectivity over standardized Ethernet cables as shown the figure below. The integrated Ethernet interface supports up to 1 Gbps data throughput. Figure 897: RJ45 LAN Connectors (embedded/enclosed PC version) Note Chipsee Page 12 of 19... -
Page 13: Wifi & Bt Module
The EPC/PPC-CM3-101 industrial Pi PC is equipped with a mini-PCIe connector that can connect to a 3G/4G module. The customer will also need a SIM Card Holder and a 3G/4G Antenna Connector to ensure 3G/4G works on the EPC/PPC-CM3-101. Chipsee Page 13 of 19... -
Page 14: Tf Card Slot
The EPC/PPC-CM3-101 industrial Pi PC features 2 x TF Card (micro SD) slot: SD0 and SD1. Both slots can address up to 32GB of memory. The SD0 is used only for the Lite version of Compute Module that has no internal eMMC. The SD1 is used for external storage. Chipsee Page 14 of 19... -
Page 15: Audio Connectors
There is no need to alter the DIP switch settings during regular operation. However, if you need to reinstall the OS, please refer to the detailed information on how to re-flash the OS from the Software Documentation. Chipsee Page 15 of 19... -
Page 16: Mounting Procedure
You can mount CS12800RA101E with the Embedded mounting method, as shown on the figure below. Figure 905: Embedded mounting CS12800RA101P You can mount CS12800RA101P with the Vesa (75 x 75mm) and Panel mounting methods, as shown on the figure below. Chipsee Page 16 of 19... -
Page 17: Mechanical Specifications
The outer mechanical dimensions of CS12800RA101E are 245 x 155 x 11mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements. Figure 907: CS12800RA101E Technical Drawing Chipsee Page 17 of 19... -
Page 18: Cs12800Ra101P
For CS12800RA101P, the outer mechanical dimensions are 280 x 185 x 27.5mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements. Figure 908: CS12800RA101P Technical Drawing Chipsee Page 18 of 19... -
Page 19: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
