- Page 1 Industrial PC EPC/PPC-CM3-070 PN: CS10600RA070 Content can change at anytime, check documentation website for latest information. www.chipsee.com...
-
Page 2: Table Of Contents
Contents 1. EPC/PPC-CM3-070 1.1. Product Overview 1.2. Ordering Options 1.2.1. Operating System 1.2.2. Optional Features 1.3. Specifications 1.4. Power Input 1.5. Touch Screen 1.6. Connectivity 1.6.1. RS232/RS485 1.6.2. GPIO Port 1.6.3. USB Connectors 1.6.4. LAN Connectors 1.6.5. WiFi & BT Module 1.6.6. -
Page 3: Epc/Ppc-Cm3-070
EPC/PPC-CM3-070 EPC/PPC-CM3-070 Front View Rear View Chipsee Page 3 of 19... -
Page 4: Product Overview

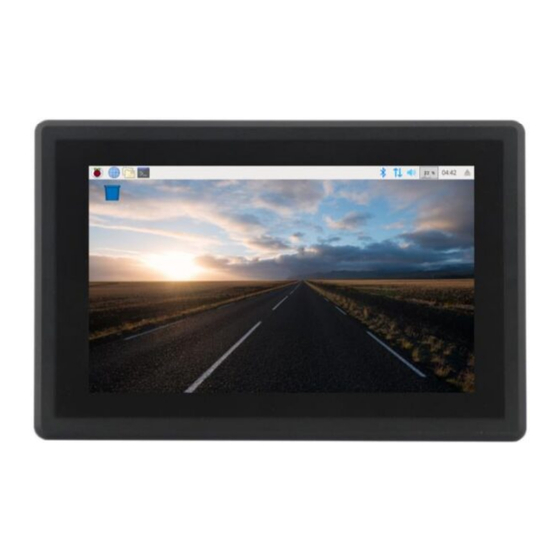

® ® The Cortex -A53 Raspberry Pi series EPC/PPC-CM3-070 (PN: CS10600RA070) is a high- quality industrial Pi PC. It features a 7.0” five-point capacitive touch screen with a resolution of 1024 x 600 pixels and brightness of 500 cd/m . -
Page 5: Ordering Options
Optional Features The EPC/PPC-CM3-070 industrial Pi PC does not include the 3G/4G/LTE modules by default. These modules are optional and can be selected at the Chipsee store during the ordering process. Chipsee Page 5 of 19... -
Page 6: Specifications
Warning Installation, repair, and maintenance tasks should be performed by trained personnel only. Chipsee does not bear any responsibility for damage caused by inadequate handling of the product. Specifications The EPC/PPC-CM3-070 industrial Pi PC offers a board range of performance and connectivity options for scalable integration, providing expandability according to future needs. -
Page 7: Power Input
The RS485 multiplexes with the RS232_1, which means that you cannot use RS232_1 and RS485 at the same time. Chipsee designed one of the TF card slots for Lite version but it does not have an eMMC. We designed the other one for storage expansion. -
Page 8: Touch Screen
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the EPC/PPC-CM3-070 Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely. -
Page 9: Connectivity
The serial communication interfaces (RS485, RS482, and CAN) are routed to a 8-pin 3.81mm terminal, as illustrated on the figure below. Figure 878: Relation between serial pins on embedded vs. enclosed version of the EPC/PPC-CM3-070 Industrial PC The table below offers more detailed description of every pin and its definition:... -
Page 10: Gpio Port
RS485_1 and RS232_1 share the same channel (UART1) and therefore you cannot use RS232_1 and RS485_1 at the same time. GPIO Port The EPC/PPC-CM3-070 industrial Pi PC has a 10 Pin 3.81mm GPIO Connector, as shown on the figure below. The table below gives details about the definition of every Pin. Figure 879: GPIO Connector... - Page 11 EPC/PPC-CM3-070 GPIO Port Isolated GPIO reduced schematic GPIO Connector Pin Definition: Pin Number Definition Description Pin 10 Isolated Power +5V Input Pin 9 Isolated Ground Pin 8 OUT1 Isolated Output 1 Pin 7 OUT2 Isolated Output 2 Pin 6 OUT3...
-
Page 12: Usb Connectors
EPC/PPC-CM3-070 USB Connectors Attention • The GPIO has been Opt-Isolated and it uses the 5V Logic by default. You can use an external isolated power input but the power input range should be from 5V to 24V DC. •... -
Page 13: Lan Connectors
Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m). WiFi & BT Module The EPC/PPC-CM3-070 industrial Pi PC is equipped with the popular Realtek RTL8723 WiFi/ BT module that supports BT/BLE 4.0 (with backward compatibility), as well as 802.11bgn 2.4 GHz Wireless LAN (WLAN). -
Page 14: 3G/4G/Lte Module
Figure 884: WiFi+BT Antenna 3G/4G/LTE Module The EPC/PPC-CM3-070 industrial Pi PC is equipped with a mini-PCIe connector that can connect to a 3G/4G module. The customer will also need a SIM Card Holder and a 3G/4G Antenna Connector to ensure 3G/4G works on the EPC/PPC-CM3-070. -
Page 15: Tf Card Slot
The product does not come shipped with the 3G/4G module by default. TF Card Slot The EPC/PPC-CM3-070 industrial Pi PC features 2 x TF Card (micro SD) slot: SD0 and SD1. Both slots can address up to 32GB of memory. -
Page 16: Boot Dip Switch
Figure 888: Audio Connector (embedded/enclosed PC version) Boot DIP Switch The EPC/PPC-CM3-070 industrial Pi PC has one switch on the board marked as SW1, shown in the figure below. It has two positions USB and eMMC. When switch is in the USB position, the Raspberry Pi will boot from the USB connector. You can use this function to download the OS software to the internal eMMC. -
Page 17: Mounting Procedure
EPC/PPC-CM3-070 Mounting Procedure Mounting Procedure The EPC/PPC-CM3-070 industrial Pi PC can be mounted with 4 x M4 screws, enabling simplified installation onto any standard mounting fixture. CS10600RA070E You can mount CS10600RA070E with the Embedded mounting method, as shown on the figure below. -
Page 18: Mechanical Specifications
EPC/PPC-CM3-070 Mechanical Specifications Mechanical Specifications CS10600RA070E The outer mechanical dimensions of CS10600RA070E are 190 x 107.8 x 27.7mm (W x L x H). Please refer to the technical drawing in the figure below for details related to the specific product measurements. -
Page 19: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
