2.10.3.1. DSDF Original Pick-Up Assembly

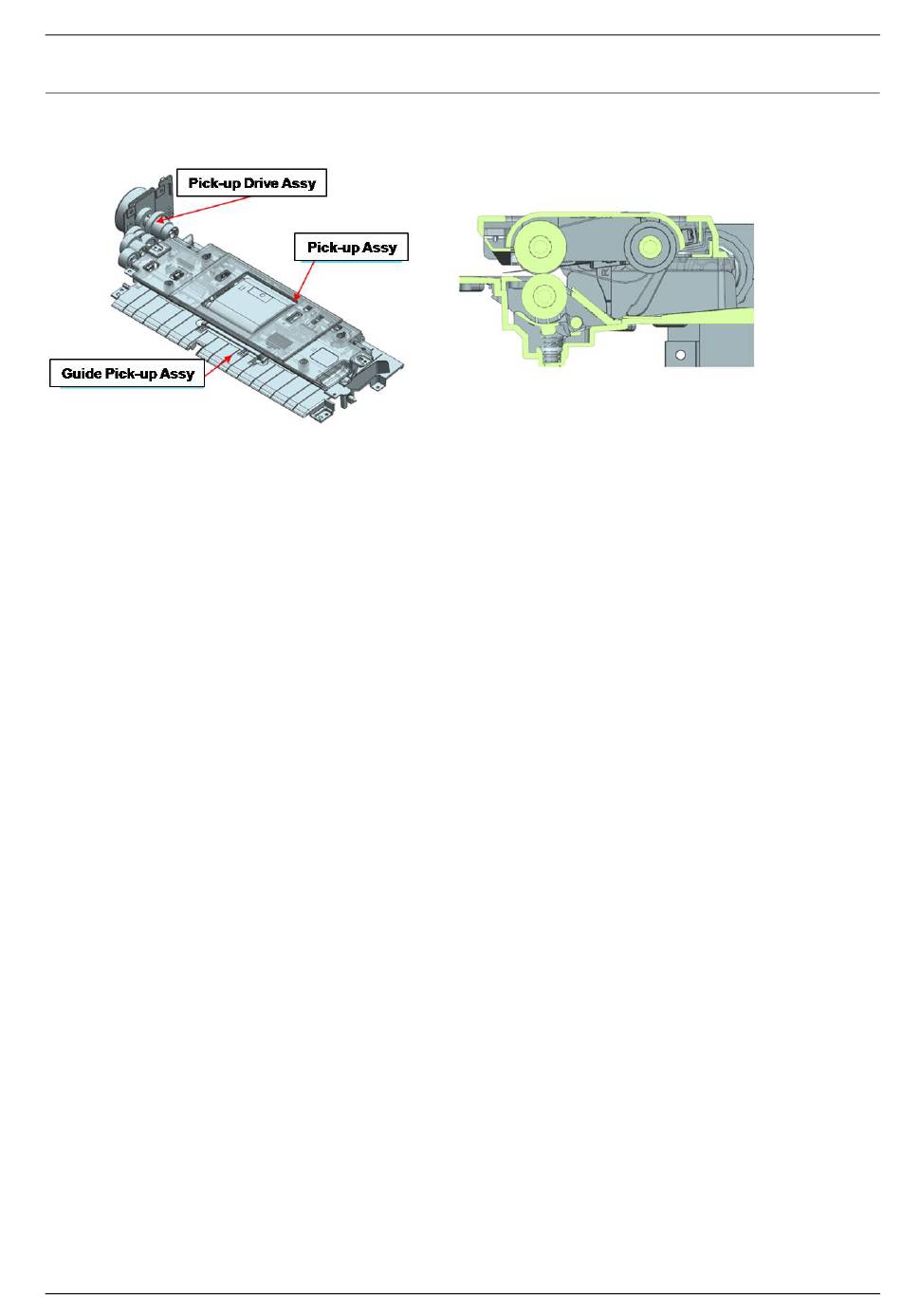

DSDF Original Pick-Up Assembly consists of Pick-up Drive Assy, Pick-up Assy, and Guide Pick-up Assy.
•
Operation Procedure
1) Checks a paper detection.
2) Checks the original width size.
3) Holds the original not to be moved in paper path before pick up driving.
4) Starts pick up driving.
5) Separates an original by the reverse roller.
