2.15. High Capacity Feeder Side Unit (Large Cassette Tray Unit)

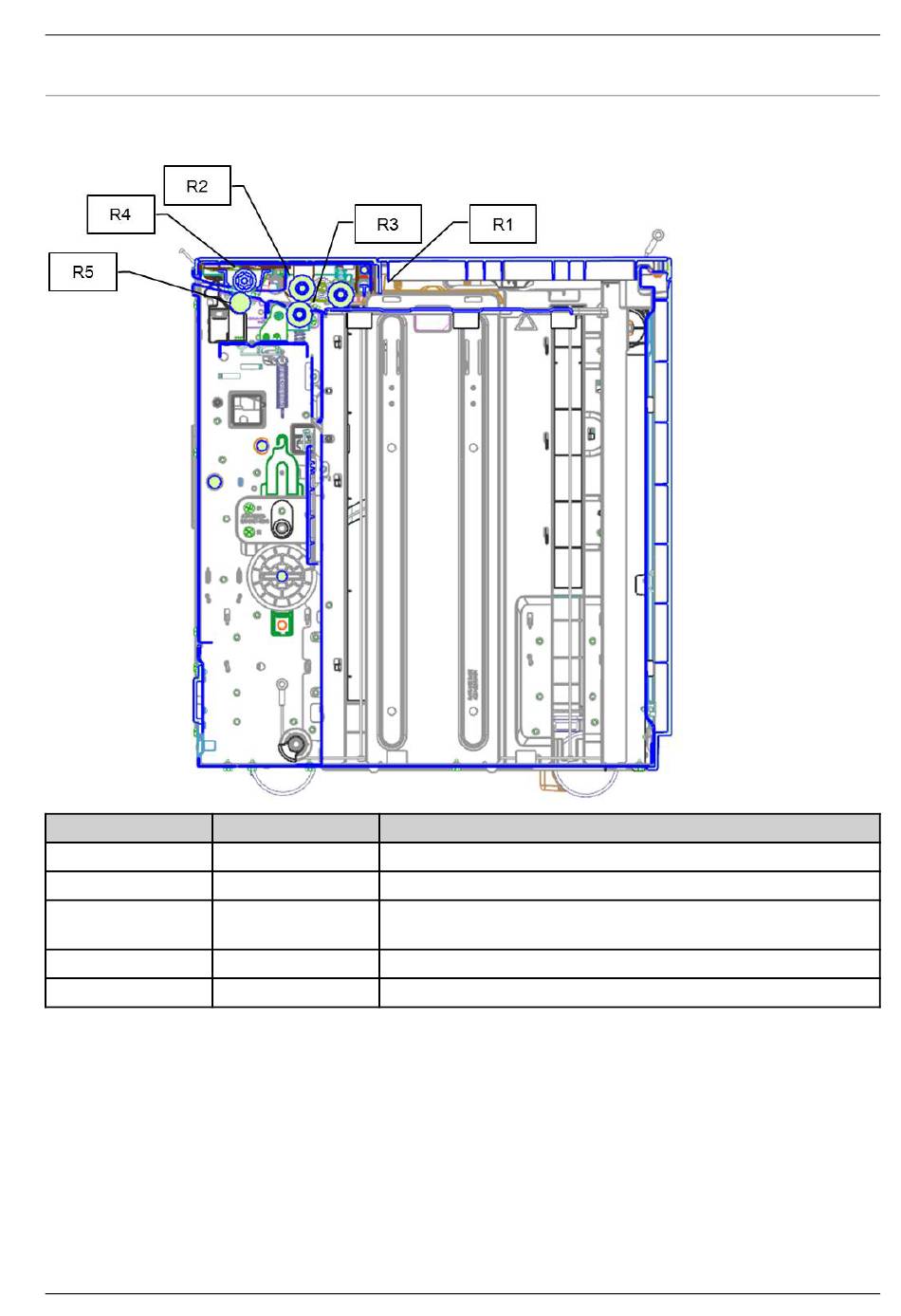

1) Paper Feeding System (Rollers and Functions)
Roller No.
R1
R2
R3
R4
R5
Copyright© 1995-2017 SAMSUNG. All rights reserved.
Roller Name Function
Pick-up roller Transports paper from paper stack.
Forward roller Transports one sheet of paper to Pre feed roller.
Reverse(Separation) Assure paper transportation one by one.
roller
Idle roller Transports paper to Feed roller.
Feed roller Makes paper transportation smooth.
2. Product Specifications and Description
2-137
