3. Disassembly and Reassembly

3.3.34.2. DSDF main motor

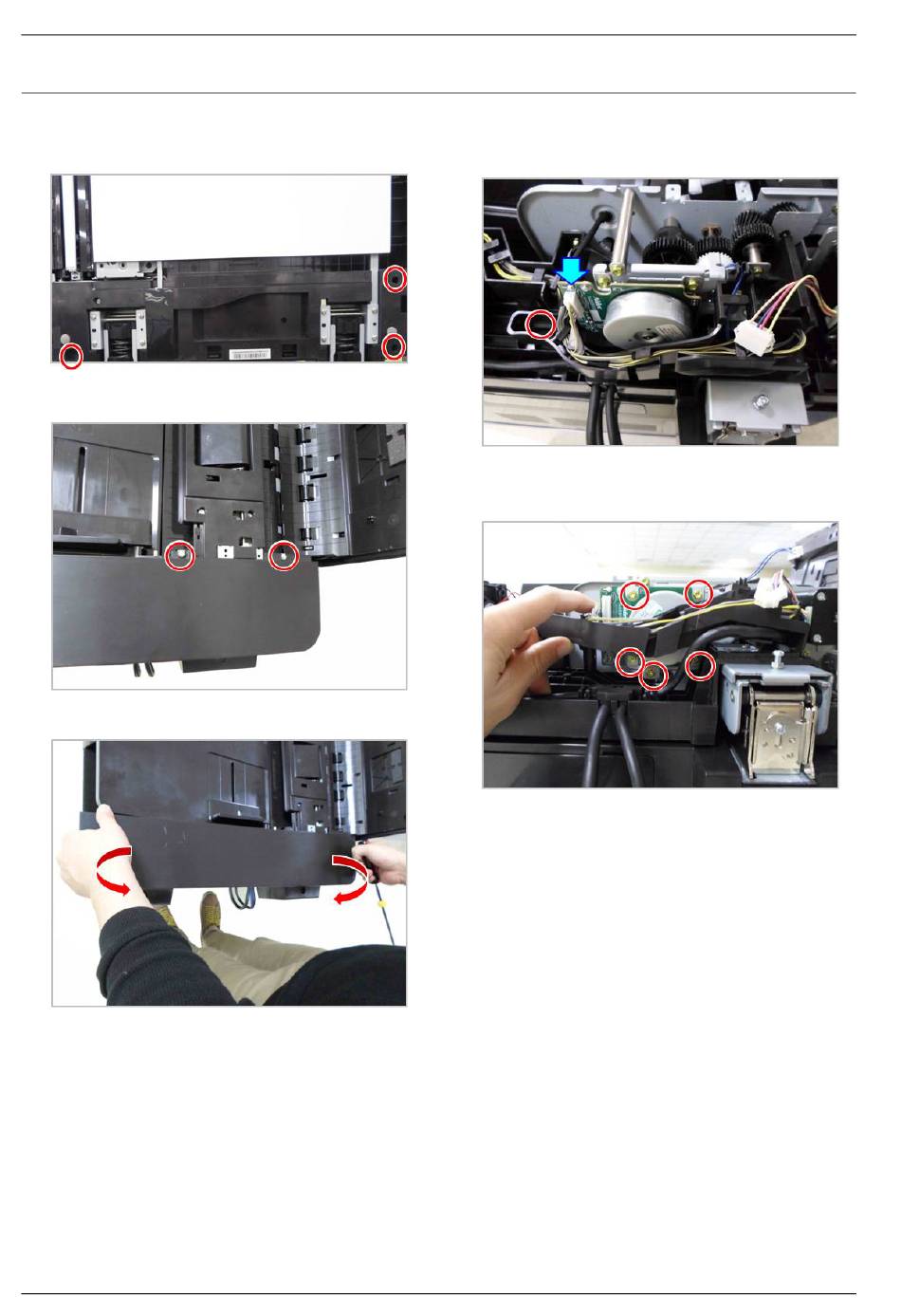

1. Open the DSDF unit. Remove 3 screws from the
bottom of the DSDF. And close the DSDF unit.
2. Open DSDF-open cover. Remove 2 screws.
3. Release the DSDF rear cover.
3-62
4. Unplug the motor connector. Remove 1 screw securing
the harness guide.
5. Remove 5 screws. Release the DSDF main motor while
pulling the harness guide.
