2. Product Specifications and Description

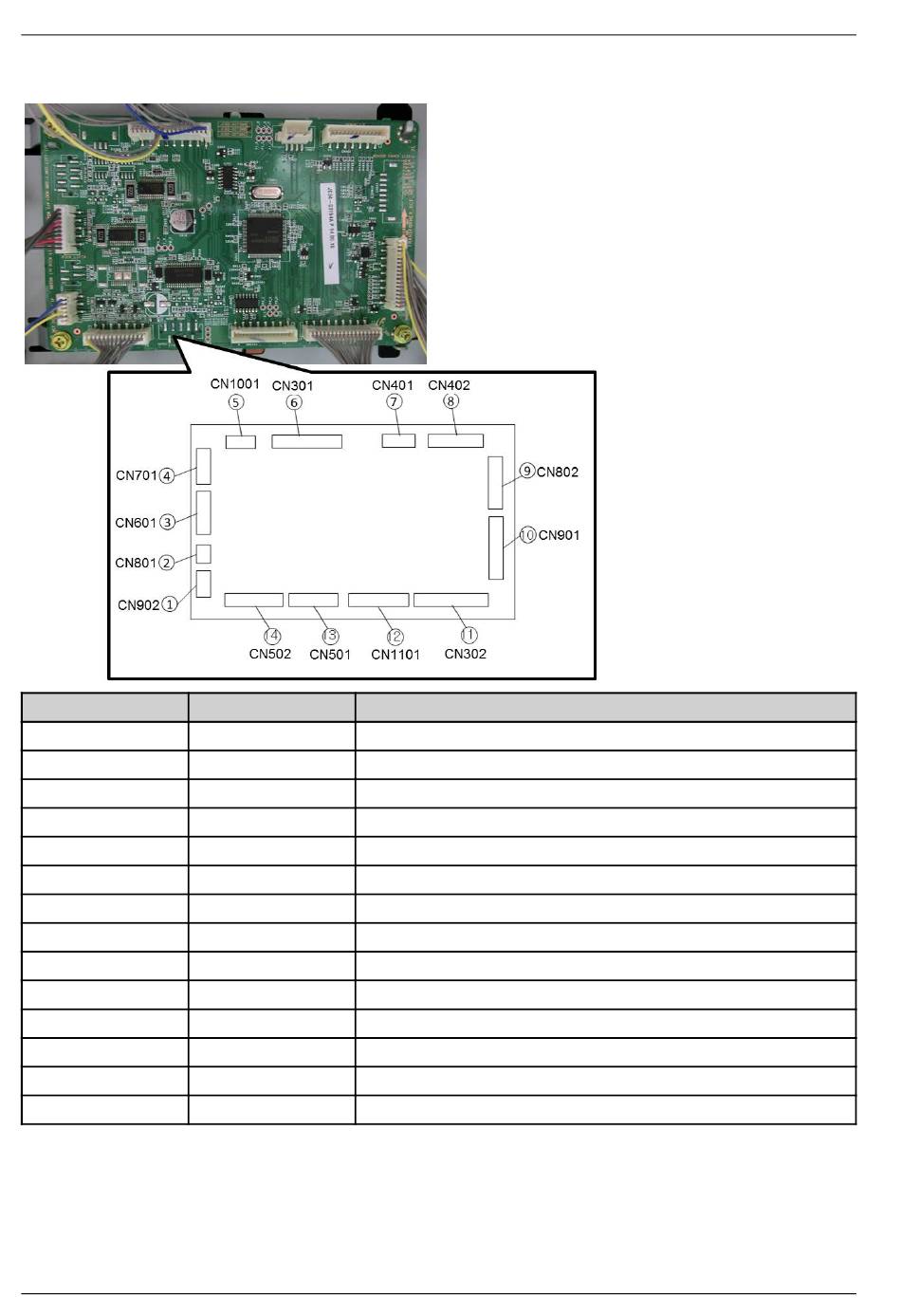

6) PBA Connection
Connector Number
CN902
CN801
CN601
CN701
CN1001
CN301
CN401
CN402
CN802
CN901
CN302
CN1101
CN501
CN502
2-136
Item Number Connection
1 DC MOTOR I/F
2 PICK_LIFT4 MOTOR I/F
3 PICK_LIFT3 & FEED MOTOR I/F
4 LOCKMOT/MOT LIFT/LCT HOME I/F
5 TOPCOVER_OPEN INTERLOCK
6 MAIN I/F
7 UART DEBUG I/F
8 E1 JTAG DEBUG I/F
9 SENSOR PAPER SIZE
10 HCF INNER DRAWER
11 SUB I/F
12 BBP I/F
13 T4 SENSOR
14 T3 SENSOR
