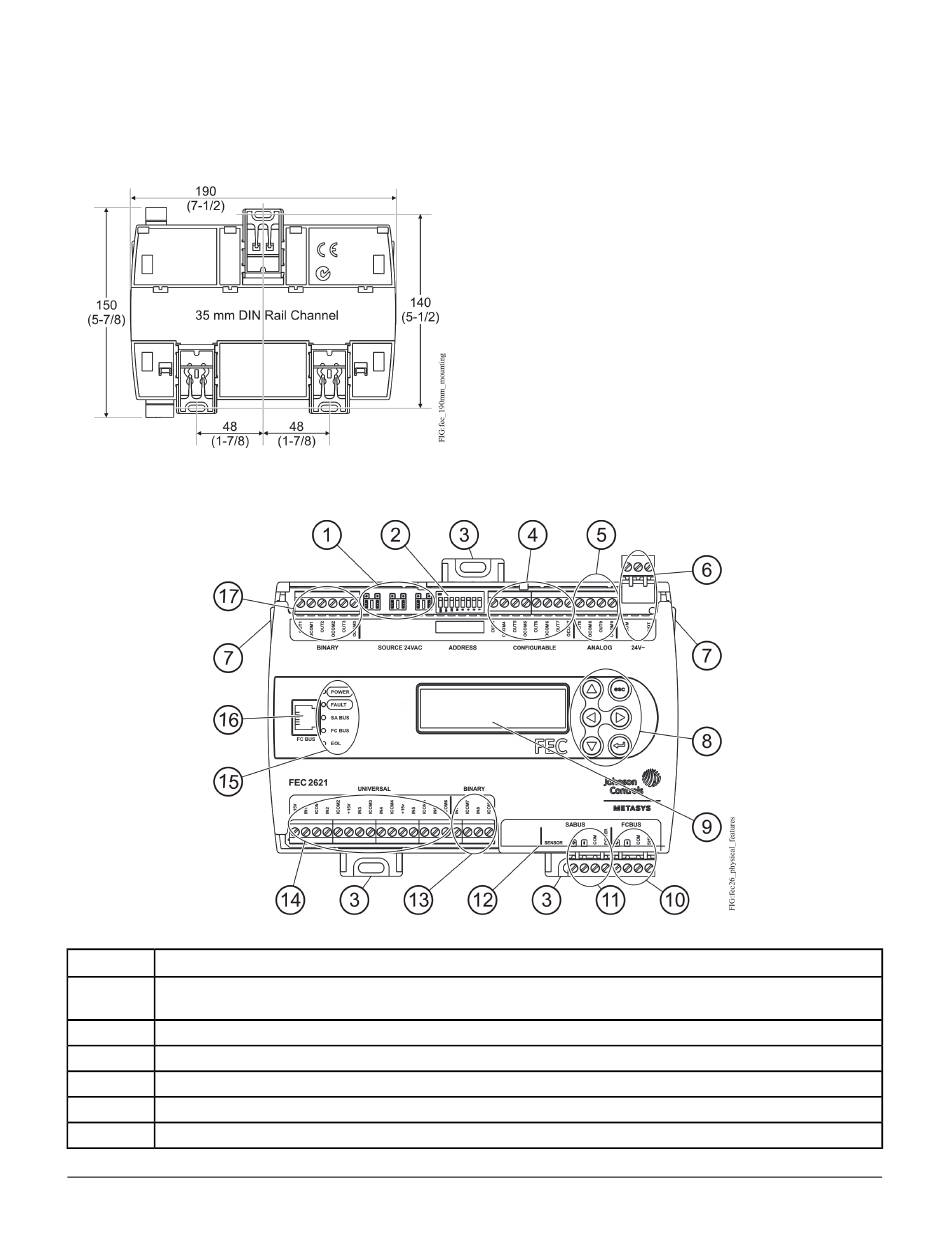

Figure 2: Back of FEC26 Controller Showing Extended
Mounting Clips, DIN Rail Channel, and Mounting
Dimensions, mm (in.)
Table 1: FEC2621 Physical Features
Callout
Physical Feature: Description and References
1
Binary Output (BO) Source Power Selection Jumper Pin Blocks, 3 – BO Jumper Pin Blocks. See for more
information.
2
Device Address DIP Switch Block. See for more information.
3
Mounting Clip. See for more information.
4
Configurable Output (COs) Terminal Blocks. See for more information.
5
Analog Outputs (AOs) Terminal Block. See for more information.
6
24 VAC, Class 2 Supply Power Terminal Block. See for more information.
FEC26Field Equipment Controllers Installation Instructions
