7. Gimbal camera

1) Gimbal

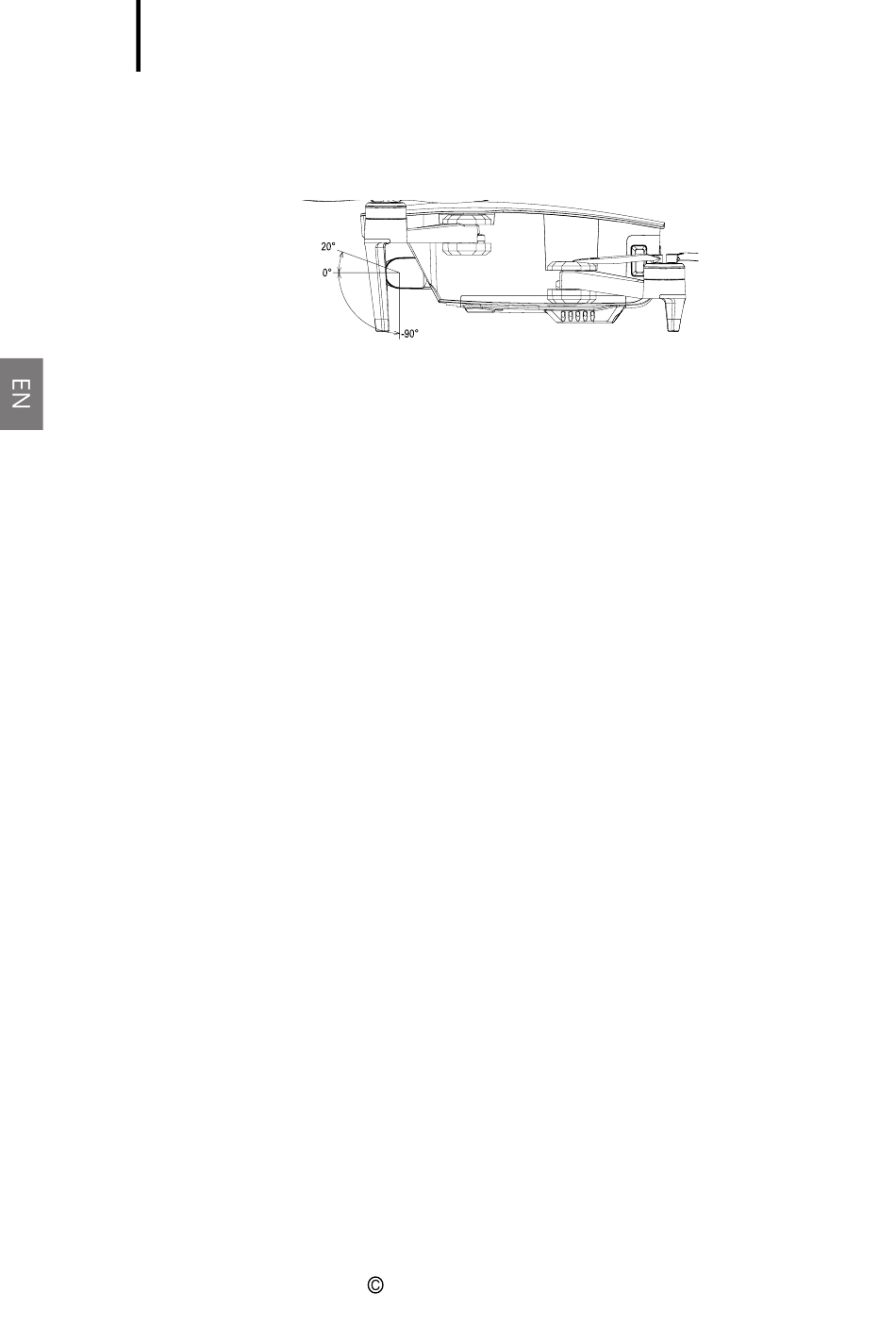

The 3-axis stabilized gimbal a stable platform for the camera, so that the camera can also take
a stable picture when the aircraft is flying at high speed. The controllable angle range of gimbal
is - 90 ° to 20 °.
Note：
● Remove the gimbal cover before flight, during storage or transportation, re-install the cover to
protect the gimbal .
● Please place the aircraft on the flat and open ground before takeoff. If it is placed on the
uneven ground or grass, the gimbal will touch the ground object, or the gimbal will be subject
to excessive external force (such as being collided or broken), which may cause the gimbal
motor to enter the protective state and fail the self inspection.
● Do not touch the gimbal after the aircraft is powered on.
● Please do not add any objects on the gimbal, otherwise it may affect the performance of the
gimbal, or even burn the motor.
● The gimbal contains precision components. If it is collided or damaged, the precision
components will be damaged, which may lead to the performance degradation of the gimbal.
Please protect the gimbal from physical damage.
● Please keep the gimbal clean and avoid contacting with sand and other matters, otherwise the
gimbal activity may be blocked and its performance may be affected.
2) Camera
The camera of aircraft adopts sony CMOS, up to 20 million pixels, and the photographing
distance is from 1 m to infinity.
The camera supports up to 20 million still photos,30 fps, 4K high-definition video recording.
3) Photos and videos saving
A micro SD card slot is set at the bottom of the right side of the aircraft fuselage to install a
micro SD card to store the captured images.
Please use micro SD card with above or UHS-1 rating.
If a SD card is not installed, the video and photos will be saved to the mobile app. In this case,
the video quality is relatively poor, If a SD card is installed in the aircraft, the videos and photos
will be saved to the SD card. In this case, the video quality is much better, the videos and
photos on the SD card can be transferred to the mobile app.
Note：
● The FPV transmission quality and distance varies by different mobile phones and different
environmental situations.
● Please fly the aircraft in an open and undisturbed environment as possible for a better FPV
transmission experience.
● The actual test indicates that the maximum FPV transmission distance approach 6000 meters
in an interference-free environment.
● Do not plug and unplug the micro SD card while the aircraft is on. Inserting or removing the
card during recording or removing the battery with the power on may cause damage to the
memory card and loss of stored data.
● Check the camera settings before shooting with the camera to ensure that the parameters are
correct.
● When using the device to take important images, please take several test shots before actually
shooting to ensure that the device is in proper working condition.
● Stop recording before turning off the aircraft, otherwise the video being recorded will be
corrupted. For the damaged video, please insert the memory card back into the flight and
