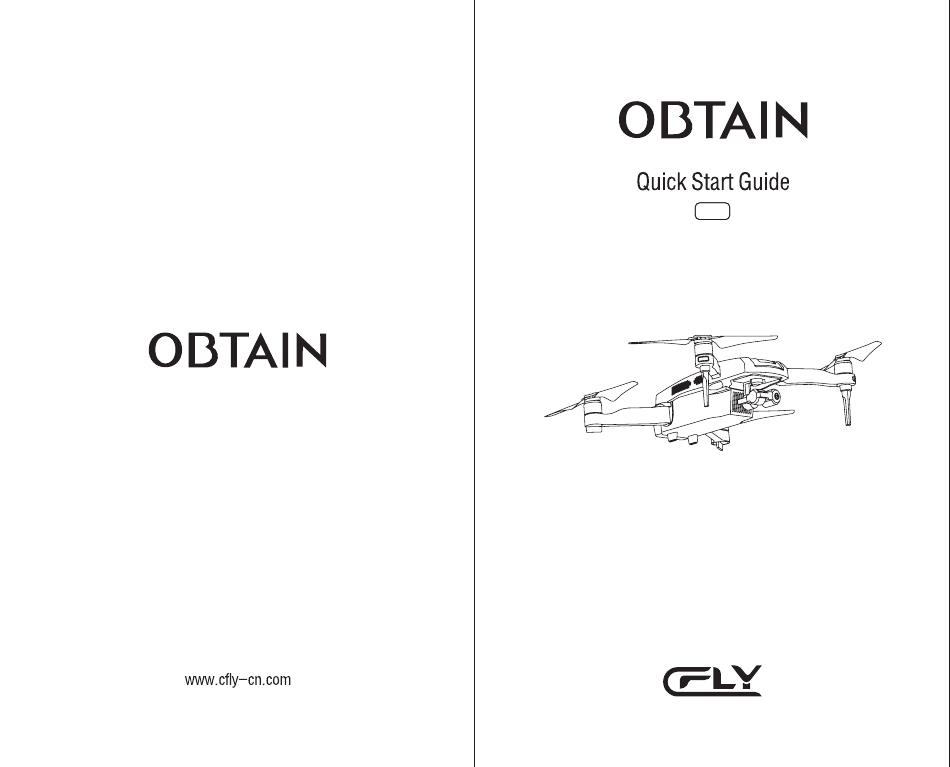

- Page 1 V1.1 V1.1 Printed in China...
- Page 2 Contents FLY SAFE KNOW OBTAIN Aircraft Flight status indicator light explanation Gimbal camera Remote control Download APP Preparation Before flight For the safety of you and others and to avoid loss Prepare Remote Control of property, please read this manual carefully,...
- Page 3 Flight safety conditions OBTAIN which developed by SZ C-FLY Intelligent Technology Co.,Ltd.(OBTAIN) is a flight photography aircraft possess high precision 3-axis gimbal and high full quality camera,intelligent flight mode: Position, Altitude, Route planning, Fly in Open Strong GPS Maintain Line...
- Page 4 Learning the aircraft status indicator can help users to become more familiar with this product. Please Read the "aircraft status indicator light" below. Normal Flight Status Information Light Color Status description Indicator System Self-Test. Solid blue light Solid green light GPS position is locked.
- Page 5 Download APP Standby Switch APP can monitor flight mode of aircraft and image during the course Left Joystick of flight, Scan the QR code below to download and install C-FLY APP Right Joystick when your phone connect to internet. Indicator Light...
- Page 6 Power for the remote control according to the following steps: outlet To avoid potential damage and loss, please use C-FLY or certified batteries and chargers. Please turn off the power of the remote control and put the battery into the remotecontrol.
- Page 7 1).Remove the fixed bracket: In order to avoid damage in the course of transportation,the gimbal installed fixed bracket when product packed,Please must remove fixed bracket before start-up aircraft. Expand the front arm horizontally, as follows: Press fixed bracket on lower end of the bracket lightly, make it out of the gimbal, then remove it to another place Please turn the arm carefully.
- Page 8 3).Outward horizontal rear arm Horizontal outward rear arm to natural state: Outward horizontal rear arm Please must carry out the front and rear arms according to the operating order and method mentioned above, otherwise may cause permanent damage! 4).Unfold and straighten the propeller Turn off standby Switch to “A Mode”...
- Page 9 When the power is on, entering self-inspection, indicator light shows red, when self-inspection is complete, indicator light shows green Dial the switch more than 6 times in 3 seconds Indicator light is The front indicator of the machine converted to the Short-press and then flashes means the aircraft is turned blue and red light...
- Page 10 When Horizontal calibration 1).State description of GPS signal complete, indicator of aircraft a.The indicator of aircraft shows green always on,which means GPS is converted to red and green light alternately display signal is good,and located,changed flight mode to P mode on RC,the aircraft can take off safely.
- Page 11 WLAN Click and select “C-FLY-Controller-xxxxxx” Select network network connection. C-FLY-Controller- xxxxxx Operation description Main menu Using APP in flight can monitor the picture and the current situation of the aircraft in real time. When aircraft controlled by RC while connect APP, the priority control...
- Page 12 Automatically vertical landing Long press “Take off / Land” button Initiate 2-3 seconds, the remote controller sends out the “B-B-B” sound. Left joystick Right joystick Default is mode 2 Long press “Take off / Land” button 2-3 seconds, the remote controller sends out Landing: the “B-B-B”...
- Page 13 A mode (ALTITUDE): Under A mode, NO GPS positioning on aircraft, need skilled operation techniques to operate the aircraft, during flight, the action of the aircraft depends on manual operation. Please use the A mode after the operation of the P mode is fully mastered. P mode (POSITION): The aircraft selects this mode automatically when the GPS signal is good (The aircraft indicator is shown as a...
- Page 14 When the aircraft is landing and the propeller stops , turn off the power of the aircraft first(short press power button,then long press 2-3seconds,),then turn Forward / Backward joystick off the power of RC. Change the radius of the surround gy manipulating the aircraft forward or backward When the flying radius is changed, then...
- Page 15 Remote control settings Wi-Fi: C-FLY-Setting-xxxxx ; 3)、Select C-FLY-Setting-xxxxx and connect: 6)、Change the serial number of the Drone SSID to match the serial number of the drone, xxxxx is part of the C-FLY-Drone-xxxxx and save and exit to complete the binding. 09:59 Enable...
- Page 16 09:59 WLAN Click and select Select network “C-FLY-Drone-xxxxxx” C-FLY-Controller- xxxxxx network connection. Phone need to support 5G Hz Wi-Fi. Operation description Main menu Short-press and then Long-Press 3s Click “START FLYING” Operation interface Flashing blue...
- Page 17 Indicator of aircraft shows flashing blue to flashing green or always green on 3.Compass calibration Click on CALIBRATE Before the first flight, calibrate the compass Click “ ” “compass calibration” , then follow the prompt. Step 1: horizontal calibration Go to general Settings D 30.0 M...
- Page 18 The indicator light turns red when the horizontal calibration passes, and the green light flashes alternately Displayed on the APP Calibrate Success. After changing the flight area, please be sure to calibrate the compass before the first flight. In the process of use, such as the “Blue and green light flashing”, which Displayed on the APP means the compass is abnormal, the compass must be calibrated.
- Page 19 2).The initial mode is “POSITION” Default is the mode 2 Landing: The aircraft light indicates always green light, indicating a good GPS Slow down the throttle, Take off: signal and positioning. and when the aircraft Slowly push the hits the ground, keep The aircraft status indicator green light flashing, means that the GPS throttle up and the throttle Joystick...
- Page 20 4).After launching the aircraft, it can push the left and right virtual Aerial photography tips: joystick to fly the aircraft. (The below Picture is in the left hand 1).Carefully check whether the parts of the aircraft are normal before flight. 2).Try to take photos or videos in GPS Position mode.
- Page 21 The aircraft will target the smart phone and keep the Click “ORBIT MODE”, the original 5m distance to aircraft will rotate by itself follow. at its current position Before using this function, make sure that the flight environment is open and free of obstacles ALTITUDE MODE:(Complete manual mode without GPS) Control the right AT this mode, the aircraft is without GPS, need the skilled operation, in...
- Page 22 The aircraft will fly to the point of the path by itself. Long-Press 3s Please turn off the aircraft power before exiting the C-FLY APP In the APP, click the small map in the bottom left corner, which can bring up the current map/route planning.
- Page 23 Start Route Planing Please ensure that the drone and mobile phone are fully charged, and the flight mode is a Route Plan mode. Click , and read APP pop-up notes. In an appropriate position line on the current map, setting the appropriate Route The Drone will fly as the flight line of the drone.
- Page 24 The Drone will fly according to the planned route D 30.0 M H 10.0 M H.S 10.0 M/S VS 2.0 M/S When Flight, you can click the to drop out the Route Plan Function. When the drone arrive to the last point, it will stop in the current position. When the drone arrive to the last point, it will stop in the current...
