Summary of Contents for C-Fly OBTAIN

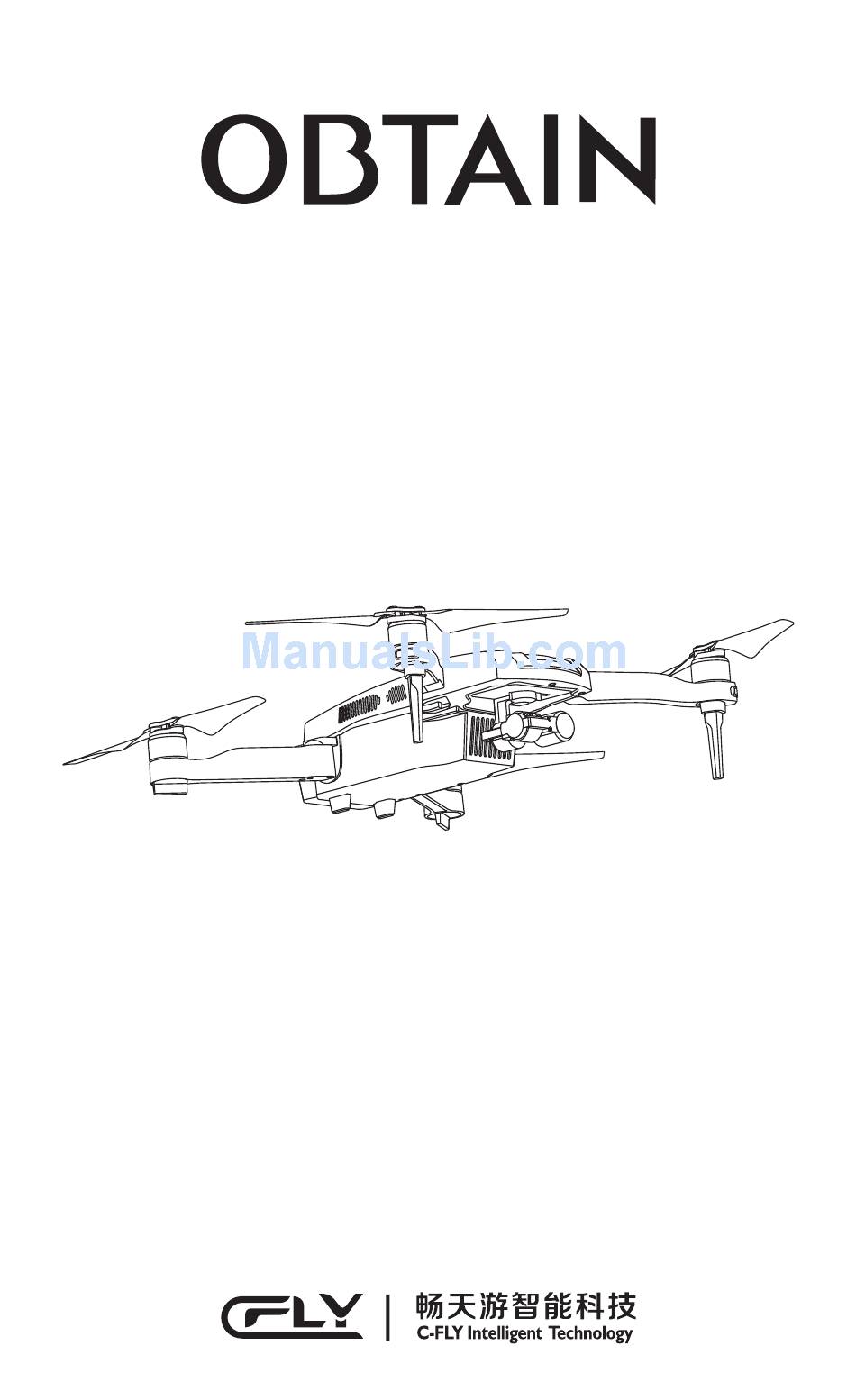

  • Page 1 User manual...

  • Page 2: Table Of Contents

    Contents Aircraft Diagram OBTAIN Open way Remote Controller Diagram Remote Controller Operation Gimbal Specification Aircraft operate Flight preparing Return Flight mode Aircraft indicator light shown...

  • Page 3: Aircraft Diagram

    Aircraft Diagram OBTAIN is a foldable drone with stable camera,possessed flexible flying mode. · Record 1080P video and take 500w Pixel picture,easily to capture complicated shot. · The Maximum flight speed approach 43km/h. · The Maximum flight time approach 26mins.

  • Page 4: Obtain Open Way

    ⑧ Drone head indicator light Propeller Gimbal 4.Electric machinery 5.Intelligent Battery 6.Drone status indicator light 7.Battery capacity light 8.Power Switch OBTAIN Open way All the arms of aircraft are fold on delivery please open the arms as below.
  • Page 5 At first please open the front arms as below shown 2.Second, Make the back arm vertical Straight down rotate 180°, then horizontal spread outside 60°. 180°...
  • Page 6 60° · Must open the front arms before you open the back arms. · The back arm MUST open vertical Straight down rotate 180°, then horizontal spread outside 60°. 3.Spread Propeller Please prepare aircraft by the above steps!!

  • Page 7: Remote Controller Diagram

    Remote Controller Diagram ⑴ ⑴ ⑵ ⑷ ⑶ ⑸ ⑹ ⑹ ⑺ ⑻ ⑼ ⑽ ⑿ ⑾ Antenna 7. Switch of Picture/Video 2. Mobile phone Holder 8. Switch of T ake off/Land 3. Channel reservation 9. Power switch Switch of Flight Mode 10.

  • Page 8: Remote Controller Operation

    Remote Controller Operation Open the smart phone Holder, and adjust the position of antenna, as picture shown. 1.Press the button beside mobile device support to extend 2.Adjust mobile device support to clamp mobile device 3.Connect mobile device and controller with Wifi a.

  • Page 9: Gimbal Specification

    Gimbal Specification Remove the gimbal cover and gimbal clamp from the camera. as below: Gimbal Specification: ② 3-Axis ② ① Camera ②...
  • Page 10 3-Axis gimbal can trun at three directions,make shot easier： Yaw:-45°~45° Pitch: -90°~0° Roll:-30°~30° Do not remove the Micro SD card from the OBTAIN when it is turned on. To ensure the stability of the camera system, single video recordings are capped at 30 minutes.

  • Page 11: Aircraft Operate

    Aircraft operate Flight preparing 1.Insert SD card to SD slot. 2.Make remote controller power switch on. 3.Insert battery to aircraft battery slot.
  • Page 12 4.Put aircraft on the ground 5.Short press once, and then long press 2s for turn off the drone. Make sure capacity of battery is full when you use battery at very first time Before flight,please make sure aircraft on the ground Please leave aircraft immediately when you power aircraft on 5.when the green light on, Show it have GPS, Return Point was setting.
  • Page 13 Or start as the following instruction. 6.After the aircraft fly,you can control aircraft by controller stick. a.P Mode, should be get GPS stable Signal, then you can fly your drone. b .C ontrol aircraft by controller stick. Right joystick Left joystick Forward Throttle/Up Left...

  • Page 14: Return

    Return When the drone fly far away from you or unknown direction, you can press on” Return” switch, and wait for the drone come back to you. When the drone is falling, you can control the Pitch and Rudder-Aileron for safe land. Right joystick Forward Left sideways Fly...

  • Page 15: Flight Mode

    Flight mode S (Fly around the point) Mode：When choose S mode, the aircraft will fly around by itself, Press righr joystick to backward and Widening circle radius, the aircraft will be surround 360 based on widening circle radius.Operation as below: Operation as below: After selecting S mode, the drone rotates by Itself.
  • Page 16 Right joystick Forward Left sideways Fly Right sideways Fly Backward Through the Remote Controller operate the aircraft fly around the point. P Mode( GPS Location) :When choose P mode, GPS signal will give the order to the aircraft, The aircraft will be automatic adjusted by the GPS Signal.

  • Page 17: Aircraft Indicator Light Shown

    Aircraft indicator light shown Front LED indicator light Flight mode indicator light Front LED indicator light Aircraft indicator light shown: The Front LED light just show the direction of aircraft. The red light of aircraft will keep on when it power on. The Back LED Light show the flight status , please follow the below indication light status of flight.
  • Page 18 www.cfly-cn.com...
