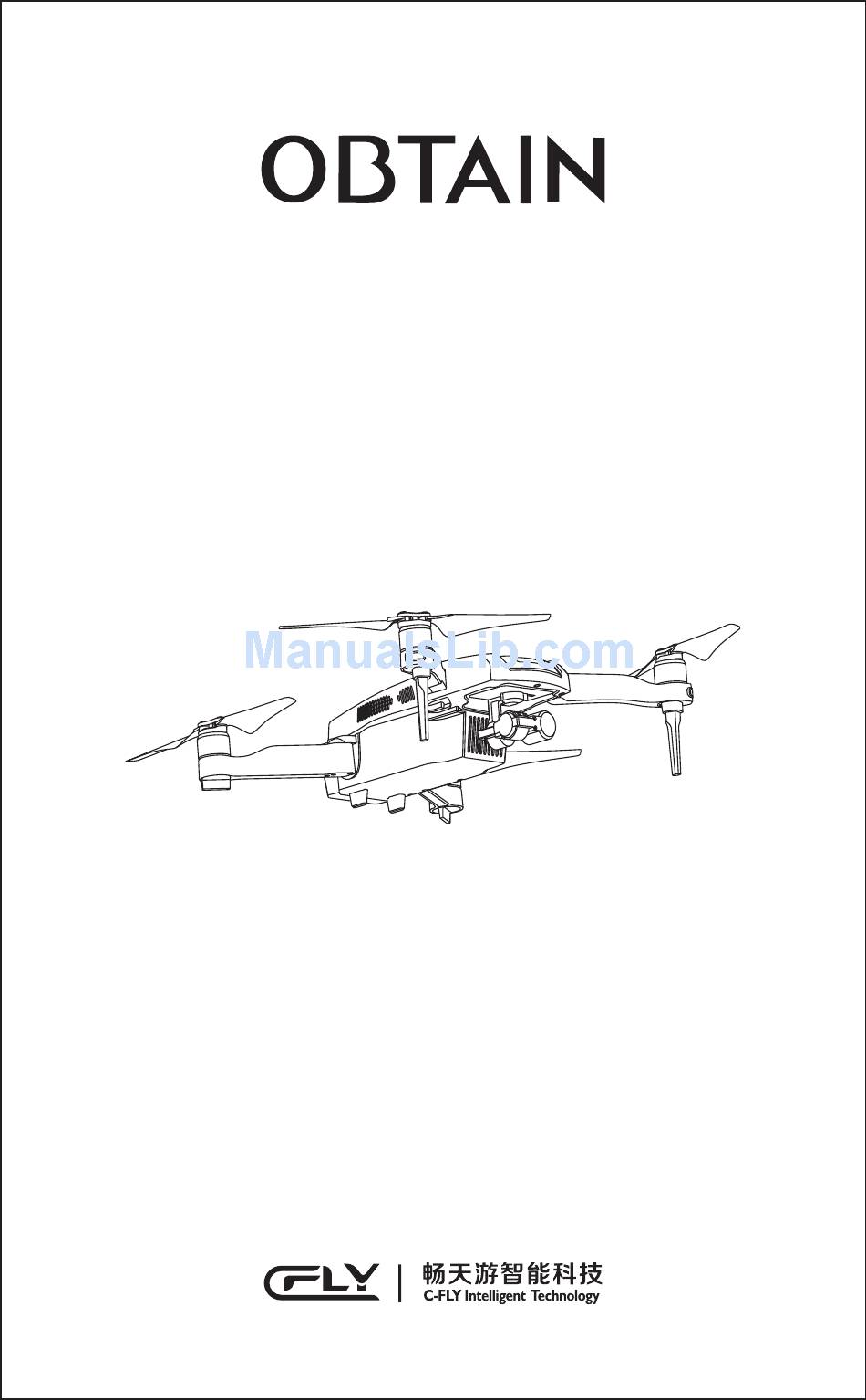

  • Page 1 Quick Start Guide...

  • Page 2: Aircraft Diagram

    Aircraft Diagram OBTAIN is a foldable quadcopter with a stable camera and flexible flight characteristics. With this quadcopter you are able to: •With its 5 Megapixel camera you can take photos and record Full High Definition video at 1080P. It's so easy to capture a complicated shot.

  • Page 3: Remote Controller Diagram

    Remote Controller Diagram ① ① ① ① ② ② ③ ③ ④ ④ ⑥ ⑥ ⑤ ⑤ ⑤ ⑤ ⑦ ⑦ ⑨ ⑨ ⑧ ⑧ Antennas Mobile Device Support Flight Mode Switch Channel Reservation Control Stick Indicator Light ⑩ ⑩ Power Switch Take off / Landing Switch Video / Photo Switch...
  • Page 4 Gimbal Diagram Gimbal Specification: ① Camera ② SD card Slot The 3-Axis gimbal can turn in three directions to make filming and shooting pictures easier: Yaw:-45°~45° Pitch:-90°~0° Roll:-30°~30°...

  • Page 5: Preparation Before Flight

    Preparation before flight Prepare the Battery 1.Check the battery level of the aircraft Check battery level Power indicator Light FULL 2.Charge the Batteries of the aircraft Power outlet Adapter Charger Green light flashing (stand by) Red Normally on (charging) Green Normally on (charge complete）...
  • Page 6 the Batteries Charging of Remote controller Indicator Light Red Light Normally on(On Charging) Green Light Normally on( Charge Complete) Micro USB Please put the battery into remote controller before charging. The Indicator light shows Green when is charge complete. Preparation aircraft All the arms of the aircraft are fold up on delivery, as shown below: 1.
  • Page 7 ° 2. Secondly, rotate the back arms 180 to make the propeller come up as shown 180° ° 3. After that spread the arms 60 , as shown below: 60° · FIRSTLY open the front arms before the back arms. °...

  • Page 8: Prepare Remote Controller

    Put the mobile device in the mobile device support like this. Please use your mobile device to connect C-Fly APP for checking the Real-Time Transmission, And enjoy your flying ,Photo /Video and so on.
  • Page 9 Please install the Gimbal cover after finish your flight. • 2. Insert the Micro SD Card in the SD Card Slot. Do not remove the Micro SD card from the OBTAIN when the · aircraft is turned on. • To ensure the stability of the camera system, video files will be of...
  • Page 10 1. Insert the battery inside the aircraft's battery slot. 2. Put the aircraft on a flat surface. 3.Turn on OBTAIN Remote Controller a.Before Turn on the remote controller, please switch the “ Flight Mode” to “A Mode”“Return switch”,”Channel Reserved” to be remain closed.
  • Page 11 After turn on the switch of controller. The controller will show Green Light. Indicator light shows Green. 4 urn on the power of the aircraft. To switch on the OBTAIN Short-press and then Long-Press the power button 2s to switch off, follow the same process.
  • Page 12 Long-press “Take off/ Landing switch” on the remote for 3S, The sounds of remote Bi-Bi-Bi, The aircraft will automatically take off to 1.2meters. 1.2m 7.After the OBTAIN starts to fly, you can control the aircraft with the control sticks, also can through the button of “ Photo/Video” for shooting. Left joystick...
  • Page 13 Return to Home Function If the OBTAIN flies away or in an unknown direction, you can switch on the Return to Home-function. Just wait for the aircraft to come back. When the aircraft is landing, you can use the rubber controls to land in a safe place.

  • Page 14: Flight Mode

    Flight around one point: mode: When you choose S mode the OBTAIN will fly around one point automatically By moving the right stick of the remote control backward you widen the circle radius The operation is shown below After selecting S-mode, the quadcopter rotates automatically.
  • Page 15 Fly Safe Flight safety conditions 120m Fly in Open Strong GPS Maintain Line Fly Below Areas Signal of Sight 400 feet(120m) Threats to flight precautions Avoid flying over or near obstacles, corwds, high voltage power lines, trees or bodies of water. DO NOT fly near strong electronmagnetic sources such as power lines and base stations it may affect the onboard compass.
  • Page 16 When the power is switched on the lights will be solid Green. The back LED light of the aircraft show the flight status, please read the below table to understand the different colors of the back light. OBTAIN flight status indicator light explanation Normal Flight Status Information: Status description...
  • Page 17 Solid red light charging charge complete Solid green light Download Mobile Device Application Scan the below QR-Code to download the OBTAIN Mobile Device Application for your phone Android More information on OBTAIN and all our other products you will find on: http://www.cfly-cn.com...
