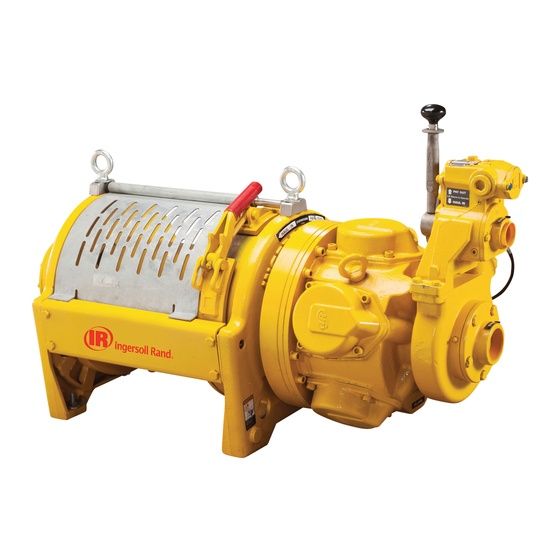

Ingersoll-Rand force 5 FA2 Parts, Operation And Maintenance Manual

IMPORTANT INFORMATION:
• A copy of our "Safe Operating Practices" Manuals are always available free of charge either by downloading it from our
Technical Publications website @ www.airwinch.com or by contacting the Factory at (800) 866-5457 for North America and
(206) 624-0466 for International. The Safe Operating Practices manual must be read prior to anyone operating a
Ingersoll-Rand winch or hoist. The manual form numbers are as follows:
"Safe Operating Practices Non-Man Rider™ Winches" Manual, Form No. MHD56250
"Safe Operating Practices for Man Rider™ Winches" Manual, Form No. MHD56251
"Safe Operating Practices for Pneumatic, Hydraulic and Electric Hoists" Manual, Form No. MHD56295
• Available winch options may require additional supplements to the basic winch manual.
• For Man Rider™ winches ensure a copy of the Man Rider™ supplement is made available to the operator prior to winch
operation.
Winch Man Rider Supplements:
™
Model:
FA2, FA2.5,
FH2, FH2.5
FA5
FA10
FA2.5A
FA2B and
HU40A
FH10MR
Fulcrum Electric
LS500HLP/
LS1000HLP
• We strongly recommend that ALL maintenance on Ingersoll-Rand equipment be carried out by personnel certified by
Ingersoll-Rand, or by Ingersoll-Rand Authorized Service Centers.
• Contact the Factory if in doubt about installation, operation, inspection and maintenance instructions.
• Use only Genuine Ingersoll-Rand parts when maintaining or repairing a winch, hoist or any component of a winch or hoist.
• ANSI / ASME recommends that a winch or hoist (or any components of a winch or hoist) that has been repaired be tested
prior to being placed into service:
* Winches - ANSI / ASME B30.7 (BASE MOUNTED DRUM HOISTS) Refer to section 7.2.2 - Testing.
* Hoists - ANSI / ASME B30.16 (OVERHEAD HOISTS - UNDERHUNG) Refer to section 16.2.2 - Testing.
Form MHD56298
Edition 2
November 2004
71441844
© 2004 Ingersoll-Rand Company
Publication No.
MHD56046
MHD56042 and
MHD56220
MHD56252
MHD56236
MHD56207
MHD56212
MHD56277
SAM0004
Get other manuals https://www.bkmanuals.com
Model: Publication No.
LS500RLP SAM0011
LS1000RLP SAM0012
LS150RLP SAM0082
LS150RLP/500/
SAM0115
1000
LS150RLP and
SAM0120
LS150PLP-PH
LS500RLP-E SAM0122
LS150RLP-
SAM0184
DP5M-F
LS150HLP SAM0222
Form MHD56298
